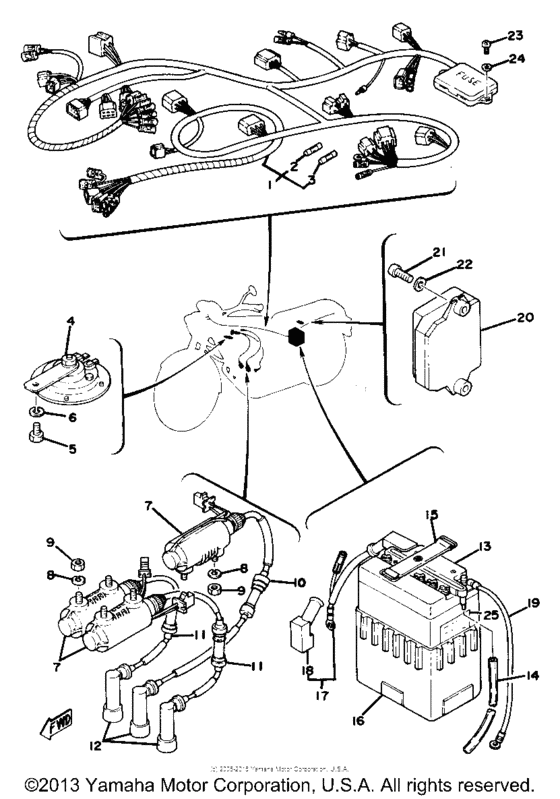

Electrical (1) Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2G2-82590-51-00
Wire Harness Assembly
|
2G2-82590-51-00 |
— | ||
|
2
|
2
1A0-82161-00-00 Fuse (12V-20A) |
1A0-82161-00-00 |
from US $11.96 |
||
|
3
|
3
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
4
|
4
1J7-83371-22-00
Horn
|
1J7-83371-22-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
5
|
5
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
2F3-82310-60-00 Ignition Coil Assy |
2F3-82310-60-00 |
US $213.84 |
||
| replacement | |||||
|
7
|
7
4GR-81958-00-00
Ignition Coil Assy
|
4GR-81958-00-00 |
— | ||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
9
|
9
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
10
|
10
2F3-82341-00-00
Cord, High Tens 1
|
2F3-82341-00-00 |
— | ||
|
11
|
11
2F3-82343-00-00
Cord, High Tens 3
|
2F3-82343-00-00 |
— | ||
|
12
|
12
1J7-82370-00-00 Plug Cap Assembly |
1J7-82370-00-00 |
from US $45.18 |
||
|
13
|
13
BTY-YB14L-A2-00
Yb14La2 Yuasa Batte
44 12V-13AH |
BTY-YB14L-A2-00 |
— | ||
| replacement | |||||
|
13
|
13
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
44 12V-13AH |
YB1-4LA20-00-00 |
— | ||
|
14
|
14
2G2-82112-00-00
Pipe, Breather
|
2G2-82112-00-00 |
— | ||
|
15
|
15
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
15
|
15
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $4.64 |
||
|
16
|
16
447-82122-00-00
Seat, Battery
|
447-82122-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
1J7-82115-00-00
Wire, Plus Lead
|
1J7-82115-00-00 |
— | ||
|
18
|
18
1J7-82119-00-00
Cover, Lead Wire
|
1J7-82119-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
1J7-82116-00-00
Wire, Minus Lead
|
1J7-82116-00-00 |
— | ||
|
20
|
20
2F3-82305-11-00
Ignitor Unit Assembly 1
|
2F3-82305-11-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
21
|
21
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
22
|
22
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
22
|
22
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
23
|
23
90149-059U1-00
Screw, Panhead (97701-50515-00)
97701-50515-00 |
90149-059U1-00 |
— | ||
|
24
|
24
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
24
|
24
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
24
|
24
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
25
|
25
118-82141-09-00
Label, Battery
EXCLUSIVE FOR U.S.A. |
118-82141-09-00 |
— | ||
| replacements | |||||
|
25
|
25
40A-82141-G0-00
Label, Battery
EXCLUSIVE FOR U.S.A. |
40A-82141-G0-00 |
— | ||
|
25
|
25
999-99999-99-00
Not Available
EXCLUSIVE FOR U.S.A. |
999-99999-99-00 |
— | ||
