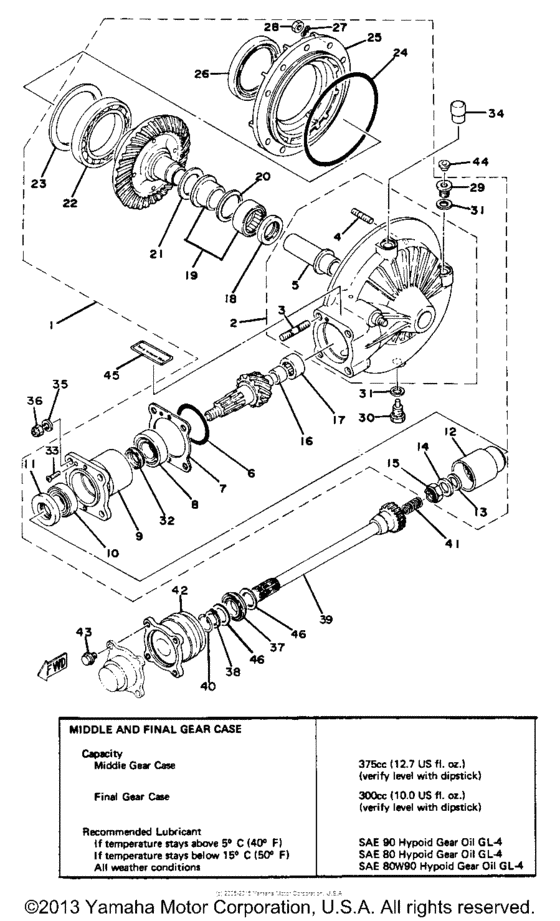

Final drive gear - drive shaft Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1J7-46101-N0-00
Rr Axl Gr Case Assembly
GR CASE ASSEMBLY TYPE II |
1J7-46101-N0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
GR CASE ASSEMBLY TYPE II |
999-99999-99-00 |
— | ||
|
2
|
2
1J7-46150-Y0-00
Housing, Dr Shaft
DR SHAFT |
1J7-46150-Y0-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
DR SHAFT |
999-99999-99-00 |
— | ||
|
3
|
3
90116-10248-00
Bolt, Stud
M10-50L |
90116-10248-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
M10-50L |
999-99999-99-00 |
— | ||
|
4
|
4
90116-08247-00
Bolt, Stud
M8-34L |
90116-08247-00 |
— | ||
|
5
|
5
1J7-46153-Y0-00
Collar, Guide
|
1J7-46153-Y0-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
93210-58346-00 O-Ring |
93210-58346-00 |
from US $5.81 |
||
|
7
|
7
1J7-46127-Y0-30
Shim (0.35T)
0.35T U.R. |
1J7-46127-Y0-30 |
— | ||
|
7
|
7
1J7-46127-Y0-40
Shim (0.40T)
0.40T U.R. |
1J7-46127-Y0-40 |
— | ||
|
7
|
7
1J7-46127-Y0-50
Shim (0.50T)
0.50T U.R. |
1J7-46127-Y0-50 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
0.50T U.R. |
999-99999-99-00 |
— | ||
|
7
|
7
1J7-46127-Y0-45
Shim (0.45T)
0.45T U.R. |
1J7-46127-Y0-45 |
— | ||
| replacements | |||||
|
7
|
7
999-99999-99-00
Not Available
0.45T U.R. |
999-99999-99-00 |
— | ||
|
7
|
7
1J7-46127-Y0-40
Shim (0.40T)
0.45T U.R. |
1J7-46127-Y0-40 |
— | ||
|
8
|
8
93332-00024-00 Bearing |
93332-00024-00 |
from US $45.87 |
||
|
9
|
9
YG4-11006-90-1G
Housing Bear R Dr
DR |
YG4-11006-90-1G |
— | ||
|
9
|
9
1J7-46124-Y0-00
Housing, Bearing
|
1J7-46124-Y0-00 |
— | ||
|
10
|
10
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.53 |
||
|
11
|
11
93101-38086-00
Oil Seal
|
93101-38086-00 |
— | ||
|
12
|
12
YG4-11707-11-0G
Coupling, Gear
|
YG4-11707-11-0G |
— | ||
|
12
|
12
1J7-46123-Y0-00
Coupling, Gear
|
1J7-46123-Y0-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
YG9-00922-14-4G
Spacer Bear 1.0T
1.0T U.R. |
YG9-00922-14-4G |
— | ||
|
13
|
13
YG9-00922-24-4G
Spacer Brng 1.52T
1.52T U.R. |
YG9-00922-24-4G |
— | ||
|
13
|
13
YG9-00922-34-4G
Spacer Brng 1.54T
1.54T U.R. |
YG9-00922-34-4G |
— | ||
|
13
|
13
YG9-00922-44-4G
Spacer Brng 1.56T
1.56T U.R. |
YG9-00922-44-4G |
— | ||
|
13
|
13
YG9-00922-54-4G
Spacer Brng 1.58T
1.58T U.R. TYPE I |
YG9-00922-54-4G |
— | ||
|
13
|
13
YG9-00922-64-4G
Spacer Brng 1.6T
1.6T U.R. |
YG9-00922-64-4G |
— | ||
|
13
|
13
YG9-00922-74-4G
Spacer Brng 1.7T
1.7T U.R. |
YG9-00922-74-4G |
— | ||
|
13
|
13
YG9-00922-84-4G
Spacer Brng 1.8T
1.8T U.R. |
YG9-00922-84-4G |
— | ||
|
13
|
13
YG9-00922-94-4G
Spacer Brng 1.9T
1.9T U.R. |
YG9-00922-94-4G |
— | ||
|
14
|
14
90201-14632-00 Washer, Plate |
90201-14632-00 |
from US $7.37 |
||
|
15
|
15
90185-14070-00 Nut, Self-Locking (1J7)M14-P1.5 |
90185-14070-00 |
from US $9.49 |
||
|
16
|
16
1J7-46122-Y0-00
Race, Inner
|
1J7-46122-Y0-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
93317-41510-00 Bearing Assy |
93317-41510-00 |
from US $28.76 |
||
| replacement | |||||
|
17
|
17
2H7-46102-00-00 Bearing Assy |
2H7-46102-00-00 |
from US $28.76 |
||
|
18
|
18
93101-30084-00 Oil Seal |
93101-30084-00 |
from US $9.35 |
||
|
19
|
19
1J7-46106-N0-00
Bearing Assembly
|
1J7-46106-N0-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1J7-46118-Y0-18
Washer, Thrust
|
1J7-46118-Y0-18 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1J7-46118-Y0-19
Washer, Thrust
|
1J7-46118-Y0-19 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1J7-46118-Y0-20
Washer, Thrust
|
1J7-46118-Y0-20 |
— | ||
|
20
|
20
1J7-46118-Y0-21
Washer, Thrust
|
1J7-46118-Y0-21 |
— | ||
|
21
|
21
1J7-46119-Y0-10
Shim, Thrust
|
1J7-46119-Y0-10 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
1J7-46119-Y0-20
Shim, Thrust
|
1J7-46119-Y0-20 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
1J7-46117-Y0-30 Shim, Ring Gear (0.30T)0.30T U.R. |
1J7-46117-Y0-30 |
from US $4.53 |
||
|
23
|
23
1J7-46117-Y0-35 Shim, Ring Gear |
1J7-46117-Y0-35 |
from US $2.57 |
||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
1J7-46117-Y0-40 Shim, Ring Gear (0.40T)0.40T U.R. |
1J7-46117-Y0-40 |
from US $4.53 |
||
|
23
|
23
1J7-46117-Y0-50 Shim, Ring Gear (0.50T)0.50T U.R. |
1J7-46117-Y0-50 |
from US $4.53 |
||
|
23
|
23
93316-01402-00
Bearing, Cylinder.#16
|
93316-01402-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
YG9-00928-64-4G
Shim Ring Gr 0.55T
GR 0.55T U.R. |
YG9-00928-64-4G |
— | ||
|
24
|
24
93211-44348-00 O-Ring |
93211-44348-00 |
from US $13.74 |
||
|
25
|
25
1J7-46152-Y0-00
Housing, Bearing
|
1J7-46152-Y0-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
93102-70167-00 Oil SealII |
93102-70167-00 |
from US $11.26 |
||
|
27
|
27
92901-08700-00 Washer |
92901-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
92907-08700-00 Washer |
92907-08700-00 |
from US $0.52 |
||
|
28
|
28
953-33086-00-00 NutM8-P1.25 |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
997-80086-00-00 Nut, HexM8-P1.25 |
997-80086-00-00 |
from US $1.59 |
||
|
29
|
29
90340-14046-00 Plug, Straight Screw |
90340-14046-00 |
from US $4.53 |
||
| replacement | |||||
|
29
|
29
90340-14002-00 Plug, Straight Screw |
90340-14002-00 |
from US $3.64 |
||
|
30
|
30
90340-14118-00 Plug, Straight Screw |
90340-14118-00 |
US $12.67 |
||
| replacements | |||||
|
30
|
30
90340-14004-00 Plug, Straight Screw |
90340-14004-00 |
from US $9.07 |
||
|
30
|
30
3JL-13455-00-00 Plug, Straight Screw |
3JL-13455-00-00 |
US $41.89 |
||
|
31
|
31
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
32
|
32
1J7-46129-Y1-00 Spacer, Expansion |
1J7-46129-Y1-00 |
from US $13.32 |
||
|
33
|
33
98703-05018-00
Screw, Flat Head (98701-05018
98701-05018 TYPE II |
98703-05018-00 |
— | ||
|
34
|
34
2H7-17590-00-00 Breather Comp |
2H7-17590-00-00 |
from US $16.29 |
||
|
35
|
35
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
36
|
36
95611-10100-00 Nut, U |
95611-10100-00 |
from US $4.68 |
||
| replacement | |||||
|
36
|
36
95614-10100-00 Nut, U |
95614-10100-00 |
from US $4.68 |
||
|
37
|
37
93108-27006-00
Oil Seal, Oso-Type
|
93108-27006-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.56 |
||
|
39
|
39
1J7-46172-01-00
Shaft, Drive
|
1J7-46172-01-00 |
— | ||
|
40
|
40
90468-14067-00
Clip
|
90468-14067-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
90501-18442-00
Spring, Compression
|
90501-18442-00 |
— | ||
|
42
|
42
999-99014-53-00
Ball Joint
|
999-99014-53-00 |
— | ||
|
43
|
43
90105-08155-00 Bolt, Flange |
90105-08155-00 |
from US $3.68 |
||
| replacements | |||||
|
43
|
43
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
43
|
43
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
44
|
44
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
45
|
45
1J7-46181-11-00
Label, Oil Caution
|
1J7-46181-11-00 |
— | ||
|
46
|
46
90201-27623-00
Washer, Plate
|
90201-27623-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
