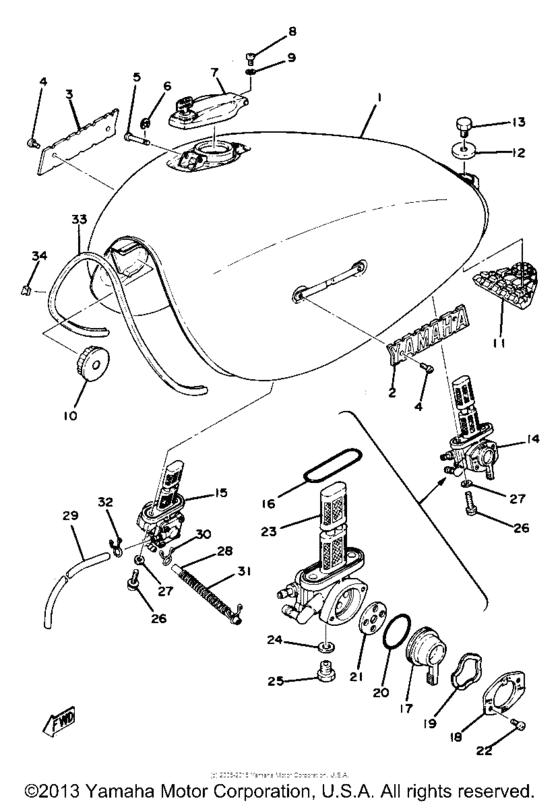

Fuel tank Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2G2-24110-01-H9
Fuel Tank
|
2G2-24110-01-H9 |
— | ||
|
1
|
1
2G2-24110-01-H6
Fuel Tank
|
2G2-24110-01-H6 |
— | ||
|
2
|
2
2G2-24161-00-00
Emblem 1
|
2G2-24161-00-00 |
— | ||
|
3
|
3
2G2-24162-00-00
Emblem 2
|
2G2-24162-00-00 |
— | ||
|
4
|
4
90152-04006-00 Screw, Countersunk |
90152-04006-00 |
from US $2.27 |
||
|
5
|
5
90249-03123-00
Pin, Special Shape
|
90249-03123-00 |
— | ||
|
6
|
6
93430-02001-00 Circlip |
93430-02001-00 |
from US $1.84 |
||
|
7
|
7
4R0-24602-01-00
Cap Assembly
|
4R0-24602-01-00 |
— | ||
|
8
|
8
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
8
|
8
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
1J7-24181-01-00
Damper, Locating 1
|
1J7-24181-01-00 |
— | ||
|
11
|
11
1J7-24182-01-00 Damper, Locating 2 |
1J7-24182-01-00 |
from US $18.28 |
||
|
12
|
12
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
12
|
12
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
13
|
13
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $2.09 |
||
| replacements | |||||
|
13
|
13
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
13
|
13
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
14
|
14
90445-10137-00 Hose |
90445-10137-00 |
from US $6.52 |
||
| replacement | |||||
|
14
|
14
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $4.64 |
||
|
14
|
14
2G2-24500-05-00
Fuel Cock Assembly 1
|
2G2-24500-05-00 |
— | ||
|
15
|
15
90445-10137-00 Hose |
90445-10137-00 |
from US $6.52 |
||
| replacement | |||||
|
15
|
15
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $4.64 |
||
|
15
|
15
2G2-24510-05-00
Fuel Cock Assembly 2
|
2G2-24510-05-00 |
— | ||
|
16
|
16
2G2-24512-00-00 Gasket |
2G2-24512-00-00 |
from US $12.17 |
||
|
17
|
17
2G2-24524-00-00
Lever, Cock
|
2G2-24524-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2G2-24524-10-00
Lever, Cock
|
2G2-24524-10-00 |
— | ||
|
18
|
18
2G2-24525-00-00
Plate, Lvr Fitting
|
2G2-24525-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
2G2-24525-10-00
Plate, Lvr Fitting
|
2G2-24525-10-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
16G-24518-00-00
Washer, Wave
|
16G-24518-00-00 |
— | ||
|
20
|
20
2G2-24534-00-00 Seal, Cock |
2G2-24534-00-00 |
from US $10.64 |
||
|
21
|
21
16G-24523-00-00 Valve |
16G-24523-00-00 |
from US $15.02 |
||
|
22
|
22
986-01030-10-00
Screw, Oval Head
|
986-01030-10-00 |
— | ||
|
24
|
24
2G2-24522-00-00 Gasket |
2G2-24522-00-00 |
from US $2.98 |
||
|
25
|
25
2G2-24543-00-00
Plug, Drain
|
2G2-24543-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90149-06008-00 Screw |
90149-06008-00 |
from US $1.70 |
||
|
27
|
27
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
28
|
28
90445-10133-00 Hose (L135) |
90445-10133-00 |
from US $6.52 |
||
| replacement | |||||
|
28
|
28
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $4.64 |
||
|
29
|
29
90445-07176-00 Hose (L200) |
90445-07176-00 |
from US $1.82 |
||
| replacement | |||||
|
29
|
29
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
30
|
30
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
30
|
30
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
31
|
31
90504-06023-00
Spring, Compression
|
90504-06023-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
33
|
33
2G2-24189-00-00
Plate, Mold
|
2G2-24189-00-00 |
— | ||
|
34
|
34
90468-03063-00
Clip
|
90468-03063-00 |
— | ||
