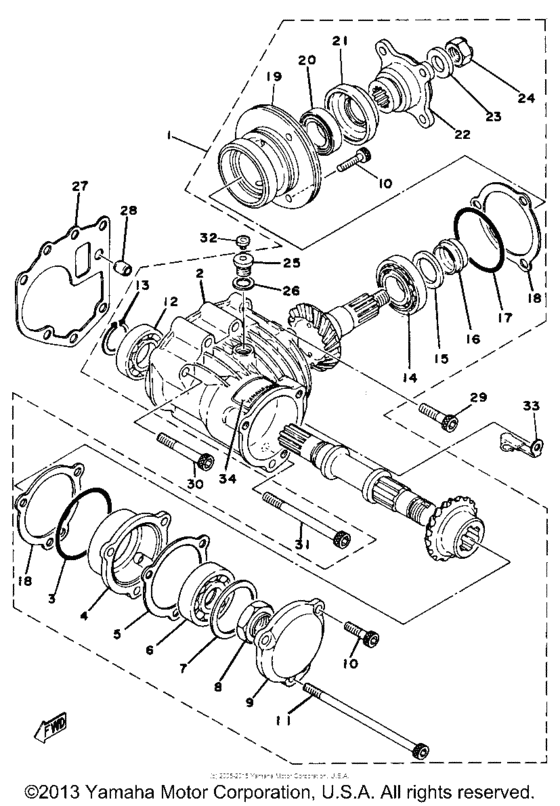

Middle drive gear Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2G2-17501-N1-00
Middle Gr Case Assembly
GR CASE ASSEMBLY |
2G2-17501-N1-00 |
— | ||
|
2
|
2
932-10713-60-00 O-Ring |
932-10713-60-00 |
from US $6.09 |
||
|
2
|
2
999-99010-14-00
Housing Mid Gear
|
999-99010-14-00 |
— | ||
|
2
|
2
1J7-17551-Y1-00
Housing, Bearing
|
1J7-17551-Y1-00 |
— | ||
|
2
|
2
90201-08675-00 Washer, Plate |
90201-08675-00 |
from US $1.35 |
||
| replacement | |||||
|
2
|
2
90201-086J0-00 Washer, Plate |
90201-086J0-00 |
from US $1.35 |
||
|
2
|
2
2H7-17511-00-00
Housing, Middle Gr
GR |
2H7-17511-00-00 |
— | ||
|
3
|
3
93210-68347-00 O-Ring |
93210-68347-00 |
from US $7.79 |
||
|
4
|
4
2H7-17521-00-00
Housing, Bearing
|
2H7-17521-00-00 |
— | ||
|
5
|
5
1J7-17519-Y0-00
Gasket,housing Cap
|
1J7-17519-Y0-00 |
— | ||
| replacement | |||||
|
5
|
5
1J7-17519-10-00
Gasket, Housing Cap
|
1J7-17519-10-00 |
— | ||
|
6
|
6
933-06305-33-00 Bearing |
933-06305-33-00 |
from US $83.45 |
||
|
7
|
7
1J7-17537-Y0-30 Shim, Thrust (0.30T)0.30T U.R. |
1J7-17537-Y0-30 |
from US $4.39 |
||
|
7
|
7
1J7-17537-Y0-40 Shim, Thrust (0.40T)0.40T U.R. |
1J7-17537-Y0-40 |
from US $4.39 |
||
|
7
|
7
1J7-17537-Y0-50 Shim, Thrust (0.50T)0.50T U.R. |
1J7-17537-Y0-50 |
from US $4.39 |
||
|
8
|
8
90179-24230-00
Nut, Spec''l Shape
|
90179-24230-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
2H7-17538-00-00
Cap, Housing
|
2H7-17538-00-00 |
— | ||
|
10
|
10
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
10
|
10
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
11
|
11
91316-08160-00
Bolt, Socket Head
|
91316-08160-00 |
— | ||
| replacements | |||||
|
11
|
11
913-17081-60-00
Bolt
|
913-17081-60-00 |
— | ||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
13
|
13
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
14
|
14
93332-00022-00
Bearing
|
93332-00022-00 |
— | ||
|
15
|
15
90201-25634-00 Washer, Plate |
90201-25634-00 |
from US $8.64 |
||
|
16
|
16
1J7-17571-Y0-00
Spacer, Expansion
|
1J7-17571-Y0-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
93210-68347-00 O-Ring |
93210-68347-00 |
from US $7.79 |
||
|
18
|
18
1J7-17531-Y0-15
Shim, Pinion
2G2-17511-01-00 |
1J7-17531-Y0-15 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
2G2-17511-01-00 |
999-99999-99-00 |
— | ||
|
18
|
18
2H7-17531-00-15
Shim, Pinion
99999-01014-00 |
2H7-17531-00-15 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
99999-01014-00 |
999-99999-99-00 |
— | ||
|
19
|
19
1J7-17551-Y0-00
Housing, Bearing
|
1J7-17551-Y0-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.53 |
||
|
21
|
21
93101-35085-00 Oil Seal |
93101-35085-00 |
from US $17.14 |
||
|
22
|
22
1J7-17555-Y0-00
Flange, Middle Gear
|
1J7-17555-Y0-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90201-14633-00 Washer, Plate |
90201-14633-00 |
from US $7.65 |
||
|
24
|
24
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
|
25
|
25
90340-14046-00 Plug, Straight Screw |
90340-14046-00 |
from US $4.53 |
||
| replacement | |||||
|
25
|
25
90340-14002-00 Plug, Straight Screw |
90340-14002-00 |
from US $3.64 |
||
|
26
|
26
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
27
|
27
1J7-17518-00-00
Gasket,mdl Gr Case
GR CASE |
1J7-17518-00-00 |
— | ||
| replacement | |||||
|
27
|
27
1J7-17518-10-00
Gasket, Middle Gear Case
GR CASE |
1J7-17518-10-00 |
— | ||
|
28
|
28
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
28
|
28
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
28
|
28
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
29
|
29
91316-08035-00 Bolt |
91316-08035-00 |
from US $1.84 |
||
| replacement | |||||
|
29
|
29
91317-08035-00 Bolt |
91317-08035-00 |
from US $1.84 |
||
|
30
|
30
91316-08060-00 Bolt,socket HeadBolt,hexagon socket head |
91316-08060-00 |
from US $5.10 |
||
| replacement | |||||
|
30
|
30
91317-08060-00 Bolt, Socket |
91317-08060-00 |
from US $5.10 |
||
|
31
|
31
91316-08100-00
Bolt, Socket Head
|
91316-08100-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.55 |
||
|
33
|
33
90465-10137-00
Clamp
|
90465-10137-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
1J7-46181-11-00
Label, Oil Caution
|
1J7-46181-11-00 |
— | ||
