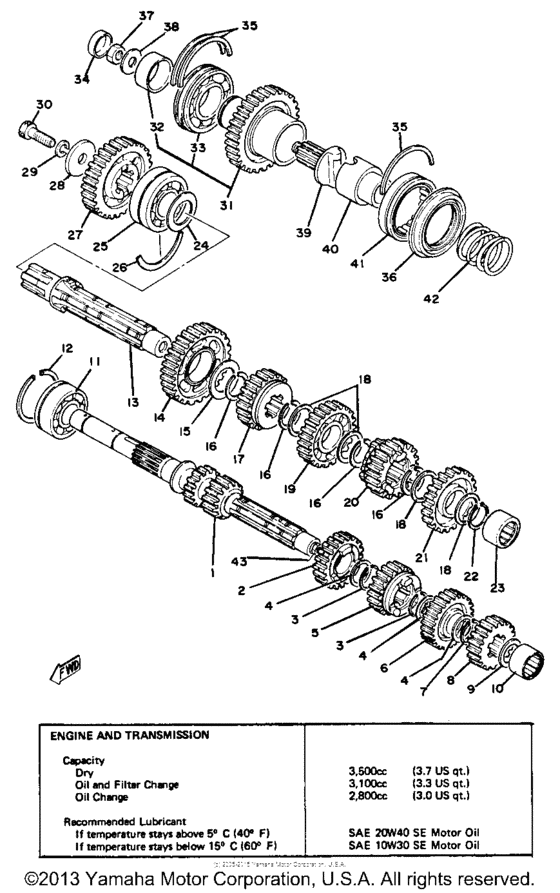

Transmission Diagram Yamaha XS750
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 750
- Model
- XS750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1J7-17411-02-00
Axle, Main
|
1J7-17411-02-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
1J7-17141-01-00
Gear, 4Th Pinion
4TH PINION |
1J7-17141-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
4TH PINION |
999-99999-99-00 |
— | ||
|
3
|
3
93440-25020-00 Circlip |
93440-25020-00 |
from US $1.70 |
||
|
4
|
4
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
5
|
5
1J7-17131-01-00
Gear, 3Rd Pinion
3RD PINION |
1J7-17131-01-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
3RD PINION |
999-99999-99-00 |
— | ||
|
6
|
6
1J7-17151-04-00
Gear, 5Th Pinion
5TH PINION |
1J7-17151-04-00 |
— | ||
|
7
|
7
93410-25017-00 Circlip |
93410-25017-00 |
from US $2.32 |
||
|
8
|
8
256-17121-01-00
Gear, 2Nd Pinion (17T)
2ND PINION |
256-17121-01-00 |
— | ||
|
9
|
9
137-17427-00-09
Shim 1
|
137-17427-00-09 |
— | ||
|
10
|
10
93311-32024-00
Bearing, Cylinder.#11
|
93311-32024-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
93305-20504-00 Bearing |
93305-20504-00 |
from US $92.84 |
||
| replacement | |||||
|
11
|
11
933-05205-09-00 Bearing |
933-05205-09-00 |
from US $92.84 |
||
|
12
|
12
93440-52014-00 Circlip |
93440-52014-00 |
from US $6.94 |
||
|
13
|
13
1J7-17421-03-00
Axle, Drive
|
1J7-17421-03-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1J7-17211-02-00
Gear, 1St Wheel
1ST WHEEL |
1J7-17211-02-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
1ST WHEEL |
999-99999-99-00 |
— | ||
|
15
|
15
90201-30602-00
Washer, Plate
|
90201-30602-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
934-40300-15-00
Circlip, Outer
|
934-40300-15-00 |
— | ||
|
17
|
17
1J7-17241-03-00
Gear, 4Th Wheel
4TH WHEEL |
1J7-17241-03-00 |
— | ||
|
18
|
18
1J7-17219-00-10
Shim
|
1J7-17219-00-10 |
— | ||
|
18
|
18
1J7-17219-00-12
Shim
|
1J7-17219-00-12 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
1J7-17231-03-00
Gear, 3Rd Wheel
3RD WHEEL |
1J7-17231-03-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
3RD WHEEL |
999-99999-99-00 |
— | ||
|
20
|
20
1J7-17251-03-00
Gear, 5Th Wheel
5TH WHEEL |
1J7-17251-03-00 |
— | ||
|
21
|
21
1J7-17221-03-00
Gear, 2Nd Wheel
2ND WHEEL |
1J7-17221-03-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
2ND WHEEL |
999-99999-99-00 |
— | ||
|
22
|
22
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
23
|
23
93311-32425-00
Bearing, Cylinder.#11
|
93311-32425-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
90201-30602-00
Washer, Plate
|
90201-30602-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
933-05206-03-00
Bearing
|
933-05206-03-00 |
— | ||
|
26
|
26
93440-62046-00
Circlip, Outer
|
93440-62046-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
2G2-17582-00-00
Gear, Middle Drive
|
2G2-17582-00-00 |
— | ||
|
28
|
28
90201-10595-00
Washer, Plate
|
90201-10595-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
30
|
30
91316-10030-00 Bolt |
91316-10030-00 |
from US $4.25 |
||
| replacement | |||||
|
30
|
30
91317-10030-00 Bolt, Socket |
91317-10030-00 |
from US $4.25 |
||
|
31
|
31
2F3-W1758-00-00
Middle Driven Gear
|
2F3-W1758-00-00 |
— | ||
|
32
|
32
903-87355-44-00
Collar
|
903-87355-44-00 |
— | ||
|
33
|
33
93306-20705-00 BearingBearing (b6207n) |
93306-20705-00 |
from US $23.07 |
||
|
34
|
34
90331-30014-00
Plug, Tight
|
90331-30014-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
93440-72049-00 Circlip |
93440-72049-00 |
from US $7.37 |
||
|
36
|
36
93103-50103-00
Oil Seal, Sw-Type
|
93103-50103-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
93103-50103-00
Oil Seal, Sw-Type
|
93103-50103-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
90201-12622-00
Washer, Plate
|
90201-12622-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
1J7-17526-00-00
Cam, Drive
|
1J7-17526-00-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
1J7-17527-00-00
Cam, Driven
|
1J7-17527-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
93390-00014-00
Bearing, Cylinder. #90
|
93390-00014-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
90501-40467-00
Spring, Compression
|
90501-40467-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
90380-08059-00
Bush, Solid
|
90380-08059-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
