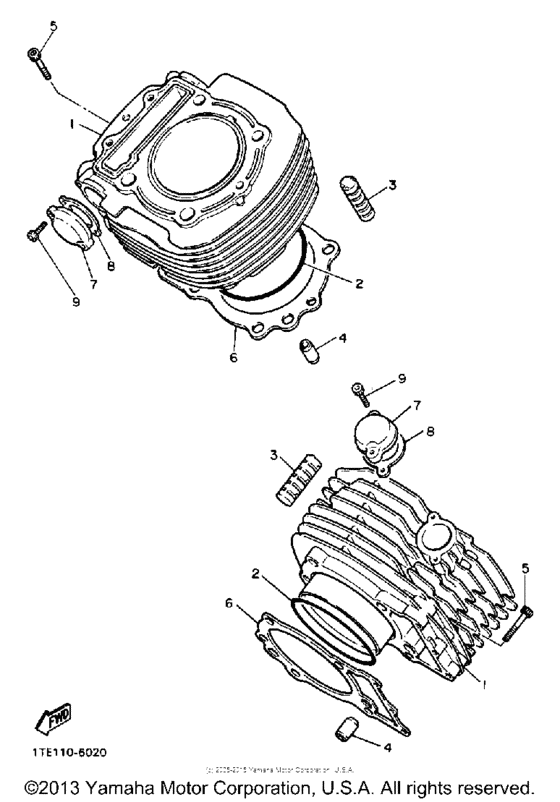

Cylinder Diagram Yamaha XV1100 Virago
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XV1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TA-11310-00-00
Cylinder
|
1TA-11310-00-00 |
— | ||
|
2
|
2
932-11014-67-00 O-Ring |
932-11014-67-00 |
from US $7.08 |
||
|
3
|
3
4X7-11161-00-00
Absorber 3
|
4X7-11161-00-00 |
— | ||
|
4
|
4
90387-087A5-00 Collar |
90387-087A5-00 |
from US $5.10 |
||
|
5
|
5
913-11060-40-00
Bolt, Hexagon Socket Head
|
913-11060-40-00 |
— | ||
| replacement | |||||
|
5
|
5
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.42 |
||
|
6
|
6
3EG-11351-00-00
Gasket, Cylinder
|
3EG-11351-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3EG-11351-01-00 Gasket, Cylinder |
3EG-11351-01-00 |
from US $23.66 |
||
|
7
|
7
4X7-12215-00-00
Cap, Tensioner Case
|
4X7-12215-00-00 |
— | ||
| replacement | |||||
|
7
|
7
4X7-12215-01-00
Cap, Tensioner Case
|
4X7-12215-01-00 |
— | ||
|
8
|
8
4DW-12213-00-00 Gasket, Tensioner Case |
4DW-12213-00-00 |
from US $2.70 |
||
|
9
|
9
91311-06025-00 Bolt, Hexagon Socket Head |
91311-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
