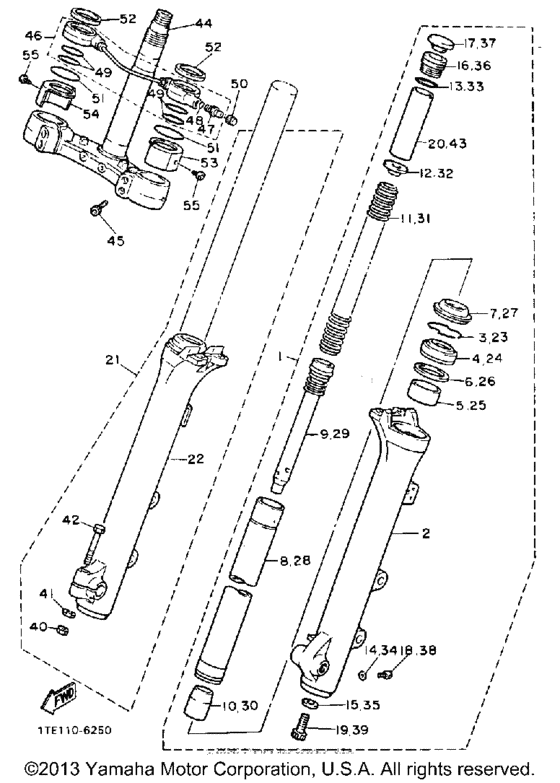

Front fork Diagram Yamaha XV1100 Virago
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3JK-23102-00-00
Front Fork Assembly (L.h)
|
3JK-23102-00-00 |
— | ||
|
2
|
2
42H-23126-01-00
Tube, Outer (Left)
|
42H-23126-01-00 |
— | ||
| replacement | |||||
|
2
|
2
3JK-23126-10-00
Tube, Outer (Left)
|
3JK-23126-10-00 |
— | ||
|
3
|
3
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
4
|
4
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $12.80 |
||
|
5
|
5
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $26.49 |
||
|
6
|
6
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $16.86 |
||
|
7
|
7
42X-23144-01-00 Seal, Dust |
42X-23144-01-00 |
from US $22.81 |
||
|
8
|
8
1TA-23110-00-00 Inner Tube Comp.1 |
1TA-23110-00-00 |
from US $307.37 |
||
|
9
|
9
33M-23170-00-00 Cylinder Comp |
33M-23170-00-00 |
US $210.78 |
||
|
10
|
10
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
11
|
11
3JK-23141-00-00
Spring, Front Fork
|
3JK-23141-00-00 |
— | ||
|
12
|
12
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
13
|
13
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
14
|
14
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
15
|
15
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
16
|
16
31A-23111-31-00 Bolt, Cap |
31A-23111-31-00 |
US $59.54 |
||
|
17
|
17
42H-23168-00-00 Cap, Front Fork |
42H-23168-00-00 |
from US $11.39 |
||
|
18
|
18
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
19
|
19
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
19
|
19
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
20
|
20
3JK-23118-00-00 Spacer |
3JK-23118-00-00 |
US $6.09 |
||
|
21
|
21
3JK-23103-00-00
Front Fork Assembly (R.h)
|
3JK-23103-00-00 |
— | ||
|
22
|
22
42H-23136-01-00
Tube, Outer (Right)
|
42H-23136-01-00 |
— | ||
| replacement | |||||
|
22
|
22
3JK-23136-10-00
Tube, Outer (Right)
|
3JK-23136-10-00 |
— | ||
|
23
|
23
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
24
|
24
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $12.80 |
||
|
25
|
25
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $26.49 |
||
|
26
|
26
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $16.86 |
||
|
27
|
27
42X-23144-01-00 Seal, Dust |
42X-23144-01-00 |
from US $22.81 |
||
|
28
|
28
1TA-23110-00-00 Inner Tube Comp.1 |
1TA-23110-00-00 |
from US $307.37 |
||
|
29
|
29
33M-23170-00-00 Cylinder Comp |
33M-23170-00-00 |
US $210.78 |
||
|
30
|
30
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
31
|
31
3JK-23141-00-00
Spring, Front Fork
|
3JK-23141-00-00 |
— | ||
|
32
|
32
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
33
|
33
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
34
|
34
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
35
|
35
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
36
|
36
31A-23111-31-00 Bolt, Cap |
31A-23111-31-00 |
US $59.54 |
||
|
37
|
37
42H-23168-00-00 Cap, Front Fork |
42H-23168-00-00 |
from US $11.39 |
||
|
38
|
38
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
38
|
38
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
38
|
38
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
39
|
39
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
39
|
39
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
40
|
40
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
40
|
40
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
41
|
41
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
42
|
42
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
43
|
43
3JK-23118-00-00 Spacer |
3JK-23118-00-00 |
US $6.09 |
||
|
44
|
44
2AE-23340-30-00
Under Bracket Comp
|
2AE-23340-30-00 |
— | ||
|
45
|
45
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
45
|
45
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.07 |
||
|
46
|
46
42H-2318J-00-00
Hose Assembly
|
42H-2318J-00-00 |
— | ||
|
47
|
47
42H-2318J-00-00
Hose Assembly
|
42H-2318J-00-00 |
— | ||
|
48
|
48
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
49
|
49
42H-23188-00-00 O-Ring |
42H-23188-00-00 |
from US $5.67 |
||
|
50
|
50
10M-23184-01-00
Cap, Air Valve
|
10M-23184-01-00 |
— | ||
|
51
|
51
42H-23153-00-00
Ring, Snap
|
42H-23153-00-00 |
— | ||
|
52
|
52
2H7-23163-00-00 Gasket (42H-23163-00-00)42H-23163-00-00 |
2H7-23163-00-00 |
from US $6.61 |
||
|
53
|
53
1RM-23132-00-00 Cover, Outer 2 |
1RM-23132-00-00 |
US $34.52 |
||
|
54
|
54
1RM-23132-10-00 Cover, Outer 2 |
1RM-23132-10-00 |
US $34.52 |
||
|
55
|
55
98580-05006-00 Screw, Pan Head |
98580-05006-00 |
from US $1.36 |
||
