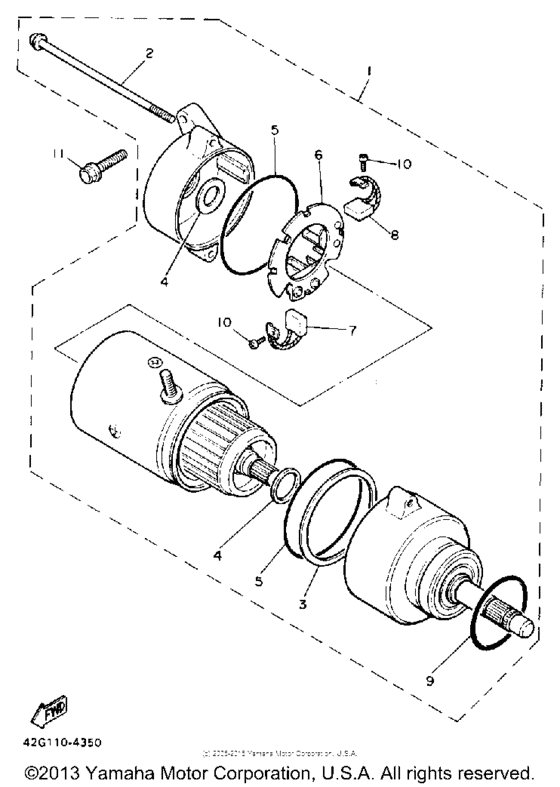

Starting motor Diagram Yamaha XV1100 Virago
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XV1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5A8-81800-10-00
Starting Motor Assembly
|
5A8-81800-10-00 |
— | ||
|
2
|
2
371-81826-20-00
Bolt
|
371-81826-20-00 |
— | ||
|
3
|
3
4X7-81844-60-00
Gasket
|
4X7-81844-60-00 |
— | ||
|
4
|
4
371-81809-20-00
Washer Kit
|
371-81809-20-00 |
— | ||
|
5
|
5
371-81847-20-00
O-Ring
|
371-81847-20-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
1J7-81840-60-00
Brush Holder Assembly
|
1J7-81840-60-00 |
— | ||
|
7
|
7
371-81811-20-00 Brush 1 |
371-81811-20-00 |
from US $26.33 |
||
|
8
|
8
371-81812-20-00 Brush 2 |
371-81812-20-00 |
from US $26.33 |
||
|
9
|
9
1J7-81847-60-00 O-Ring |
1J7-81847-60-00 |
from US $16.58 |
||
|
10
|
10
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
11
|
11
958-11060-25-00
Bolt, Flange
|
958-11060-25-00 |
— | ||
| replacements | |||||
|
11
|
11
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
11
|
11
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
