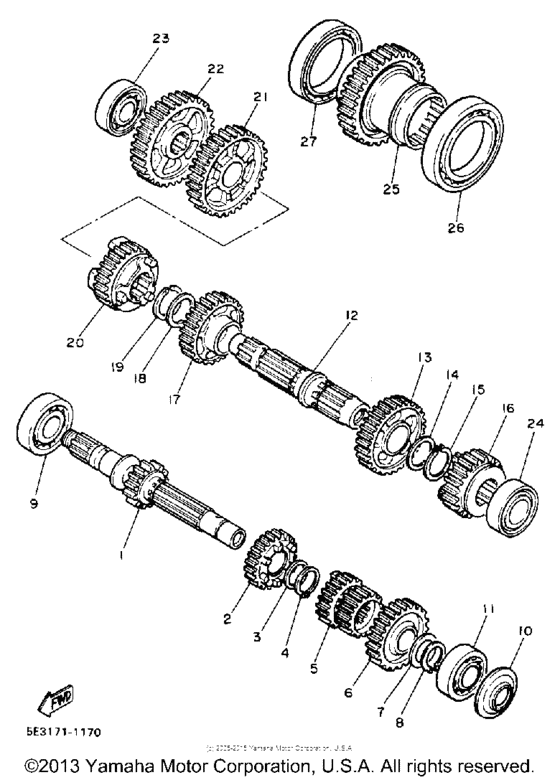

Transmission Diagram Yamaha XV1100 Virago
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TA-17411-00-00
Axle, Main
|
1TA-17411-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4X7-17141-00-00 Gear, 4Th Pinion4TH PINION 31T |
4X7-17141-00-00 |
from US $105.42 |
||
| replacement | |||||
|
2
|
2
5EL-17141-00-00 Gear, 4Th Pinion (31T)4TH PINION 31T |
5EL-17141-00-00 |
from US $105.42 |
||
|
3
|
3
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
4
|
4
93410-25010-00 Circlip |
93410-25010-00 |
from US $1.50 |
||
| replacement | |||||
|
4
|
4
99009-25400-00 Circlip |
99009-25400-00 |
from US $1.56 |
||
|
5
|
5
4X7-17121-00-00 Gear, 2Nd Pinion2ND/3RD PINION 24/28T |
4X7-17121-00-00 |
US $253.60 |
||
|
6
|
6
42X-17151-00-00
Gear, 5Th Pinion
5TH PINION 34T |
42X-17151-00-00 |
— | ||
|
7
|
7
90201-20276-00 Washer, Plate (T=1.0) |
90201-20276-00 |
from US $1.56 |
||
|
8
|
8
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
9
|
9
93306-30525-00 Bearing (B6305) |
93306-30525-00 |
from US $18.84 |
||
|
10
|
10
93104-20068-00 Oil Seal |
93104-20068-00 |
from US $7.08 |
||
|
11
|
11
93306-30424-00 Bearing |
93306-30424-00 |
from US $26.78 |
||
| replacement | |||||
|
11
|
11
933-06304-43-00 Bearing (B6304A3) |
933-06304-43-00 |
from US $20.54 |
||
|
12
|
12
4X7-17402-00-00
Drive Axle Assembly
|
4X7-17402-00-00 |
— | ||
|
13
|
13
4X7-17221-00-00 Gear, 2Nd Wheel2ND WHEEL 40T |
4X7-17221-00-00 |
US $171.76 |
||
|
14
|
14
90209-27192-00 Washer |
90209-27192-00 |
from US $1.84 |
||
|
15
|
15
93440-30077-00 Circlip |
93440-30077-00 |
from US $1.70 |
||
|
16
|
16
42X-17251-00-00
Gear , 5Th Wheel (29T)
5TH WHEEL 29T |
42X-17251-00-00 |
— | ||
|
17
|
17
4X7-17231-00-00 Gear, 3Rd Wheel3RD WHEEL 36T |
4X7-17231-00-00 |
US $171.76 |
||
|
18
|
18
90209-27192-00 Washer |
90209-27192-00 |
from US $1.84 |
||
|
19
|
19
93440-30077-00 Circlip |
93440-30077-00 |
from US $1.70 |
||
|
20
|
20
4X7-17241-00-00 Gear, 4Th Wheel4TH WHEEL 32T |
4X7-17241-00-00 |
US $171.76 |
||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
4TH WHEEL 32T |
999-99999-99-00 |
— | ||
|
21
|
21
1TA-17211-00-00
Gear, 1St Wheel (39T)
1ST WHEEL 39T |
1TA-17211-00-00 |
— | ||
|
22
|
22
23W-17582-00-00
Gear, Middle Drive (46T)
46T |
23W-17582-00-00 |
— | ||
| replacement | |||||
|
22
|
22
4PP-17582-00-00
Gear, Middle Drive (46T)
46T |
4PP-17582-00-00 |
— | ||
|
23
|
23
933-06204-21-00
Bearing
|
933-06204-21-00 |
— | ||
| replacement | |||||
|
23
|
23
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.02 |
||
|
24
|
24
93306-20550-00 Bearing (B6205Du8) |
93306-20550-00 |
from US $22.10 |
||
|
25
|
25
23W-17583-00-00
Gear, Middle Driven (45T)
45T |
23W-17583-00-00 |
— | ||
| replacement | |||||
|
25
|
25
4PP-17583-00-00
Gear, Middle Driven (45T)
45T |
4PP-17583-00-00 |
— | ||
|
26
|
26
93306-01201-00
Bearing
|
93306-01201-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
93306-91201-00 Bearing |
93306-91201-00 |
from US $55.26 |
||
