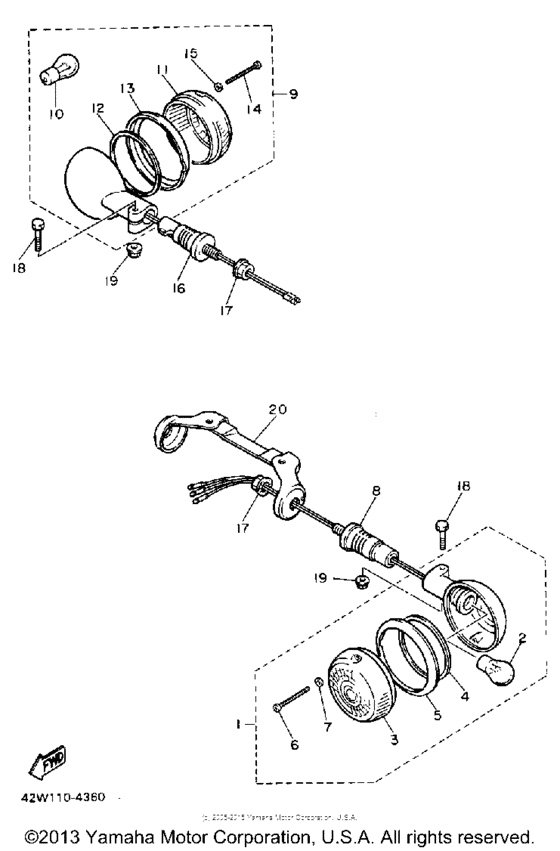

Turnsignal Diagram Yamaha XV1100 Virago
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 1100
- Model
- XV1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42X-83310-K0-00
Front Flasher Light Assy 1
|
42X-83310-K0-00 |
— | ||
| replacements | |||||
|
1
|
1
42X-83310-K1-00 Front Flasher Light Assy 1 |
42X-83310-K1-00 |
from US $64.04 |
||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
from US $4.53 |
||
|
3
|
3
42X-83312-00-00
Lens, Flasher
|
42X-83312-00-00 |
— | ||
| replacement | |||||
|
3
|
3
42X-83312-09-00 Lens, Flasher |
42X-83312-09-00 |
from US $14.60 |
||
|
4
|
4
42X-83313-00-00
Gasket, Flasher Lens
|
42X-83313-00-00 |
— | ||
| replacement | |||||
|
4
|
4
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
5
|
5
42X-83363-00-00
Lens, Rim
|
42X-83363-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
6
|
6
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
6
|
6
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
7
|
7
42X-83359-00-00 Washer, Special |
42X-83359-00-00 |
US $0.85 |
||
| replacement | |||||
|
7
|
7
3AA-84327-00-00 Washer, Special |
3AA-84327-00-00 |
from US $3.97 |
||
|
8
|
8
1AA-83318-00-00 Stay,flasher 1 |
1AA-83318-00-00 |
from US $33.72 |
||
|
9
|
9
1AA-83330-K0-00
Rear Flasher Light Assy 1
|
1AA-83330-K0-00 |
— | ||
| replacement | |||||
|
9
|
9
1AA-83330-K9-00 Rear Flasher Light Assy 1 |
1AA-83330-K9-00 |
from US $64.98 |
||
|
10
|
10
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
11
|
11
42X-83312-00-00
Lens, Flasher
|
42X-83312-00-00 |
— | ||
| replacement | |||||
|
11
|
11
42X-83312-09-00 Lens, Flasher |
42X-83312-09-00 |
from US $14.60 |
||
|
12
|
12
42X-83313-00-00
Gasket, Flasher Lens
|
42X-83313-00-00 |
— | ||
| replacement | |||||
|
12
|
12
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
13
|
13
42X-83363-00-00
Lens, Rim
|
42X-83363-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
14
|
14
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
14
|
14
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
15
|
15
42X-83359-00-00 Washer, Special |
42X-83359-00-00 |
US $0.85 |
||
| replacement | |||||
|
15
|
15
3AA-84327-00-00 Washer, Special |
3AA-84327-00-00 |
from US $3.97 |
||
|
16
|
16
1AA-83318-00-00 Stay,flasher 1 |
1AA-83318-00-00 |
from US $33.72 |
||
|
17
|
17
95706-12500-00 Nut, With Washer |
95706-12500-00 |
US $1.98 |
||
| replacements | |||||
|
17
|
17
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
17
|
17
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $1.98 |
||
|
18
|
18
97003-06030-00 Bolt |
97003-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
19
|
19
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
20
|
20
42X-83328-00-00
Stay, Flasher 2
|
42X-83328-00-00 |
— | ||
