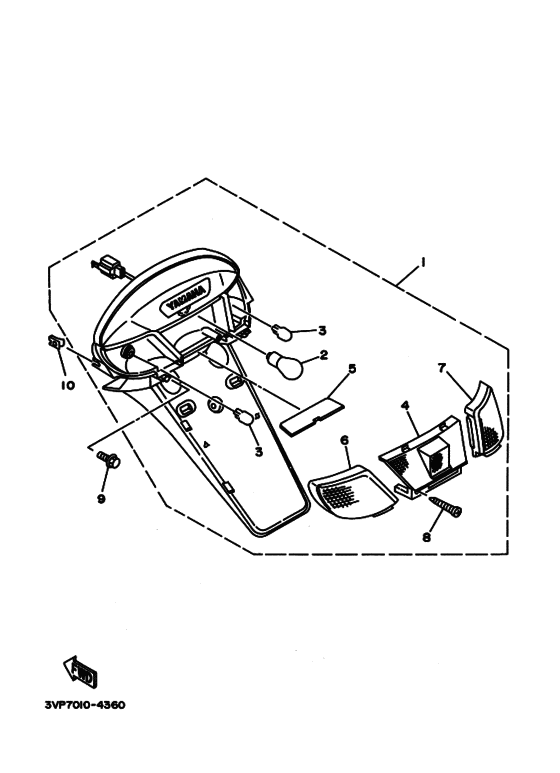

ﾃｰﾙﾗｲﾄ 2 (3VP5,6) Diagram Yamaha YA50 Axis 50 Profoot
- Year
- 1992
- Colour
- Black Metallic 2 (BM2; 0156)
- Model code
- 3VP6
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VP-84700-10-00
Taillight Assy
テールライトアセンブリ; |
3VP-84700-10-00 |
— | ||
|
2
|
2
31L-84714-00-00
Bulb (12V-21/5W)
．バルブ ; １２Ｖ−２１／５Ｗ |
31L-84714-00-00 |
— | ||
| replacements | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)．バルブ ; １２Ｖ−２１／５Ｗ |
1A2-84714-50-00 |
from US $4.96 |
||
|
2
|
2
1A2-84714-41-00
Bulb
．バルブ ; １２Ｖ−２１／５Ｗ |
1A2-84714-41-00 |
— | ||
|
3
|
3
1YT-83311-00-00 Bulb(12V-10W)．バルブ ; １２Ｖ−１０Ｗ |
1YT-83311-00-00 |
from US $3.54 |
||
| replacement | |||||
|
3
|
3
2DP-H4714-00-00 Bulb (12V-10W)．バルブ ; １２Ｖ−１０Ｗ |
2DP-H4714-00-00 |
US $3.54 |
||
|
4
|
4
3VP-84721-00-00
Lens, Taillight
．レンズ，テールライト; |
3VP-84721-00-00 |
— | ||
|
5
|
5
3VP-84743-00-00
Lens, Licence Light
．レンズ，ライセンスライト; |
3VP-84743-00-00 |
— | ||
|
6
|
6
3VP-83332-00-00
Lens, Flasher
．レンズ，フラツシヤ; |
3VP-83332-00-00 |
— | ||
|
7
|
7
3VP-83342-00-00 Lens, Flasher 2．レンズ，フラツシヤ ２; |
3VP-83342-00-00 |
US $18.99 |
||
|
8
|
8
97780-40120-00 Ybs83-420 Screw,panh,tapping．スクリユ，タツピング; |
97780-40120-00 |
from US $1.42 |
||
|
9
|
9
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
9
|
9
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
10
|
10
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
