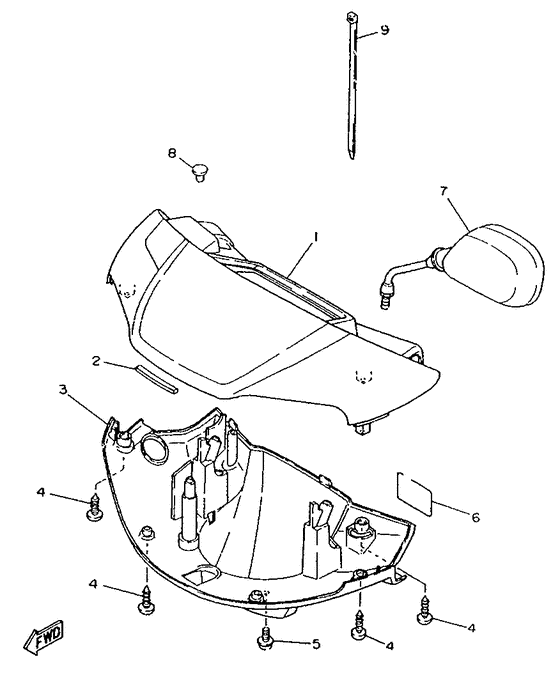

Carenado de faro Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Spanish Dark Green Cocktail 1 (SDGC1; 0479)
- Model code
- 4MJ2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-F6213-00-D2
Cover, Upper
Ur sdgc1 |
4PC-F6213-00-D2 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur sdgc1 |
999-99999-99-00 |
— | ||
|
02
|
02
4MJ-F639G-00-00
Seal
|
4MJ-F639G-00-00 |
— | ||
|
03
|
03
4MJ-F6215-10-00
Cover, Lower
Ur (para frs) gray |
4MJ-F6215-10-00 |
— | ||
|
04
|
04
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
04
|
04
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
04
|
04
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
05
|
05
90159-05121-00 Screw, With Washer |
90159-05121-00 |
from US $2.83 |
||
|
06
|
06
3WG-F415E-01-00
Label, Caution
|
3WG-F415E-01-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
4MJ-F6280-00-00
Rear View Mirror Assy(Left)
|
4MJ-F6280-00-00 |
— | ||
| replacement | |||||
|
07
|
07
4MJ-F6280-10-00
Rear View Mirror Assy(Left)
|
4MJ-F6280-10-00 |
— | ||
|
08
|
08
90338-07818-00
Plug
|
90338-07818-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
90464-13804-00
Clamp
|
90464-13804-00 |
— | ||
