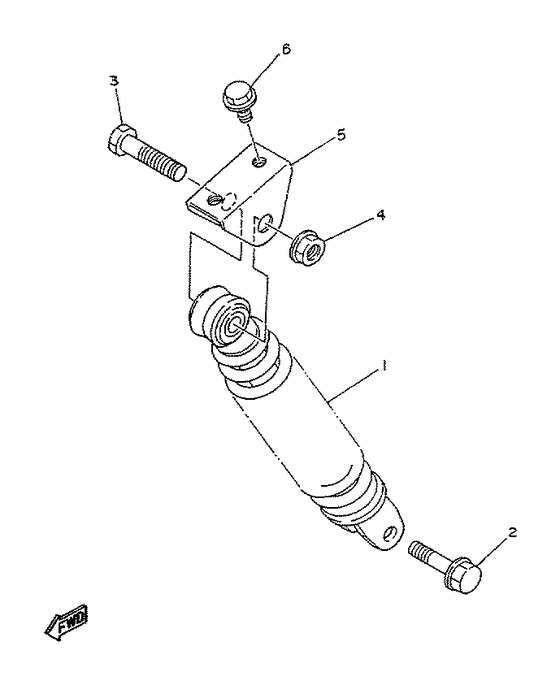

Suspension trasera Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F2210-A0-33
Shock Absorber Assy, Rear
(ur yamaha black) |
4MJ-F2210-A0-33 |
— | ||
| replacement | |||||
|
01
|
01
4MJ-F2210-A1-00
Shock Absorber Assy, Rear
(ur yamaha black) |
4MJ-F2210-A1-00 |
— | ||
|
02
|
02
90105-08121-00 Bolt, Flange |
90105-08121-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
03
|
03
90102-10872-00
Bolt, With Hole
|
90102-10872-00 |
— | ||
|
04
|
04
90185-10822-00
Nut, Self-Locking
|
90185-10822-00 |
— | ||
| replacement | |||||
|
04
|
04
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
05
|
05
3WG-F1381-00-00
Bracket, Rear Shock Absorber
|
3WG-F1381-00-00 |
— | ||
|
06
|
06
95821-08012-00 Bolt, Flange |
95821-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
