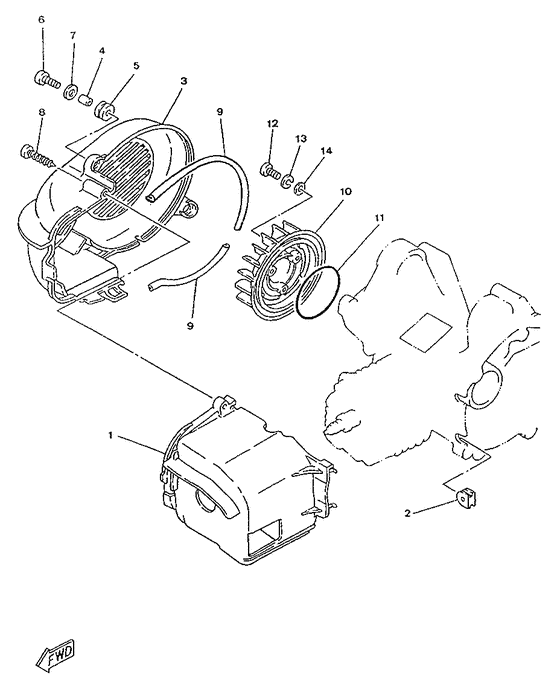

Air shroud & fan Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SJ3
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CU-E2651-00-00
Air Shroud, Cylinder 1
|
4CU-E2651-00-00 |
— | ||
|
02
|
02
90480-10468-00 Grommet |
90480-10468-00 |
from US $2.13 |
||
| replacement | |||||
|
02
|
02
90480-11X03-00
Grommet
|
90480-11X03-00 |
— | ||
|
03
|
03
4CU-E2653-00-00
Air Shroud, Cylinder 3
|
4CU-E2653-00-00 |
— | ||
|
04
|
04
90387-007V1-00
Collar
|
90387-007V1-00 |
— | ||
|
05
|
05
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
06
|
06
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
06
|
06
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
07
|
07
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
08
|
08
97707-60540-00 Screw, Tapping |
97707-60540-00 |
from US $1.70 |
||
|
09
|
09
4CU-E2658-00-00
Damper, Air Shroud 1
|
4CU-E2658-00-00 |
— | ||
|
10
|
10
4MJ-E2611-00-00
Fan
|
4MJ-E2611-00-00 |
— | ||
| replacement | |||||
|
10
|
10
4CU-E2611-00-00
Fan
|
4CU-E2611-00-00 |
— | ||
|
11
|
11
932-10644-88-00
O-Ring
|
932-10644-88-00 |
— | ||
| replacement | |||||
|
11
|
11
93210-65752-00 O-Ring |
93210-65752-00 |
from US $11.92 |
||
|
12
|
12
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
13
|
13
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
