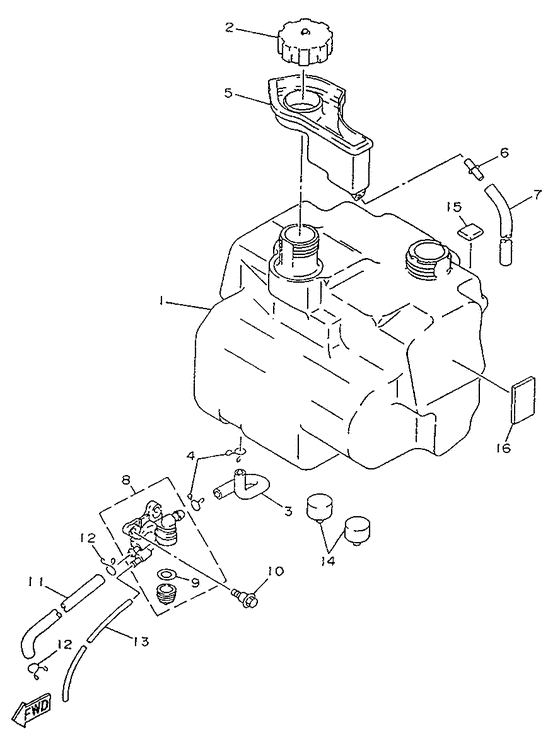

Fuel tank Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SJ3
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F4111-01-00
Fuel Tank
|
4MJ-F4111-01-00 |
— | ||
|
02
|
02
4MJ-F4610-00-00 Cap Assy |
4MJ-F4610-00-00 |
US $67.56 |
||
|
03
|
03
4MJ-F4312-00-00
Pipe 2
|
4MJ-F4312-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
90467-11010-00 Clip(47X) |
90467-11010-00 |
from US $1.28 |
||
| replacement | |||||
|
04
|
04
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
05
|
05
4MJ-F414A-01-00
Cover, Filler
|
4MJ-F414A-01-00 |
— | ||
|
06
|
06
90560-06366-00 Spacer |
90560-06366-00 |
US $1.98 |
||
| replacements | |||||
|
06
|
06
3VL-F4545-00-00
Spacer, Fuel Cock
|
3VL-F4545-00-00 |
— | ||
|
06
|
06
4JP-21753-00-00 Boss, Connector |
4JP-21753-00-00 |
from US $1.98 |
||
|
07
|
07
4MJ-F416A-00-00
Hose
|
4MJ-F416A-00-00 |
— | ||
|
08
|
08
3KJ-24500-01-00 Fuel Cock Assy (1) |
3KJ-24500-01-00 |
from US $66.15 |
||
| replacement | |||||
|
08
|
08
3KJ-24500-02-00 Fuel Cock Assy (1) |
3KJ-24500-02-00 |
from US $84.97 |
||
|
09
|
09
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
09
|
09
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
10
|
10
90109-263F5-00
Bolt
|
90109-263F5-00 |
— | ||
|
11
|
11
4MJ-F4311-00-00
Pipe, Fuel 1
|
4MJ-F4311-00-00 |
— | ||
|
12
|
12
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
12
|
12
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
13
|
13
90445-07434-00 Hose (L310) |
90445-07434-00 |
from US $9.28 |
||
| replacement | |||||
|
13
|
13
904-45072-G8-00 Hose (L310) |
904-45072-G8-00 |
from US $10.91 |
||
|
14
|
14
2JW-F7114-00-00 Stopper, Main Stand |
2JW-F7114-00-00 |
US $7.37 |
||
|
15
|
15
2E9-24182-00-00 Damper, Locating 2 |
2E9-24182-00-00 |
from US $3.40 |
||
|
16
|
16
4MJ-F4183-00-00
Damper, Locating 3
|
4MJ-F4183-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4PC-F117N-00-00
Cover 3
|
4PC-F117N-00-00 |
— | ||
