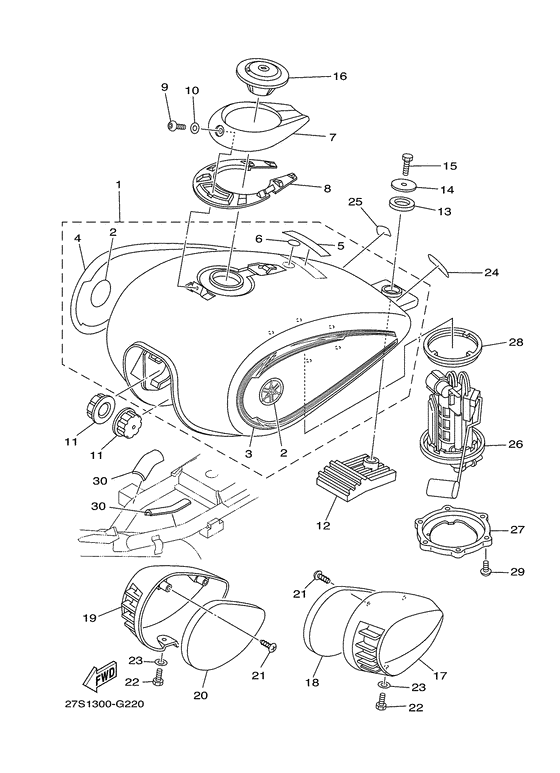

Fuel tank Diagram Yamaha YB125
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 27S1
- Sales region
- Greece (050)
- Engine Capacity
- 125
- Model
- YB125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
27S-W2411-00-P0
Fuel Tank Assy
Ur for smx |
27S-W2411-00-P0 |
— | ||
|
01
|
01
27S-W2411-00-P1
Fuel Tank Assy
Ur for lgm3 |
27S-W2411-00-P1 |
— | ||
|
01
|
01
27S-W2411-00-P2
Fuel Tank Assy
Ur for vrc7 |
27S-W2411-00-P2 |
— | ||
|
02
|
02
2B9-F411B-00-00 Emblem |
2B9-F411B-00-00 |
US $3.12 |
||
|
03
|
03
3S9-F4244-00-00
Graphic, Fuel Tank 1
Ur for lgm3 |
3S9-F4244-00-00 |
— | ||
|
03
|
03
3S9-F4244-10-00
Graphic, Fuel Tank 1
Ur for smx |
3S9-F4244-10-00 |
— | ||
|
03
|
03
3S9-F4244-20-00
Graphic, Fuel Tank 1
Ur for vrc7 |
3S9-F4244-20-00 |
— | ||
|
04
|
04
3S9-F4245-00-00
Graphic, Fuel Tank 2
Ur for lgm3 |
3S9-F4245-00-00 |
— | ||
|
04
|
04
3S9-F4245-10-00
Graphic, Fuel Tank 2
Ur for smx |
3S9-F4245-10-00 |
— | ||
|
04
|
04
3S9-F4245-20-00
Graphic, Fuel Tank 2
Ur for vrc7 |
3S9-F4245-20-00 |
— | ||
|
05
|
05
5PA-21568-01-00 Label, Warning |
5PA-21568-01-00 |
US $1.84 |
||
|
06
|
06
3ME-2415E-01-00 Label, Caution |
3ME-2415E-01-00 |
US $2.98 |
||
|
07
|
07
27S-F4141-00-00
Protector, Fuel Tank
|
27S-F4141-00-00 |
— | ||
| replacements | |||||
|
07
|
07
27S-24141-00-00
Protector, Fuel Tank
|
27S-24141-00-00 |
— | ||
|
07
|
07
27S-F4141-10-00
Protector, Fuel Tank
|
27S-F4141-10-00 |
— | ||
|
08
|
08
27S-F414H-00-00
Damper, Plate 1
|
27S-F414H-00-00 |
— | ||
|
09
|
09
90111-05806-00
Bolt,hex. Socket Button
|
90111-05806-00 |
— | ||
|
10
|
10
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
11
|
11
4FP-F4181-00-00 Damper, Locating 1 |
4FP-F4181-00-00 |
US $7.93 |
||
|
12
|
12
3S9-F4183-00-00
Damper, Locating 3
|
3S9-F4183-00-00 |
— | ||
|
13
|
13
5VL-F4182-00-00 Damper, Locating 2 |
5VL-F4182-00-00 |
US $1.42 |
||
|
14
|
14
90201-088P2-00 Washer, Plate |
90201-088P2-00 |
US $1.42 |
||
|
15
|
15
9700N-08016-00
Bolt
|
9700N-08016-00 |
— | ||
| replacement | |||||
|
15
|
15
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
16
|
16
5VL-F4610-01-00 Cap Assy |
5VL-F4610-01-00 |
US $43.11 |
||
| replacements | |||||
|
16
|
16
5VL-F4602-02-00
Cap assy
|
5VL-F4602-02-00 |
— | ||
|
16
|
16
5VL-F4602-12-00
Cap Assy
|
5VL-F4602-12-00 |
— | ||
|
16
|
16
5VL-F4602-00-00
Cap Assy
|
5VL-F4602-00-00 |
— | ||
|
17
|
17
3S9-F198F-00-00
Cover 1
|
3S9-F198F-00-00 |
— | ||
|
18
|
18
27S-F414K-00-00
Damper, Plate 3
|
27S-F414K-00-00 |
— | ||
|
19
|
19
3S9-F198G-00-00
Cover 2
|
3S9-F198G-00-00 |
— | ||
|
20
|
20
27S-F414N-00-00
Damper, Plate 4
|
27S-F414N-00-00 |
— | ||
|
21
|
21
9770N-50012-00 Screw, Tapping |
9770N-50012-00 |
US $1.28 |
||
| replacement | |||||
|
21
|
21
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
22
|
22
9700N-06016-00 Bolt |
9700N-06016-00 |
US $1.21 |
||
|
23
|
23
90201-06850-00 Washer, Plate |
90201-06850-00 |
US $1.28 |
||
|
24
|
24
27S-F414G-00-00
Seal
|
27S-F414G-00-00 |
— | ||
| replacement | |||||
|
24
|
24
27S-F414G-10-00
Seal
|
27S-F414G-10-00 |
— | ||
|
25
|
25
27S-F414E-00-00
Seal 2
|
27S-F414E-00-00 |
— | ||
| replacement | |||||
|
25
|
25
27S-F414E-10-00
Seal 2
|
27S-F414E-10-00 |
— | ||
|
26
|
26
27S-13907-00-00
Fuel Pump Comp
|
27S-13907-00-00 |
— | ||
| replacement | |||||
|
26
|
26
27S-13907-10-00
Fuel Pump Comp
|
27S-13907-10-00 |
— | ||
|
27
|
27
27S-F4491-00-00 Bracket, Fuel Pump |
27S-F4491-00-00 |
US $11.48 |
||
|
28
|
28
1S4-24486-00-00 O-Ring |
1S4-24486-00-00 |
from US $27.63 |
||
|
29
|
29
9201N-05016-00 Bolt, Button Head |
9201N-05016-00 |
US $1.56 |
||
| replacement | |||||
|
29
|
29
92012-05016-00 Bolt, Button Head |
92012-05016-00 |
from US $1.56 |
||
|
30
|
30
27S-F414J-00-00
Damper, Plate 2
|
27S-F414J-00-00 |
— | ||
