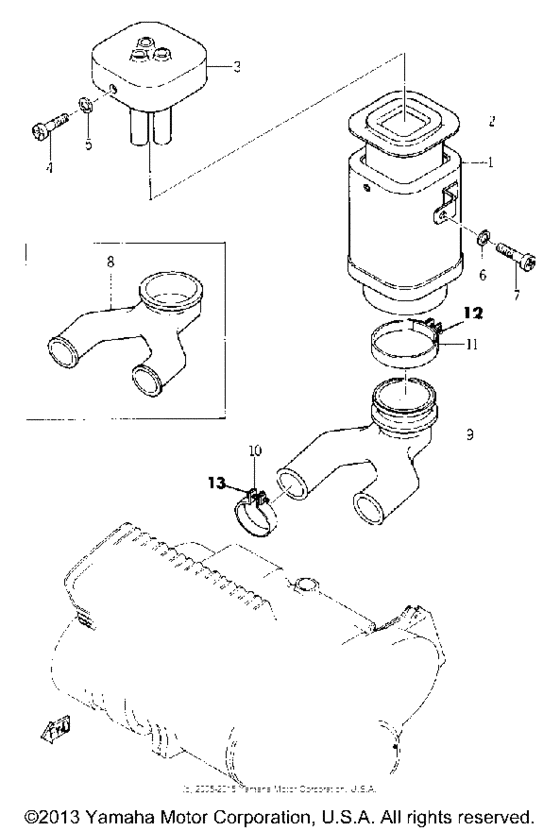

Air cleaner Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
132-14411-00-00
Case, Air Cleaner 1
|
132-14411-00-00 |
— | ||
|
1
|
1
132-14411-01-00
Case, Air Cleaner 1
|
132-14411-01-00 |
— | ||
|
2
|
2
132-14451-01-00
Element, Air Clnr
|
132-14451-01-00 |
— | ||
|
3
|
3
132-14412-01-00
Cap, Cleaner Case 1
|
132-14412-01-00 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
8
|
8
999-99011-45-00
Joint, Rubber (132-14453-01)
132-14453-01 |
999-99011-45-00 |
— | ||
|
9
|
9
999-99011-45-00
Joint, Rubber (132-14453-01)
132-14453-01 |
999-99011-45-00 |
— | ||
|
10
|
10
90460-33013-00
Clamp, Hose (353-14455-00-00)
353-14455-00-00 |
90460-33013-00 |
— | ||
|
11
|
11
90460-56105-00 Hose Clamp Assy |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
11
|
11
90450-56001-00 Hose Clamp Assy |
90450-56001-00 |
from US $14.73 |
||
|
12
|
12
925-03050-25-00
Screw, Pan Head
|
925-03050-25-00 |
— | ||
|
13
|
13
925-03050-12-00 Screw, Pan Head |
925-03050-12-00 |
US $0.88 |
||
