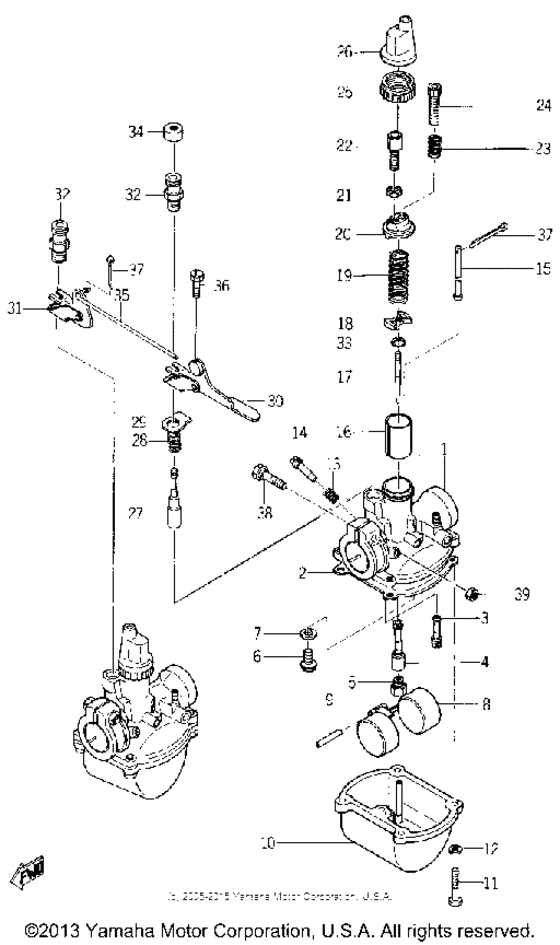

Carburetor Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
1
|
1
198-14101-00-00
Carburetor Assembly 1
|
198-14101-00-00 |
— | ||
|
2
|
2
127-14184-00-00 Gasket, Float Chamber |
127-14184-00-00 |
from US $11.93 |
||
|
2
|
2
198-14102-00-00
Carburetor Assembly 2
|
198-14102-00-00 |
— | ||
|
3
|
3
127-14142-17-00
Jet, Pilot #17.5
#17.5 |
127-14142-17-00 |
— | ||
|
4
|
4
132-14141-10-00
Nozzle, Main
|
132-14141-10-00 |
— | ||
|
5
|
5
127-14143-14-00
Jet, Main #70
#70 U.RU.R |
127-14143-14-00 |
— | ||
|
5
|
5
127-14143-08-00
Jet, Main #40
#40 U.RU.R |
127-14143-08-00 |
— | ||
|
5
|
5
127-14143-10-00
Jet, Main #50
#50 U.RU.R |
127-14143-10-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
#50 U.RU.R |
999-99999-99-00 |
— | ||
|
5
|
5
127-14143-12-00
Jet, Main #60
#60 U.RU.R |
127-14143-12-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
#60 U.RU.R |
999-99999-99-00 |
— | ||
|
5
|
5
127-14143-16-00
Jet, Main #80
#80 U.RU.R |
127-14143-16-00 |
— | ||
|
6
|
6
2E9-14190-12-00 Needle Valve Assembly (127-14127-14 |
2E9-14190-12-00 |
from US $61.88 |
||
|
7
|
7
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
8
|
8
127-14185-00-00 Float |
127-14185-00-00 |
from US $43.66 |
||
|
9
|
9
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
10
|
10
127-14181-00-00
Body, Float Chmbr 1
|
127-14181-00-00 |
— | ||
|
11
|
11
925-03040-20-00
Screw, Pan Head
|
925-03040-20-00 |
— | ||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
14
|
14
127-W1412-00-00 Screw, Air Adjusting.set |
127-W1412-00-00 |
from US $17.33 |
||
|
15
|
15
127-14114-00-00
Bar, Throttle
|
127-14114-00-00 |
— | ||
|
16
|
16
134-14112-15-00
Valve, Throttle 1
|
134-14112-15-00 |
— | ||
|
17
|
17
134-14116-03-00
Needle
|
134-14116-03-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
296-14136-00-00
Seat, Spring
|
296-14136-00-00 |
— | ||
|
19
|
19
132-14131-00-00
Spring, Thrtl Valve
|
132-14131-00-00 |
— | ||
|
20
|
20
134-14158-00-00
Top, Mixing Chamber
|
134-14158-00-00 |
— | ||
|
21
|
21
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
22
|
22
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
23
|
23
127-14133-00-00 Spring, Thrtl Stop |
127-14133-00-00 |
from US $4.39 |
||
|
24
|
24
127-14121-00-00
Screw, Thrtl Stop
|
127-14121-00-00 |
— | ||
|
25
|
25
134-14168-00-00
Cap, Mixing Chamber
|
134-14168-00-00 |
— | ||
|
26
|
26
132-14169-00-00
Cap
|
132-14169-00-00 |
— | ||
|
27
|
27
132-14171-00-00 Plunger, Starter |
132-14171-00-00 |
from US $23.80 |
||
|
28
|
28
132-14135-00-00 Spring, Plunger |
132-14135-00-00 |
from US $3.68 |
||
|
29
|
29
132-14178-00-00
Plate, Starter Lvr
|
132-14178-00-00 |
— | ||
|
30
|
30
196-14175-00-00
Lever, Starter 1
|
196-14175-00-00 |
— | ||
|
31
|
31
132-14176-00-00
Lever, Starter 2
|
132-14176-00-00 |
— | ||
|
32
|
32
132-14174-00-00
Cap, Plunger
|
132-14174-00-00 |
— | ||
|
33
|
33
127-14137-00-00 Clip |
127-14137-00-00 |
from US $7.70 |
||
|
34
|
34
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
35
|
35
132-14177-00-00
Rod, Starter Lever
|
132-14177-00-00 |
— | ||
|
36
|
36
132-14486-00-00
Screw, Rod
|
132-14486-00-00 |
— | ||
|
37
|
37
914-01100-15-00
Pin, Cotter
|
914-01100-15-00 |
— | ||
|
38
|
38
127-14125-01-00 Screw, Body Fitting |
127-14125-01-00 |
from US $6.02 |
||
|
39
|
39
127-14164-00-00
Nut, Holding
|
127-14164-00-00 |
— | ||
