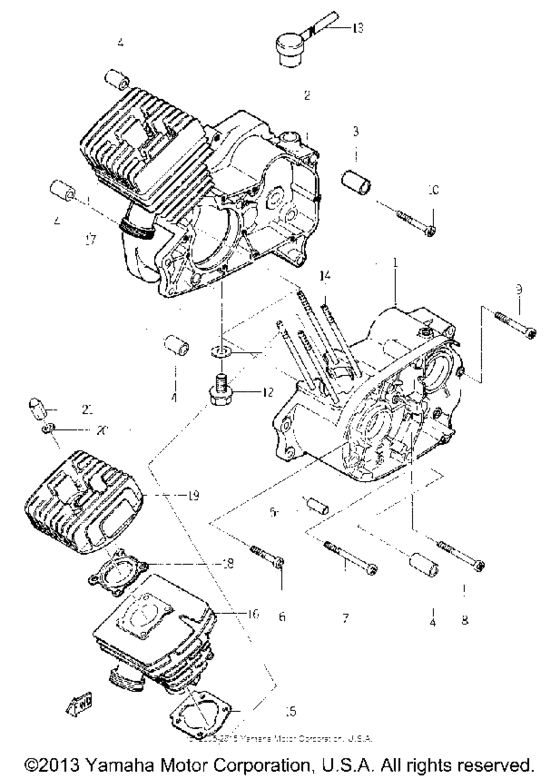

Crankcase Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
132-15111-01-00
Crankcase 1
|
132-15111-01-00 |
— | ||
|
1
|
1
132-15111-03-00
Crankcase 1
|
132-15111-03-00 |
— | ||
|
2
|
2
132-15121-01-00
Crankcase 2
|
132-15121-01-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
4
|
4
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
4
|
4
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
4
|
4
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
5
|
5
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $1.98 |
||
|
6
|
6
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
7
|
7
985-80065-80-00
Screw, Pan Head
|
985-80065-80-00 |
— | ||
|
8
|
8
985-01060-70-00
Screw Pan Head
|
985-01060-70-00 |
— | ||
| replacement | |||||
|
8
|
8
98580-06570-00 Screw, Pan Head |
98580-06570-00 |
from US $6.52 |
||
|
9
|
9
925-80065-60-00
Screw, Pan Head (92580-06560-00
92580-06560-00 |
925-80065-60-00 |
— | ||
| replacement | |||||
|
9
|
9
985-80065-60-00 Screw, Pan Head (92580-06560-0092580-06560-00 |
985-80065-60-00 |
from US $7.51 |
||
|
10
|
10
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
10
|
10
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
11
|
11
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.13 |
||
|
12
|
12
90340-12005-00 Plug Straigtscrew 132153510000 |
90340-12005-00 |
from US $1.70 |
||
|
13
|
13
206-15371-00-00
Breather
|
206-15371-00-00 |
— | ||
|
14
|
14
90116-06026-00 Bolt, Stud |
90116-06026-00 |
from US $3.12 |
||
|
15
|
15
195-11351-00-00
Gasket,cylinder
|
195-11351-00-00 |
— | ||
| replacement | |||||
|
15
|
15
195-11351-10-00
element
|
195-11351-10-00 |
— | ||
|
16
|
16
134-11311-01-00
Cylinder 1
|
134-11311-01-00 |
— | ||
|
17
|
17
134-11321-01-00
Cylinder 2
|
134-11321-01-00 |
— | ||
|
18
|
18
134-11181-01-00
Gasket, Cylinder Head 1
|
134-11181-01-00 |
— | ||
|
19
|
19
134-11111-01-00
Head, Cylinder 1
|
134-11111-01-00 |
— | ||
|
20
|
20
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
21
|
21
90176-06002-00 Nut, Crown |
90176-06002-00 |
from US $7.45 |
||
