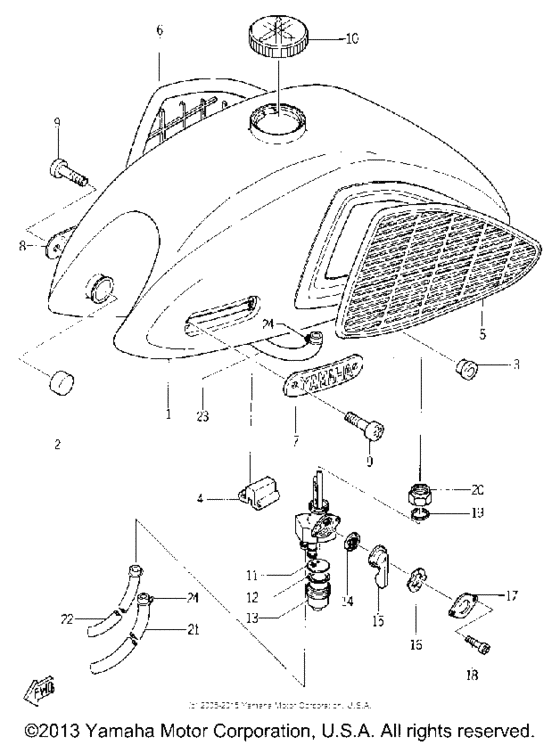

Fuel tank Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
132-24110-01-81
Fuel Tank
|
132-24110-01-81 |
— | ||
|
1
|
1
132-24500-02-00
Fuel Cock Assembly 1
|
132-24500-02-00 |
— | ||
|
2
|
2
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
3
|
3
122-24182-01-00
Damper, Locating 2
|
122-24182-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
129-24183-00-00 Damper, Locating 3 |
129-24183-00-00 |
US $9.21 |
||
|
5
|
5
132-24171-00-00
Grip, Knee 1
|
132-24171-00-00 |
— | ||
|
6
|
6
132-24172-00-00
Grip, Knee 2
|
132-24172-00-00 |
— | ||
|
7
|
7
132-24161-00-00
Emblem 1
|
132-24161-00-00 |
— | ||
|
8
|
8
132-24161-00-00
Emblem 1
|
132-24161-00-00 |
— | ||
|
9
|
9
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
10
|
10
122-24610-01-00 Cap Assembly |
122-24610-01-00 |
from US $22.53 |
||
|
11
|
11
304-24515-00-00
Net, Filter 2
|
304-24515-00-00 |
— | ||
|
12
|
12
132-24522-00-00 Gasket |
132-24522-00-00 |
from US $17.71 |
||
| replacement | |||||
|
12
|
12
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
13
|
13
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
14
|
14
137-24523-00-00 Petcock Packing Valve |
137-24523-00-00 |
from US $8.36 |
||
|
14
|
14
132-24523-00-00
Valve
|
132-24523-00-00 |
— | ||
|
15
|
15
168-24524-00-00
Lever, Cock
|
168-24524-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
132-24524-00-00
Lever, Cock
|
132-24524-00-00 |
— | ||
|
16
|
16
132-24518-00-00 Washer, Wave |
132-24518-00-00 |
from US $4.25 |
||
|
17
|
17
132-24525-01-00
Plate, Lvr Fitting
|
132-24525-01-00 |
— | ||
|
18
|
18
925-03030-06-00
Screw
|
925-03030-06-00 |
— | ||
|
19
|
19
434-24532-00-00 Gasket |
434-24532-00-00 |
from US $5.53 |
||
|
20
|
20
132-24531-00-00
Nut
|
132-24531-00-00 |
— | ||
|
21
|
21
90445-09091-00 Hose (L420) |
90445-09091-00 |
from US $2.13 |
||
| replacement | |||||
|
21
|
21
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
22
|
22
904-45090-78-00
Hose (L420)
|
904-45090-78-00 |
— | ||
| replacements | |||||
|
22
|
22
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
22
|
22
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
23
|
23
90445-09083-00 Hose (L155) |
90445-09083-00 |
from US $6.52 |
||
| replacements | |||||
|
23
|
23
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
23
|
23
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
24
|
24
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
