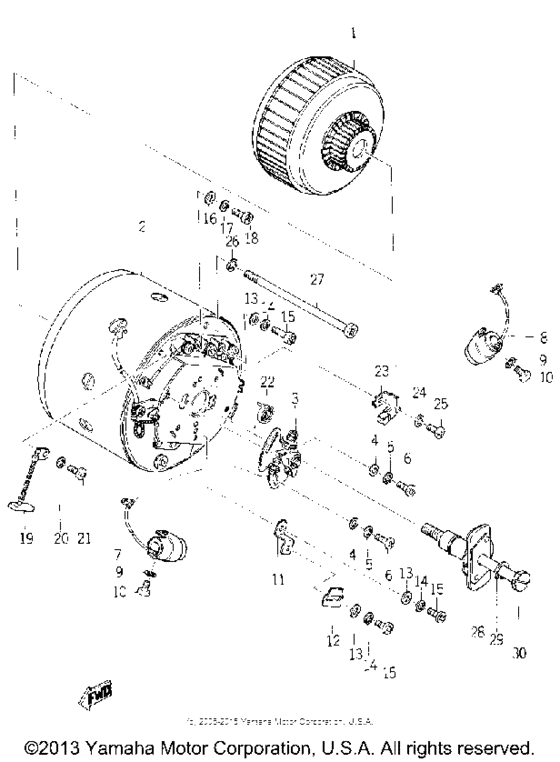

Generator (Ylie) Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
199-81100-10-00
Starter Gen Assembly
|
199-81100-10-00 |
— | ||
|
1
|
1
176-81155-10-00
Armature
|
176-81155-10-00 |
— | ||
|
2
|
2
199-81110-10-00
Stator Assembly
|
199-81110-10-00 |
— | ||
|
3
|
3
132-81221-10-00
Contact Brkr Assembly
|
132-81221-10-00 |
— | ||
|
4
|
4
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
5
|
5
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
6
|
6
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
7
|
7
132-81226-90-00
Cndsr 2
|
132-81226-90-00 |
— | ||
| replacement | |||||
|
7
|
7
278-81625-91-00
VOLTAGE REG ASSY
|
278-81625-91-00 |
— | ||
|
8
|
8
132-81225-90-00
Cndsr 2
|
132-81225-90-00 |
— | ||
| replacement | |||||
|
8
|
8
278-81625-91-00
VOLTAGE REG ASSY
|
278-81625-91-00 |
— | ||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
11
|
11
133-81133-10-00
Fixture, Tmng Plate
|
133-81133-10-00 |
— | ||
|
12
|
12
133-81132-10-00
Plate, Timing
|
133-81132-10-00 |
— | ||
|
13
|
13
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
16
|
16
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
925-03050-08-00
Screw, Pan Head
|
925-03050-08-00 |
— | ||
|
19
|
19
141-81111-10-00
Brush
|
141-81111-10-00 |
— | ||
|
20
|
20
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
21
|
21
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
22
|
22
141-81113-10-00 Spring, Brush |
141-81113-10-00 |
US $22.81 |
||
|
23
|
23
132-81231-10-00
Lubricator
|
132-81231-10-00 |
— | ||
|
24
|
24
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
25
|
25
925-03040-08-00
Screw, Pan Head
|
925-03040-08-00 |
— | ||
|
26
|
26
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
27
|
27
132-81435-10-00
Screw, Stator
|
132-81435-10-00 |
— | ||
|
28
|
28
133-81153-10-00
Governor Assembly
|
133-81153-10-00 |
— | ||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
30
|
30
133-81152-10-00
Bolt
|
133-81152-10-00 |
— | ||
