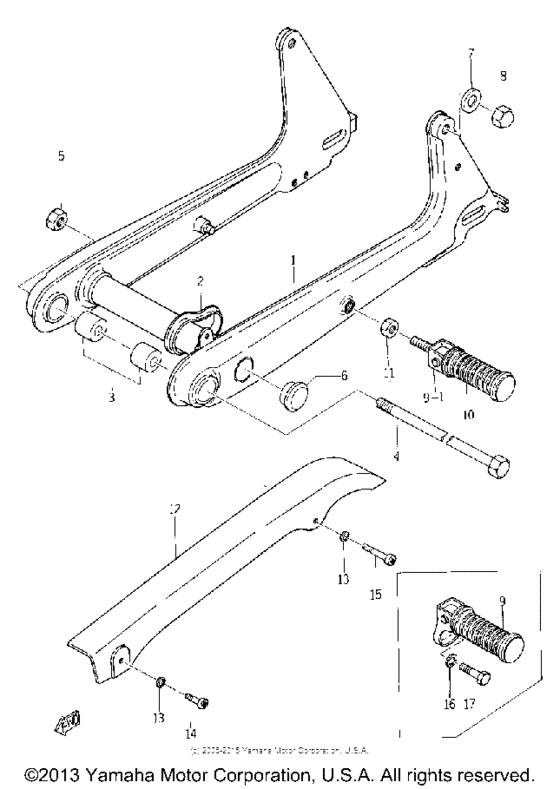

Rear arm and chain case Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1967
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YL1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
120-27430-01-00
Rr Footrest Assembly 1
|
120-27430-01-00 |
— | ||
|
2
|
2
296-22151-01-00 Seal, Guard |
296-22151-01-00 |
US $12.04 |
||
| replacement | |||||
|
2
|
2
4GL-22151-00-00 Seal, Guard |
4GL-22151-00-00 |
US $12.04 |
||
|
3
|
3
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
4
|
4
109-22141-00-00 Shaft,pivot |
109-22141-00-00 |
from US $19.84 |
||
| replacement | |||||
|
4
|
4
486-22141-01-00 Shaft, Pivot |
486-22141-01-00 |
from US $19.84 |
||
|
5
|
5
901-85100-31-00
Nut, Self-Locking
|
901-85100-31-00 |
— | ||
|
6
|
6
180-22117-00-00 Cap |
180-22117-00-00 |
from US $3.26 |
||
|
7
|
7
90201-12190-00 Washer, Plate 1222224300 |
90201-12190-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.70 |
||
|
8
|
8
901-76120-06-00
Nut, Crown
|
901-76120-06-00 |
— | ||
|
9
|
9
120-27430-00-00
Rear Footrest Assy
|
120-27430-00-00 |
— | ||
|
10
|
10
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.32 |
||
|
11
|
11
901-70120-61-00
Nut, Hexagon
|
901-70120-61-00 |
— | ||
|
12
|
12
128-22311-00-35
Case, Chain
|
128-22311-00-35 |
— | ||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
925-01050-06-00
Screw, Pan Head
|
925-01050-06-00 |
— | ||
|
15
|
15
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
15
|
15
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
15
|
15
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.34 |
||
|
16
|
16
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
17
|
17
97011-10020-00 Bolt (5X2) |
97011-10020-00 |
from US $3.12 |
||
| replacement | |||||
|
17
|
17
97017-10020-00 Bolt |
97017-10020-00 |
from US $3.12 |
||
