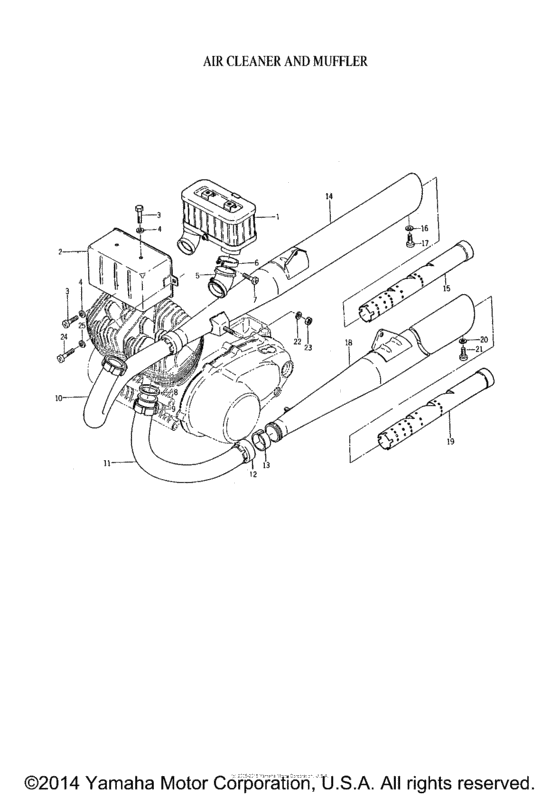

Air cleaner muffler Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1965
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YM1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-14451-01-00
Element, Air Clnr
|
156-14451-01-00 |
— | ||
|
2
|
2
157-14111-00-00
Case, Air Cleaner
|
157-14111-00-00 |
— | ||
|
2
|
2
156-14411-00-00
Air Cleaner Asy.1
|
156-14411-00-00 |
— | ||
| replacement | |||||
|
2
|
2
156-14410-60-33
element
|
156-14410-60-33 |
— | ||
|
3
|
3
92501-06010-00 Screw, Pan Head92503-06010-00 |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
4
|
4
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
156-14453-00-00
Joint, Air Clnr
|
156-14453-00-00 |
— | ||
|
6
|
6
156-14455-00-00 Clamp, Hose |
156-14455-00-00 |
US $11.76 |
||
| replacement | |||||
|
6
|
6
904-60492-48-00
Clamp, Hose
|
904-60492-48-00 |
— | ||
|
7
|
7
925-01040-25-00
Screw, Pan Head
|
925-01040-25-00 |
— | ||
|
8
|
8
152-14613-00-00
Gasket, Exhaust Pipe
|
152-14613-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.35 |
||
|
9
|
9
156-14612-00-00
Nut, Ring
|
156-14612-00-00 |
— | ||
| replacement | |||||
|
9
|
9
157-14612-00-00
Nut, Ring
|
157-14612-00-00 |
— | ||
|
10
|
10
156-14621-00-00
Pipe, Exhaust Rh
RH |
156-14621-00-00 |
— | ||
|
11
|
11
156-14611-00-00
Pipe, Exhaust Lh
LH |
156-14611-00-00 |
— | ||
|
12
|
12
137-14713-00-00
Nut, Muffler Joint
|
137-14713-00-00 |
— | ||
|
13
|
13
136-14714-00-00
Gasket, Muffler
|
136-14714-00-00 |
— | ||
| replacements | |||||
|
13
|
13
137-14714-60-00
Gasket, Muffler
|
137-14714-60-00 |
— | ||
|
13
|
13
136-14714-60-00
Gasket, muffler joint
|
136-14714-60-00 |
— | ||
|
14
|
14
156-14720-00-00
Muffler, Rh
RH |
156-14720-00-00 |
— | ||
|
15
|
15
156-14753-00-00
Silencer, Exhaust
|
156-14753-00-00 |
— | ||
|
16
|
16
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
17
|
17
156-14751-00-00
Screw,hexagon
|
156-14751-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
156-14710-00-00
Muffler, Lh
LH |
156-14710-00-00 |
— | ||
|
19
|
19
156-14753-00-00
Silencer, Exhaust
|
156-14753-00-00 |
— | ||
|
20
|
20
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
21
|
21
156-14751-00-00
Screw,hexagon
|
156-14751-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
23
|
23
928-01081-00-00 Nut |
928-01081-00-00 |
US $1.42 |
||
| replacements | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
24
|
24
92501-06010-00 Screw, Pan Head92503-06010-00 |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
25
|
25
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
