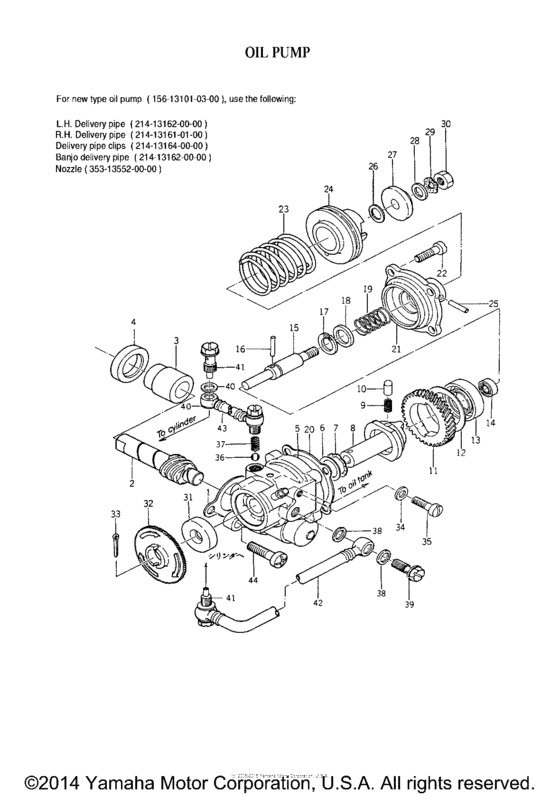

Oil pump Diagram Yamaha YL1/ YM1/ YM2
- Year
- 1965
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YM1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
126-13116-00-00 Gasket, Pump Case |
126-13116-00-00 |
from US $1.70 |
||
| replacement | |||||
|
1
|
1
126-13116-01-00 Gasket, Pump Case |
126-13116-01-00 |
from US $1.70 |
||
|
2
|
2
159-13175-00-00
Shaft, Worm
|
159-13175-00-00 |
— | ||
|
3
|
3
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
3
|
3
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
4
|
4
93101-10002-00 Oil Seal |
93101-10002-00 |
from US $2.32 |
||
|
5
|
5
159-13101-00-00
Oil Pump Asy
|
159-13101-00-00 |
— | ||
| replacement | |||||
|
5
|
5
159-13101-01-00
CRANKCASE 1
|
159-13101-01-00 |
— | ||
|
6
|
6
137-13148-00-00 Plate, Cam Thrust10.2-16.5-0.3 |
137-13148-00-00 |
from US $3.26 |
||
|
7
|
7
137-13129-00-00 Washer, Wave |
137-13129-00-00 |
US $2.55 |
||
| replacement | |||||
|
7
|
7
90206-11016-00 Washer, Wave |
90206-11016-00 |
from US $2.55 |
||
|
8
|
8
156-13120-00-00
Distributor Assy
|
156-13120-00-00 |
— | ||
|
9
|
9
137-13125-00-00
Spring, Compression
|
137-13125-00-00 |
— | ||
| replacement | |||||
|
9
|
9
905-01020-16-00
Spring, Compression
|
905-01020-16-00 |
— | ||
|
10
|
10
936-02040-29-00
Pin, Dowel
|
936-02040-29-00 |
— | ||
|
11
|
11
159-13124-00-00
Gear, Worm Wheel
32T |
159-13124-00-00 |
— | ||
|
12
|
12
137-13127-00-00
Plate, Worm Wheel
14.5-28.5-0.5 |
137-13127-00-00 |
— | ||
|
13
|
13
93104-14004-00 Oil SealSO 14-24-5 |
93104-14004-00 |
from US $6.66 |
||
| replacement | |||||
|
13
|
13
93104-14059-00 Oil SealSO 14-24-5 |
93104-14059-00 |
from US $4.30 |
||
|
14
|
14
931-04040-01-00 Oil Seal,so-TypeSO 4-9-3 |
931-04040-01-00 |
from US $2.56 |
||
| replacement | |||||
|
14
|
14
931-04041-14-00 OIL SEAL,SW-TYPESO 4-9-3 |
931-04041-14-00 |
from US $5.69 |
||
|
15
|
15
137-13131-00-00
Plunger
|
137-13131-00-00 |
— | ||
|
16
|
16
93603-12030-00 Pin, Dowel2.5-11.8 |
93603-12030-00 |
from US $1.66 |
||
|
17
|
17
93440-08001-00
Circlip, Outer
|
93440-08001-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
137-13134-00-00
Seat, Spring
|
137-13134-00-00 |
— | ||
|
19
|
19
137-13135-00-00
Spring, Plngr Rtrn
|
137-13135-00-00 |
— | ||
|
20
|
20
137-13142-00-00 Gasket |
137-13142-00-00 |
US $4.39 |
||
|
21
|
21
137-13141-00-00
Cover, Pump Case
|
137-13141-00-00 |
— | ||
|
22
|
22
925-01040-10-00 Screw, Pan Head |
925-01040-10-00 |
US $1.21 |
||
|
23
|
23
156-13145-00-00
Spring, Torsion (156-13145-00
156-13145-00 |
156-13145-00-00 |
— | ||
| replacement | |||||
|
23
|
23
905-08100-13-00
Spring, Torsion (156-13145-00
156-13145-00 |
905-08100-13-00 |
— | ||
|
24
|
24
156-13144-00-00
Pulley, Adjusting
|
156-13144-00-00 |
— | ||
|
25
|
25
916-06200-10-00
Pin, Spring
|
916-06200-10-00 |
— | ||
|
26
|
26
137-13137-00-00 Shim, Adjust5.8-10-0. 1 |
137-13137-00-00 |
from US $3.26 |
||
| replacement | |||||
|
26
|
26
137-13137-00-10 Shim (T=1.0)5.8-10-0. 1 |
137-13137-00-10 |
from US $3.26 |
||
|
27
|
27
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
28
|
28
137-13147-00-00 Shim 25.8-10-0. 1 |
137-13147-00-00 |
from US $3.26 |
||
| replacement | |||||
|
28
|
28
137-13137-00-10 Shim (T=1.0)5.8-10-0. 1 |
137-13137-00-10 |
from US $3.26 |
||
|
29
|
29
137-13136-00-00 Washer, Spring |
137-13136-00-00 |
US $1.21 |
||
| replacement | |||||
|
29
|
29
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
30
|
30
137-13139-00-00 Nut |
137-13139-00-00 |
US $2.83 |
||
|
31
|
31
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $2.98 |
||
|
32
|
32
137-13128-00-00
Plate, Starter
|
137-13128-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
137-13187-00-00 Gasket, Breather4.2-7-0.4 |
137-13187-00-00 |
US $1.28 |
||
| replacement | |||||
|
34
|
34
90430-04004-00 Gasket4.2-7-0.4 |
90430-04004-00 |
from US $1.28 |
||
|
35
|
35
137-13185-00-00
Screw, Pan Head
|
137-13185-00-00 |
— | ||
| replacements | |||||
|
35
|
35
164-81245-20-00
Screw, Pan Head
|
164-81245-20-00 |
— | ||
|
35
|
35
925-01040-05-00
Screw, Pan Head
|
925-01040-05-00 |
— | ||
|
36
|
36
93505-32002-00 Ball5/32in. |
93505-32002-00 |
from US $1.84 |
||
|
37
|
37
137-13169-00-00
Spring, Compression
|
137-13169-00-00 |
— | ||
| replacement | |||||
|
37
|
37
905-01020-17-00
Spring, Compression
|
905-01020-17-00 |
— | ||
|
38
|
38
137-13167-00-00 Gasket, Banjo6-13-0.5 |
137-13167-00-00 |
from US $3.26 |
||
| replacement | |||||
|
38
|
38
904-30062-24-00 Gasket6-13-0.5 |
904-30062-24-00 |
from US $2.79 |
||
|
39
|
39
137-13165-00-00 Bolt, Union |
137-13165-00-00 |
US $5.10 |
||
| replacement | |||||
|
39
|
39
90401-06001-00 Bolt, Union |
90401-06001-00 |
from US $5.10 |
||
|
40
|
40
137-13167-00-00 Gasket, Banjo |
137-13167-00-00 |
from US $3.26 |
||
| replacement | |||||
|
40
|
40
904-30062-24-00 Gasket |
904-30062-24-00 |
from US $2.79 |
||
|
41
|
41
156-13166-00-00
Bolt, Union
|
156-13166-00-00 |
— | ||
| replacement | |||||
|
41
|
41
904-01060-11-00
Bolt, Union
|
904-01060-11-00 |
— | ||
|
42
|
42
156-13161-00-00
Pipe, Delivery 1
|
156-13161-00-00 |
— | ||
|
43
|
43
156-13171-00-00
Pipe, Delivery 2
|
156-13171-00-00 |
— | ||
|
44
|
44
925-01050-15-00 Screw, Pan Head |
925-01050-15-00 |
US $1.42 |
||
| replacement | |||||
|
44
|
44
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
