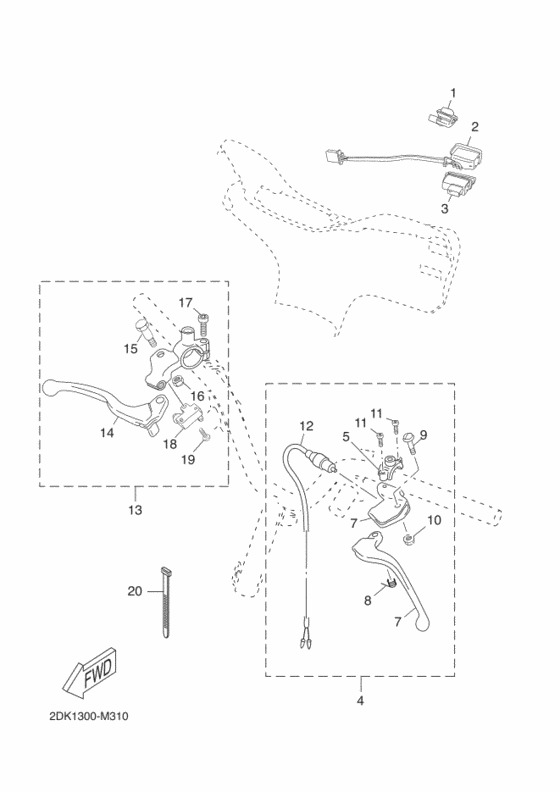

Handle switch & lever Diagram Yamaha YN50 NEO'S
- Year
- 2013
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2DK1
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- YN50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5C3-H3950-00-00
Beam Switch Assy
|
5C3-H3950-00-00 |
— | ||
|
2
|
2
5C3-H396U-00-00
Switch
|
5C3-H396U-00-00 |
— | ||
|
3
|
3
5C3-H3976-00-00
Switch, Handle 1
|
5C3-H3976-00-00 |
— | ||
|
4
|
4
5C2-H2910-01-00
Lever Holder Assy (Left)
|
5C2-H2910-01-00 |
— | ||
|
5
|
5
5C2-H2913-00-00
Holder, Lever Lower 1
|
5C2-H2913-00-00 |
— | ||
|
6
|
6
5C2-H2912-00-00
Holder, Lever Upper 1
|
5C2-H2912-00-00 |
— | ||
|
7
|
7
5JH-H3912-10-00 Lever 1 |
5JH-H3912-10-00 |
US $20.69 |
||
|
8
|
8
4KH-H3962-00-00 Spring |
4KH-H3962-00-00 |
from US $2.27 |
||
|
9
|
9
3VL-H3915-00-00 Screw, Lever Fitting |
3VL-H3915-00-00 |
from US $3.44 |
||
|
10
|
10
3VL-H3916-00-00 Nut, Lever Fitting |
3VL-H3916-00-00 |
from US $2.98 |
||
|
11
|
11
92014-06020-00 Bolt, Button Head |
92014-06020-00 |
from US $1.56 |
||
|
12
|
12
5JH-H3980-21-00 Front Stop Switch Assy |
5JH-H3980-21-00 |
US $29.33 |
||
| replacement | |||||
|
12
|
12
5JH-H3980-22-00
Front Stop Switch Assy
|
5JH-H3980-22-00 |
— | ||
|
13
|
13
5C3-H2910-10-00
Lever Holder Assy (Left)
|
5C3-H2910-10-00 |
— | ||
|
14
|
14
5C3-H3922-10-00
Lever 2
|
5C3-H3922-10-00 |
— | ||
|
15
|
15
901-0906X-19-00
Bolt
|
901-0906X-19-00 |
— | ||
|
16
|
16
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
17
|
17
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
18
|
18
36Y-82917-00-00 Stop Switch Assy |
36Y-82917-00-00 |
from US $19.84 |
||
|
19
|
19
97602-04214-00 Screw, Pan Head With Washer |
97602-04214-00 |
from US $1.15 |
||
|
20
|
20
90464-50X05-00 Clamp |
90464-50X05-00 |
US $1.42 |
||
