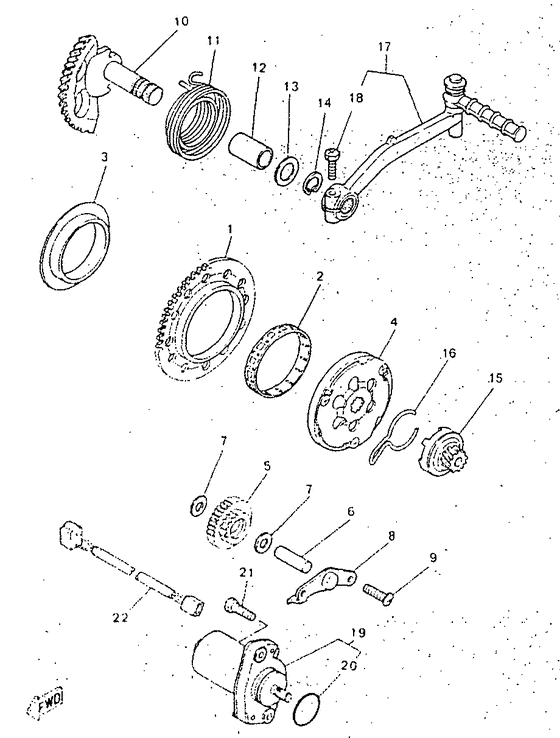

Starter Diagram Yamaha YN50 NEO'S
- Year
- 1998
- Colour
- Fine Silver (FIS; 00LK)
- Model code
- 5AD6
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- YN50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-15513-00-00 Gear 1 (71T) |
3AA-15513-00-00 |
from US $33.15 |
||
|
02
|
02
93310-257R1-00 Bearing |
93310-257R1-00 |
from US $28.48 |
||
| replacement | |||||
|
02
|
02
93310-25712-00 Bearing |
93310-25712-00 |
from US $28.48 |
||
|
03
|
03
3KJ-15528-00-00 Boss, Gear |
3KJ-15528-00-00 |
from US $14.17 |
||
|
04
|
04
3VL-15570-00-00 Starter Clutch Assy |
3VL-15570-00-00 |
from US $73.48 |
||
|
05
|
05
4SB-E5650-00-00 Idle Gear Assy |
4SB-E5650-00-00 |
from US $59.55 |
||
| replacement | |||||
|
05
|
05
2AD-E5650-00-00 Idle Gear Assy |
2AD-E5650-00-00 |
US $59.55 |
||
|
06
|
06
3VL-E5659-00-00 Shaft |
3VL-E5659-00-00 |
from US $6.89 |
||
| replacement | |||||
|
06
|
06
3VL-E5659-10-00 Shaft |
3VL-E5659-10-00 |
from US $2.99 |
||
|
07
|
07
90201-08X00-00 Washer, Plate |
90201-08X00-00 |
US $1.70 |
||
| replacement | |||||
|
07
|
07
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.70 |
||
|
08
|
08
4CU-E5532-00-00
Plate, Idle Gear
|
4CU-E5532-00-00 |
— | ||
|
09
|
09
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
09
|
09
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
10
|
10
3ES-15601-01-00 Kick Shaft Assy |
3ES-15601-01-00 |
from US $81.90 |
||
| replacements | |||||
|
10
|
10
5AD-E5601-00-00
Kick Shaft Assy
|
5AD-E5601-00-00 |
— | ||
|
10
|
10
3ES-15601-02-00 Kick Shaft Assy |
3ES-15601-02-00 |
from US $86.47 |
||
|
11
|
11
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
12
|
12
3VL-E5632-00-00 Bush, Solid |
3VL-E5632-00-00 |
from US $4.25 |
||
| replacement | |||||
|
12
|
12
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
13
|
13
90201-155G5-00 Washer, Plate |
90201-155G5-00 |
from US $2.55 |
||
| replacement | |||||
|
13
|
13
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.55 |
||
|
14
|
14
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
15
|
15
4SB-E5631-00-00 Gear, Kick Pinion |
4SB-E5631-00-00 |
from US $72.67 |
||
| replacement | |||||
|
15
|
15
2AD-E5631-00-00 Gear, Kick Pinion |
2AD-E5631-00-00 |
US $61.83 |
||
|
16
|
16
3VL-E5673-00-00 Clip |
3VL-E5673-00-00 |
from US $7.93 |
||
|
17
|
17
4CU-X5620-00-00
Kick Crank Assy
|
4CU-X5620-00-00 |
— | ||
|
18
|
18
97316-06025-00 Bolt |
97316-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
19
|
19
4CU-H1800-00-00
Starting Motor Assy
|
4CU-H1800-00-00 |
— | ||
| replacements | |||||
|
19
|
19
4CU-H1800-10-00
Starting Motor Assy
|
4CU-H1800-10-00 |
— | ||
|
19
|
19
5BM-H1800-01-00 Starting Motor Assy |
5BM-H1800-01-00 |
US $291.52 |
||
|
20
|
20
93210-23614-00 O-Ring |
93210-23614-00 |
from US $1.56 |
||
|
21
|
21
91318-06020-00 Bolt |
91318-06020-00 |
from US $1.35 |
||
| replacement | |||||
|
21
|
21
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
22
|
22
5AD-H2541-00-00
Wire, Lead
|
5AD-H2541-00-00 |
— | ||
| replacement | |||||
|
22
|
22
2AP-H2541-00-00
Wire Lead
|
2AP-H2541-00-00 |
— | ||
