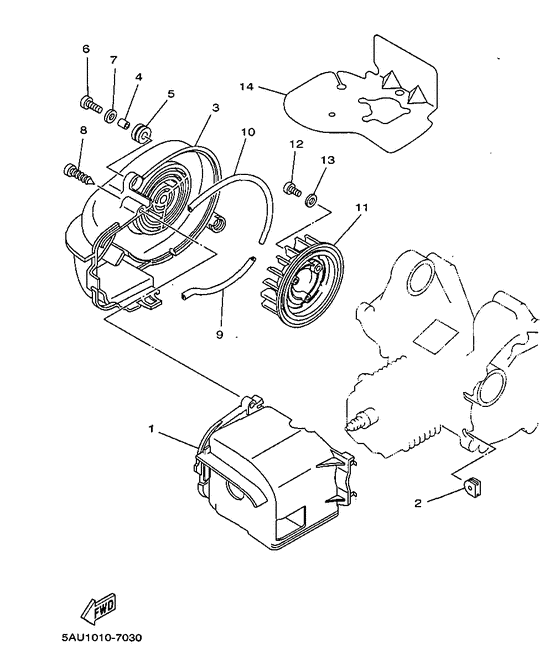

Air shroud & fan Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-12651-11-00
Air Shroud, Cylinder 1
|
3KJ-12651-11-00 |
— | ||
|
02
|
02
90480-10468-00 Grommet |
90480-10468-00 |
from US $2.13 |
||
| replacement | |||||
|
02
|
02
90480-11X03-00
Grommet
|
90480-11X03-00 |
— | ||
|
03
|
03
5BM-12653-00-00
Air Shroud, Cylinder 3
|
5BM-12653-00-00 |
— | ||
|
04
|
04
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.70 |
||
| replacement | |||||
|
04
|
04
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.70 |
||
|
05
|
05
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
06
|
06
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
06
|
06
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
07
|
07
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
08
|
08
97707-60540-00 Screw, Tapping |
97707-60540-00 |
from US $1.70 |
||
|
09
|
09
4FW-12658-00-00 Damper, Air Shroud 1 |
4FW-12658-00-00 |
US $3.97 |
||
|
10
|
10
4FW-12659-00-00 Damper, Air Shroud 2 |
4FW-12659-00-00 |
from US $1.98 |
||
|
11
|
11
5BM-12611-00-00
Fan
|
5BM-12611-00-00 |
— | ||
|
12
|
12
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
14
|
14
4JP-12631-01-00 Deflector 1 |
4JP-12631-01-00 |
US $10.87 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
