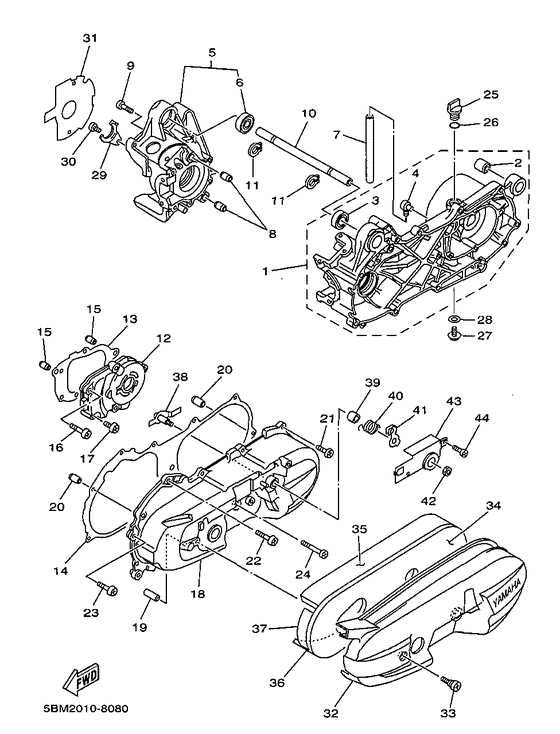

Crankcase Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-15110-01-00 Crankcase Assy 1 |
5BM-15110-01-00 |
US $361.12 |
||
| replacement | |||||
|
01
|
01
5BM-15110-00-00 Crankcase Assy 1 |
5BM-15110-00-00 |
US $361.12 |
||
|
02
|
02
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $7.79 |
||
|
03
|
03
93306-00319-00 Bearing |
93306-00319-00 |
from US $24.17 |
||
| replacement | |||||
|
03
|
03
93306-00316-00 Bearing |
93306-00316-00 |
from US $19.52 |
||
|
04
|
04
3YJ-15371-00-00 Breather |
3YJ-15371-00-00 |
from US $2.27 |
||
|
05
|
05
5BM-15120-00-00
Crankcase Assy 2
|
5BM-15120-00-00 |
— | ||
|
06
|
06
93306-00319-00 Bearing |
93306-00319-00 |
from US $24.17 |
||
| replacement | |||||
|
06
|
06
93306-00316-00 Bearing |
93306-00316-00 |
from US $19.52 |
||
|
07
|
07
90446-11347-00 Hose |
90446-11347-00 |
from US $3.97 |
||
| replacement | |||||
|
07
|
07
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
08
|
08
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
09
|
09
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
10
|
10
3KJ-15317-00-00
Spacer, Engine Mount
|
3KJ-15317-00-00 |
— | ||
|
11
|
11
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
12
|
12
3KJ-15421-00-00 Cover, Crankcase 2 |
3KJ-15421-00-00 |
from US $59.47 |
||
|
13
|
13
4FB-15461-00-00 Gasket, Crankcase Cover 2 |
4FB-15461-00-00 |
from US $11.48 |
||
|
14
|
14
5BM-15451-00-00 Gasket, Crankcase Cover 1 |
5BM-15451-00-00 |
from US $14.31 |
||
|
15
|
15
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
16
|
16
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
17
|
17
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
18
|
18
5BM-15411-00-00 Cover, Crankcase 1 |
5BM-15411-00-00 |
US $209.40 |
||
| replacement | |||||
|
18
|
18
5BM-15411-01-00 Cover, Crankcase 1 |
5BM-15411-01-00 |
US $209.40 |
||
|
19
|
19
3KJ-15659-00-00 Shaft |
3KJ-15659-00-00 |
from US $5.58 |
||
|
20
|
20
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
21
|
21
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
21
|
21
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
22
|
22
97880-06025-00 Screw, Pan Head |
97880-06025-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
23
|
23
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
24
|
24
98507-06065-00 Screw, Pan Head |
98507-06065-00 |
from US $2.27 |
||
|
25
|
25
2T4-15363-00-00 Plug, Oil |
2T4-15363-00-00 |
from US $5.38 |
||
| replacement | |||||
|
25
|
25
4J2-15363-10-00 Plug, Oil |
4J2-15363-10-00 |
from US $2 |
||
|
26
|
26
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
26
|
26
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
27
|
27
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
27
|
27
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
27
|
27
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
28
|
28
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
28
|
28
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
29
|
29
1HV-15128-00-00
Holder
|
1HV-15128-00-00 |
— | ||
|
30
|
30
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
30
|
30
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
31
|
31
4FB-15462-00-00 Gasket, Crankcase Cover 3 |
4FB-15462-00-00 |
from US $9.21 |
||
|
32
|
32
5BM-15431-00-00 Cover, Crankcase 3 |
5BM-15431-00-00 |
US $56.65 |
||
|
33
|
33
3KJ-15481-00-00 Bolt 1 |
3KJ-15481-00-00 |
from US $5.24 |
||
|
34
|
34
3KJ-15316-00-00 Damper 1 |
3KJ-15316-00-00 |
from US $9.32 |
||
|
35
|
35
3YJ-15326-00-00 Damper 2 |
3YJ-15326-00-00 |
US $12.75 |
||
|
36
|
36
3KJ-15335-00-00 Damper 3 |
3KJ-15335-00-00 |
US $6.28 |
||
|
37
|
37
3KJ-15337-00-00 Damper 4 |
3KJ-15337-00-00 |
from US $2.41 |
||
|
38
|
38
5BM-15460-01-00 Stopper Lever Assy |
5BM-15460-01-00 |
US $19.83 |
||
| replacement | |||||
|
38
|
38
5BM-15460-02-00 Stopper Lever Assy |
5BM-15460-02-00 |
US $19.83 |
||
|
39
|
39
90380-12012-00 Bush, Solid |
90380-12012-00 |
from US $6.13 |
||
|
40
|
40
90508-162B3-00 Spring, Torsion |
90508-162B3-00 |
from US $1.40 |
||
|
41
|
41
5BM-1546C-00-00 Holder |
5BM-1546C-00-00 |
US $8.64 |
||
|
42
|
42
90170-08261-00 Nut |
90170-08261-00 |
from US $1.84 |
||
|
43
|
43
5BM-15419-00-00 Cover, Shifter 1 |
5BM-15419-00-00 |
US $5.58 |
||
|
44
|
44
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
