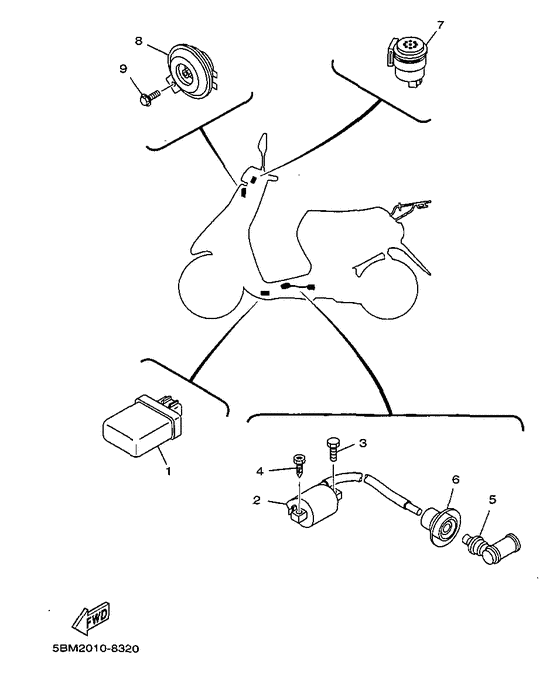

Electrical 1 Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-85540-00-00 C.d.i. Unit Assy |
5BM-85540-00-00 |
US $185.13 |
||
| replacement | |||||
|
01
|
01
5BM-H5540-20-00 C.d.i. Unit Assy |
5BM-H5540-20-00 |
from US $185.13 |
||
|
02
|
02
5BM-82310-00-00 Ignition Coil Assy |
5BM-82310-00-00 |
from US $58.88 |
||
| replacements | |||||
|
02
|
02
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
02
|
02
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
02
|
02
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
02
|
02
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
03
|
03
97007-06016-00 Bolt |
97007-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
03
|
03
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
04
|
04
90153-06034-00 Screw, Hexagon |
90153-06034-00 |
from US $1.70 |
||
|
05
|
05
2VT-82370-00-00 Plug Cap Assy |
2VT-82370-00-00 |
from US $19.27 |
||
| replacement | |||||
|
05
|
05
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
06
|
06
3KJ-82372-00-00 Seal, Plug Cap |
3KJ-82372-00-00 |
from US $4.11 |
||
|
07
|
07
3VP-83350-10-00 Flasher Relay AssyDenso |
3VP-83350-10-00 |
US $65.63 |
||
| replacement | |||||
|
07
|
07
3VP-83350-00-00 Flasher Relay AssyDenso |
3VP-83350-00-00 |
US $65.63 |
||
|
08
|
08
5BM-83370-00-00
Horn Assy
|
5BM-83370-00-00 |
— | ||
|
09
|
09
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
