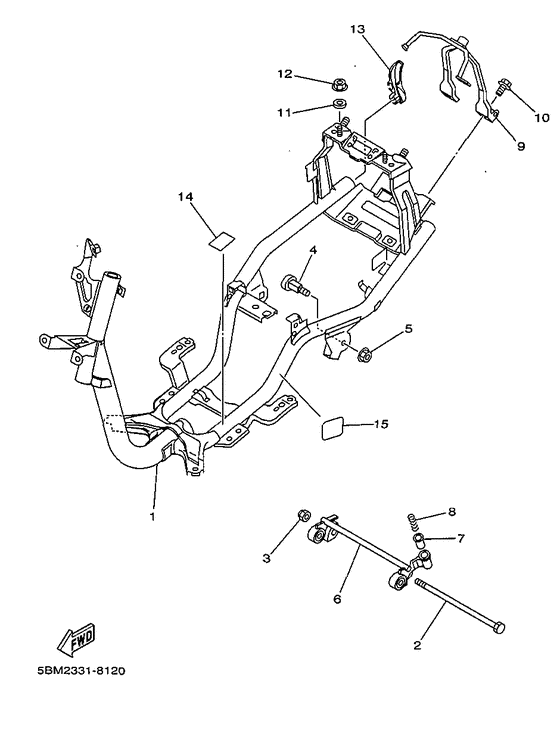

Frame Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-21110-00-00
Frame Comp
|
5BM-21110-00-00 |
— | ||
|
02
|
02
3KJ-21481-00-00 Bolt, Engine Mounting 1 |
3KJ-21481-00-00 |
US $16.43 |
||
|
03
|
03
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
04
|
04
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
05
|
05
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
06
|
06
5BM-21410-00-00 Engine Bracket Comp |
5BM-21410-00-00 |
US $78.59 |
||
| replacement | |||||
|
06
|
06
5BM-21410-02-00 Engine Bracket Comp |
5BM-21410-02-00 |
US $78.59 |
||
|
07
|
07
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00
Damper
|
3WG-F139X-00-00 |
— | ||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
5BM-21232-00-00 Reinforcement, Tail |
5BM-21232-00-00 |
US $51.21 |
||
|
10
|
10
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
11
|
11
90387-061Y1-00 Washer, Plate |
90387-061Y1-00 |
US $2.69 |
||
| replacement | |||||
|
11
|
11
90201-06040-00 Washer, Plate |
90201-06040-00 |
from US $2.69 |
||
|
12
|
12
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
13
|
13
5BM-21399-00-00 Cap |
5BM-21399-00-00 |
US $6.76 |
||
|
14
|
14
5BM-21268-00-00 Seal |
5BM-21268-00-00 |
from US $7.79 |
||
|
15
|
15
5BM-21652-00-00 Protector |
5BM-21652-00-00 |
from US $11.68 |
||
