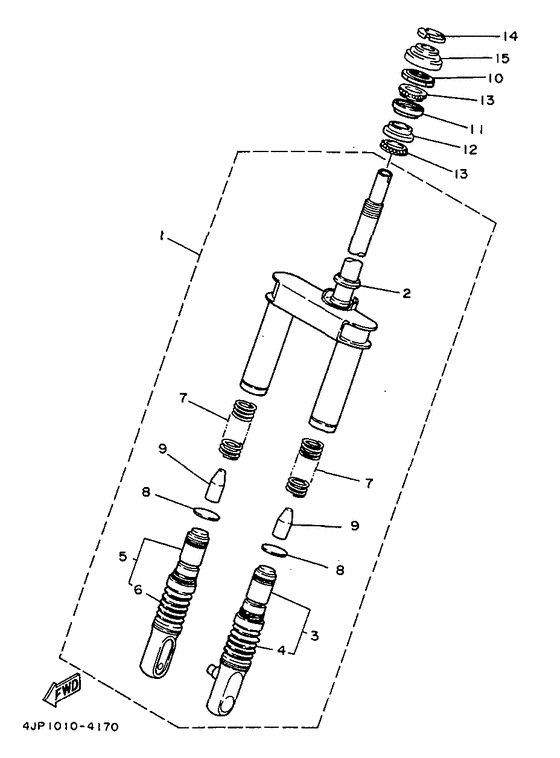

Front fork Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-23100-00-00 Front Fork Assy |
5BM-23100-00-00 |
US $366.92 |
||
| replacement | |||||
|
01
|
01
5BM-23100-01-00 Front Fork Assy |
5BM-23100-01-00 |
US $366.92 |
||
|
02
|
02
3YJ-23414-00-00 Race, Ball 4 |
3YJ-23414-00-00 |
from US $8.78 |
||
|
03
|
03
5BM-23110-00-00 Inner Tube Comp.1 |
5BM-23110-00-00 |
US $111.08 |
||
|
04
|
04
3YJ-23191-00-00 Boot |
3YJ-23191-00-00 |
from US $16.86 |
||
|
05
|
05
3YJ-23120-00-00 Inner Tube Comp (2) |
3YJ-23120-00-00 |
from US $77.17 |
||
|
06
|
06
3YJ-23191-00-00 Boot |
3YJ-23191-00-00 |
from US $16.86 |
||
|
07
|
07
3YJ-23141-00-00 Spring, Front Fork |
3YJ-23141-00-00 |
US $11.75 |
||
|
08
|
08
2E9-23143-00-00 Seat, Spring Lower |
2E9-23143-00-00 |
from US $5.95 |
||
|
09
|
09
54V-23195-00-00 Rubber |
54V-23195-00-00 |
US $13.60 |
||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
3KJ-23411-01-00 Race, Ball 1 |
3KJ-23411-01-00 |
from US $10.77 |
||
|
11
|
11
2E9-23412-00-00 Race, Ball 2 |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
11
|
11
2SA-23412-00-00 |
2SA-23412-00-00 |
from US $22.67 |
||
|
12
|
12
2E9-23413-01-00 Race, Ball 3 |
2E9-23413-01-00 |
from US $4.32 |
||
|
13
|
13
93505-32042-00 Ball |
93505-32042-00 |
from US $6.94 |
||
|
14
|
14
2E9-23454-00-00 Nut, Fitting 2 |
2E9-23454-00-00 |
from US $5.67 |
||
|
15
|
15
3YJ-23415-10-00 Cover, Ball Race 1 |
3YJ-23415-10-00 |
US $4.73 |
||
