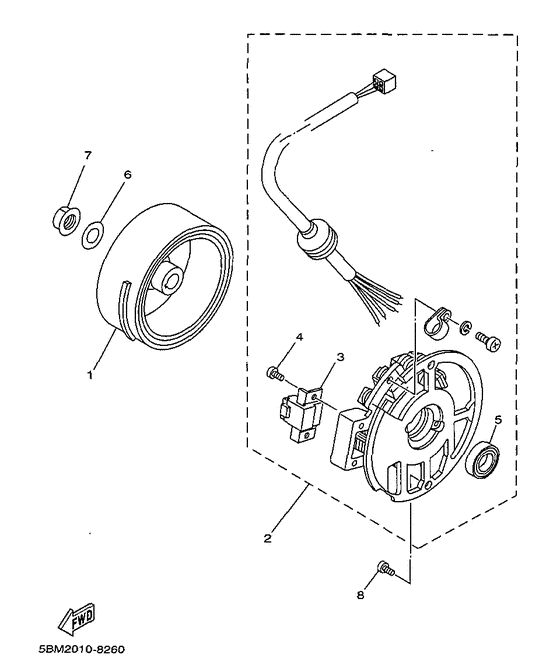

Generator Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-81450-00-00 Rotor Assy |
5BM-81450-00-00 |
US $119.78 |
||
| replacement | |||||
|
01
|
01
5BM-81450-02-00 Rotor Assy |
5BM-81450-02-00 |
from US $97.18 |
||
|
02
|
02
5BM-81410-01-00 Stator Assy |
5BM-81410-01-00 |
US $180.71 |
||
| replacement | |||||
|
02
|
02
5BM-81410-02-00
Stator Assy
|
5BM-81410-02-00 |
— | ||
|
03
|
03
4JP-85595-00-00 Coil, Pulser |
4JP-85595-00-00 |
from US $39.87 |
||
| replacement | |||||
|
03
|
03
4JP-85595-01-00 Coil, Pulser |
4JP-85595-01-00 |
from US $39.87 |
||
|
04
|
04
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
05
|
05
93104-19097-00 Oil Seal |
93104-19097-00 |
from US $4.82 |
||
|
06
|
06
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.07 |
||
|
07
|
07
90170-10219-00 Nut |
90170-10219-00 |
from US $1.35 |
||
| replacement | |||||
|
07
|
07
90170-10011-00 Nut |
90170-10011-00 |
from US $1.35 |
||
|
08
|
08
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
