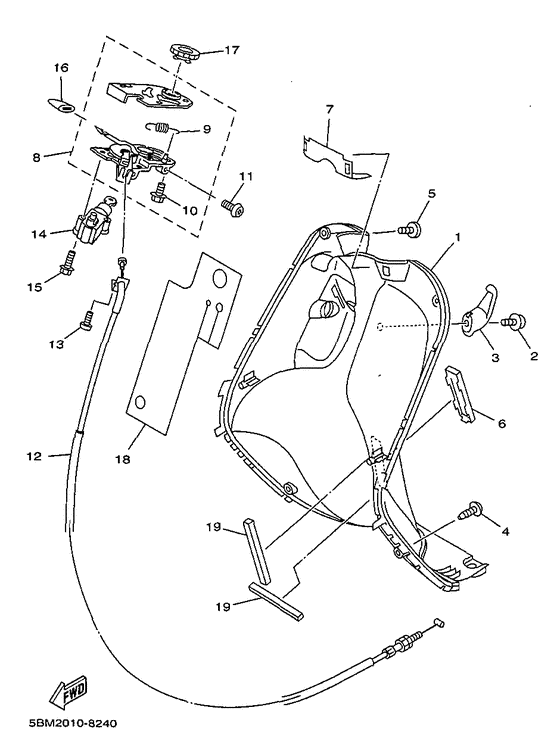

Leg shield Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-28311-00-00 Leg Shield 1Ur yb |
5BM-28311-00-00 |
US $159.20 |
||
|
01
|
01
5BM-28311-10-00
Leg Shield 1
Ur gray |
5BM-28311-10-00 |
— | ||
|
02
|
02
98907-06020-00 Screw, Bind |
98907-06020-00 |
from US $1.33 |
||
|
03
|
03
5BM-28257-00-00 Hook 1 |
5BM-28257-00-00 |
US $7.93 |
||
|
04
|
04
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
04
|
04
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
05
|
05
3KJ-24453-00-00 Screw |
3KJ-24453-00-00 |
from US $1.98 |
||
|
06
|
06
14T-28349-30-00 CapUr lggr |
14T-28349-30-00 |
from US $2.83 |
||
|
06
|
06
14T-28349-40-00 CapUr yb |
14T-28349-40-00 |
from US $7.37 |
||
| replacement | |||||
|
06
|
06
3WV-F8349-10-00 CapUr yb |
3WV-F8349-10-00 |
from US $8.08 |
||
|
07
|
07
5BM-28349-00-00
Cap
|
5BM-28349-00-00 |
— | ||
|
08
|
08
5BM-2830U-00-00 Lock Set |
5BM-2830U-00-00 |
US $130.81 |
||
| replacement | |||||
|
08
|
08
5GD-2830U-00-00 Lock Set |
5GD-2830U-00-00 |
US $130.81 |
||
|
09
|
09
90506-05515-00 Spring, Tension |
90506-05515-00 |
US $2.13 |
||
|
10
|
10
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $0.90 |
||
|
11
|
11
90149-06250-00 Screw |
90149-06250-00 |
from US $1.70 |
||
|
12
|
12
5BM-2637E-00-00
Cable, Control 1
|
5BM-2637E-00-00 |
— | ||
|
13
|
13
98507-06008-00 Screw |
98507-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
13
|
13
98517-06008-00 Screw |
98517-06008-00 |
from US $2.41 |
||
|
14
|
14
5BM-21708-00-00 Lock Assy 2 |
5BM-21708-00-00 |
US $52.06 |
||
|
15
|
15
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
|
16
|
16
5BM-2836X-00-00 Knob, 1 |
5BM-2836X-00-00 |
US $2.05 |
||
|
17
|
17
5BM-82552-00-00 Cap, Switch |
5BM-82552-00-00 |
US $12.04 |
||
|
18
|
18
5BM-28336-00-00
Plate
|
5BM-28336-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
7TD-14747-00-00 Damper, Muffler |
7TD-14747-00-00 |
from US $0.79 |
||
