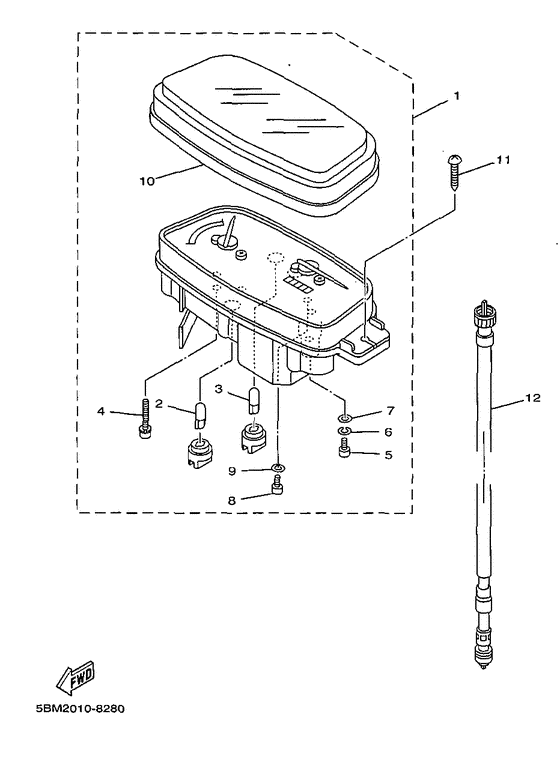

Meter Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-83510-00-00 Speedometer Assy |
5BM-83510-00-00 |
US $281.85 |
||
|
02
|
02
2GV-83517-00-00 Bulb (12V-1.7W) |
2GV-83517-00-00 |
from US $4.53 |
||
| replacement | |||||
|
02
|
02
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.32 |
||
|
03
|
03
42X-83517-00-00 Bulb (14V-3.4W) |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
03
|
03
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.32 |
||
|
04
|
04
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
05
|
05
98501-04010-00 Screw, Pan Head |
98501-04010-00 |
US $1.07 |
||
| replacement | |||||
|
05
|
05
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
06
|
06
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
06
|
06
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
07
|
07
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
08
|
08
98502-03010-00 Screw, Pan Head |
98502-03010-00 |
from US $1.98 |
||
| replacement | |||||
|
08
|
08
98580-03010-00 Screw Pan Head |
98580-03010-00 |
from US $1.98 |
||
|
09
|
09
92901-03100-00 Washer, Spring |
92901-03100-00 |
from US $1.21 |
||
| replacement | |||||
|
09
|
09
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
10
|
10
5BM-83511-00-00 Lens, Speedometer |
5BM-83511-00-00 |
US $40.07 |
||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
12
|
12
5BM-83550-00-00 Speedometer Cable Assy |
5BM-83550-00-00 |
US $29.04 |
||
| replacement | |||||
|
12
|
12
5BM-83550-01-00 Speedometer Cable Assy |
5BM-83550-01-00 |
US $29.04 |
||
