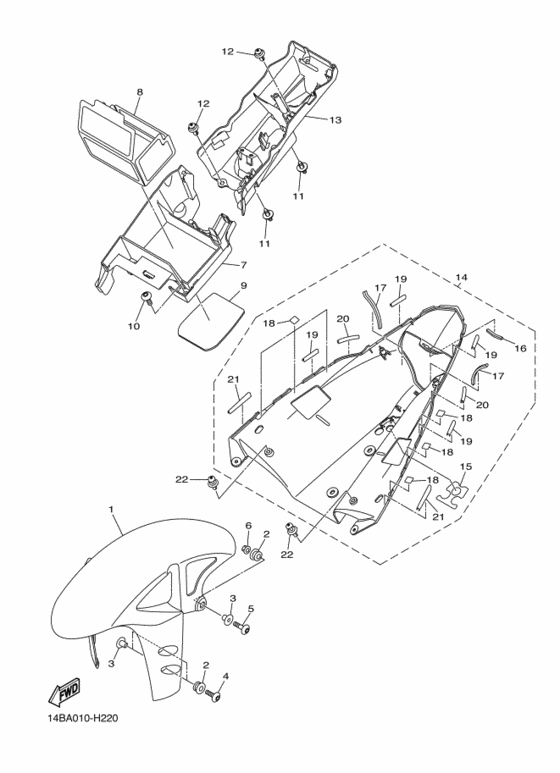

Fender Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 14BA
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Note
- .競技用モデル
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-21511-00-P0 Fender, FrontＳＭＸ |
14B-21511-00-P0 |
from US $174.08 |
||
|
2
|
2
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
3
|
3
903-87065-J6-00
Collar
カラー; |
903-87065-J6-00 |
— | ||
| replacement | |||||
|
3
|
3
903-87061-59-00 Collarカラー; |
903-87061-59-00 |
from US $1.56 |
||
|
4
|
4
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $1.84 |
||
|
5
|
5
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
6
|
6
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
7
|
7
14B-8212B-00-00 Box, Battery 1ボツクス，バツテリー １; |
14B-8212B-00-00 |
from US $38.96 |
||
|
8
|
8
14B-82122-00-00 Seat, Batteryシート，バツテリ; |
14B-82122-00-00 |
US $66.35 |
||
|
9
|
9
14B-82176-00-00 Damper |
14B-82176-00-00 |
from US $13.32 |
||
|
10
|
10
90149-06302-00 Screw |
90149-06302-00 |
from US $3.83 |
||
|
11
|
11
902-69070-77-00 Rivetリベツト; |
902-69070-77-00 |
from US $1.84 |
||
|
12
|
12
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.36 |
||
|
13
|
13
14B-8212C-00-00 Box, Battery 2ボツクス，バツテリー ２; |
14B-8212C-00-00 |
from US $17.57 |
||
|
14
|
14
14B-21600-00-P0 Rear Fender AssyＳＭＸ |
14B-21600-00-P0 |
from US $216.68 |
||
|
15
|
15
14B-21669-00-00 Seal．シール; |
14B-21669-00-00 |
from US $6.38 |
||
|
16
|
16
4GY-2174X-00-00 Damper．ダンパ; |
4GY-2174X-00-00 |
from US $2.55 |
||
|
17
|
17
3CV-28372-00-00 Damper．ダンパ; |
3CV-28372-00-00 |
from US $3.54 |
||
|
18
|
18
4C8-21735-00-00 Seal 2．シール ２; |
4C8-21735-00-00 |
from US $1.70 |
||
|
19
|
19
5VY-21732-00-00 Seal 1．シール １; |
5VY-21732-00-00 |
from US $3.40 |
||
|
20
|
20
5PW-21732-00-00 Seal 1．シール １; |
5PW-21732-00-00 |
from US $3.26 |
||
|
21
|
21
14B-21732-00-00 Seal 1．シール １; |
14B-21732-00-00 |
from US $3.40 |
||
|
22
|
22
902-69070-76-00 Rivet(4Jh)リベツト; |
902-69070-76-00 |
from US $1.70 |
||
