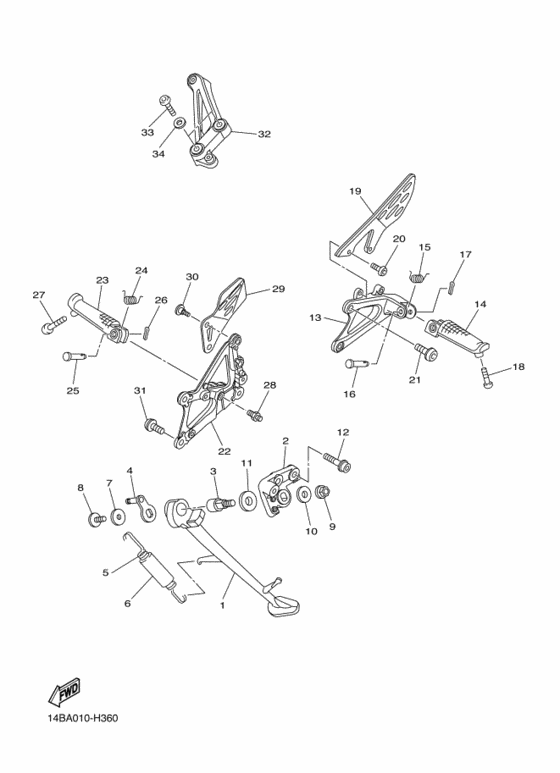

Stand & Footrest Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2009
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 14BA
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Note
- .競技用モデル
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-27311-00-00 Stand, Side |
14B-27311-00-00 |
from US $196.27 |
||
|
2
|
2
14B-27321-00-00 Bracket, Side Stand |
14B-27321-00-00 |
from US $196.19 |
||
|
3
|
3
14B-27351-00-00 Guide, Side Stand |
14B-27351-00-00 |
from US $39.38 |
||
|
4
|
4
14B-27352-00-00 Hook, Side Stand |
14B-27352-00-00 |
from US $10.48 |
||
|
5
|
5
90506-18008-00 Spring, Tension |
90506-18008-00 |
from US $8.50 |
||
|
6
|
6
90445-19002-00 Hose (L60)ホース ; Ｌ６０ |
90445-19002-00 |
from US $4.11 |
||
|
7
|
7
90201-081R9-00 Washer, Plateワツシヤ，プレート; |
90201-081R9-00 |
from US $1.98 |
||
|
8
|
8
901-11080-73-00 Bolt, Hex. Socket Button |
901-11080-73-00 |
from US $3.54 |
||
|
9
|
9
956-07102-00-00 Nut, U Flangeナツト，Ｕ フランジ; |
956-07102-00-00 |
from US $5.67 |
||
|
10
|
10
90201-101J1-00 Washer, Plateワツシヤ，プレート; |
90201-101J1-00 |
from US $1.56 |
||
|
11
|
11
90201-146F9-00 Washer, Plateワツシヤ，プレート; |
90201-146F9-00 |
from US $1.84 |
||
|
12
|
12
90109-10002-00 Bolt, Hexagon Socket |
90109-10002-00 |
from US $4.96 |
||
| replacement | |||||
|
12
|
12
901-10100-26-00 Bolt, Hexagon Socket Head |
901-10100-26-00 |
from US $2.55 |
||
|
13
|
13
14B-27442-00-00 Bracket 2 |
14B-27442-00-00 |
from US $90.36 |
||
|
14
|
14
5JJ-27451-00-00 Footrestフートレスト; |
5JJ-27451-00-00 |
from US $67.97 |
||
|
15
|
15
90508-18134-00 Spring, Torsionスプリング，トーシヨン; |
90508-18134-00 |
from US $2.41 |
||
|
16
|
16
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
17
|
17
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
17
|
17
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.36 |
||
|
18
|
18
90109-08174-00 Bolt |
90109-08174-00 |
from US $3.40 |
||
| replacement | |||||
|
18
|
18
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.40 |
||
|
19
|
19
14B-27445-00-00 Plate 1プレート １; |
14B-27445-00-00 |
from US $58.72 |
||
|
20
|
20
90111-06003-00 Bolt, Button Head |
90111-06003-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.07 |
||
|
21
|
21
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.70 |
||
|
22
|
22
14B-27443-00-00 Bracket 3 |
14B-27443-00-00 |
from US $131.39 |
||
|
23
|
23
5JJ-27461-00-00 Footrestフートレスト; |
5JJ-27461-00-00 |
from US $67.97 |
||
|
24
|
24
90508-18135-00 Spring, Torsionスプリング，トーシヨン; |
90508-18135-00 |
from US $2.02 |
||
|
25
|
25
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
26
|
26
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
26
|
26
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.36 |
||
|
27
|
27
90109-08174-00 Bolt |
90109-08174-00 |
from US $3.40 |
||
| replacement | |||||
|
27
|
27
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.40 |
||
|
28
|
28
4C8-27813-00-00 Pin, Pedal Crank |
4C8-27813-00-00 |
from US $14.73 |
||
| replacement | |||||
|
28
|
28
4C8-27813-09-00 PIN, PEDAL CRANK |
4C8-27813-09-00 |
from US $11.02 |
||
|
29
|
29
14B-27446-00-00 Plate 2プレート ２; |
14B-27446-00-00 |
from US $58.72 |
||
|
30
|
30
90109-066F0-00 Bolt |
90109-066F0-00 |
from US $3.38 |
||
|
31
|
31
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.70 |
||
|
32
|
32
14B-2742L-00-00 Bracket 5 |
14B-2742L-00-00 |
from US $143.69 |
||
|
33
|
33
90111-08066-00 Bolt, Hexagon Socket Head |
90111-08066-00 |
from US $1.84 |
||
| replacement | |||||
|
33
|
33
90110-08220-00 Bolt, Hexagon Socket Head |
90110-08220-00 |
from US $1.84 |
||
|
34
|
34
13S-27417-00-00 Washer, Footrestワツシヤ，フートレスト; |
13S-27417-00-00 |
from US $7.51 |
||
