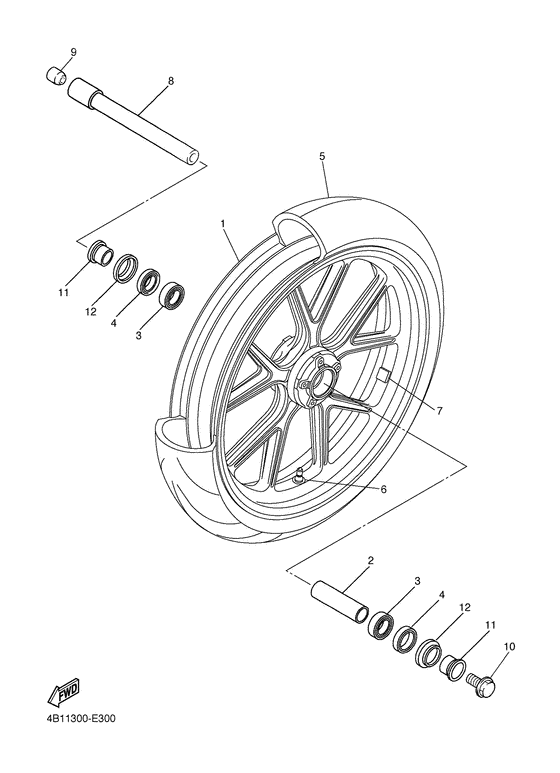

Front wheel Diagram Yamaha YZF-R1 R1
- Year
- 2006
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 4B12
- Sales region
- France (010)
- Базовая модель
- YZF-R1S
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4B1-2516C-00-00
Wheel, Forged
|
4B1-2516C-00-00 |
— | ||
|
02
|
02
4XV-25117-00-00 Spacer, Bearing |
4XV-25117-00-00 |
from US $15.30 |
||
|
03
|
03
93306-00420-00 Bearing |
93306-00420-00 |
from US $20.12 |
||
|
04
|
04
93106-28043-00 Oil Seal |
93106-28043-00 |
from US $4.02 |
||
|
06
|
06
939-00000-30-00 Valve, Rim (Tr412)Taiheiyo |
939-00000-30-00 |
from US $7.65 |
||
|
07
|
07
4B1-25398-00-00 Balancer, WheelUn 10g |
4B1-25398-00-00 |
US $44.50 |
||
|
08
|
08
5PW-25181-00-00 Axle, Wheel |
5PW-25181-00-00 |
from US $58.03 |
||
| replacement | |||||
|
08
|
08
2C0-25181-00-00 Axle, Wheel |
2C0-25181-00-00 |
from US $58.03 |
||
|
09
|
09
5PW-25188-00-00 Cap |
5PW-25188-00-00 |
from US $2.55 |
||
|
10
|
10
90105-14002-00 Bolt, Flange |
90105-14002-00 |
from US $6.94 |
||
|
11
|
11
4XV-25186-00-00 Collar, Wheel |
4XV-25186-00-00 |
from US $12.75 |
||
| replacement | |||||
|
11
|
11
903-87220-16-00 Collar, Wheel |
903-87220-16-00 |
from US $12.47 |
||
|
12
|
12
4XV-25118-00-00 Cover, Hub Dust |
4XV-25118-00-00 |
from US $3.68 |
||
