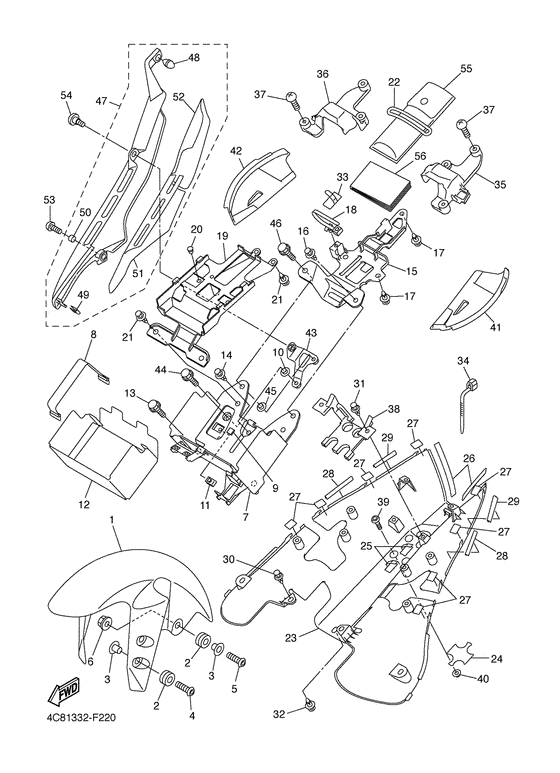

Pare boue Diagram Yamaha YZF-R1 R1
- Year
- 2008
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4C89
- Sales region
- France (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5PW-21511-00-P0
Fender, Front
Ur vrc1 pour bwc1 |
5PW-21511-00-P0 |
— | ||
| replacement | |||||
|
01
|
01
5PW-21511-01-P0 Fender, FrontUr vrc1 pour bwc1 |
5PW-21511-01-P0 |
from US $175.79 |
||
|
01
|
01
5PW-21511-00-P1 Fender, FrontUr pour dpbmc |
5PW-21511-00-P1 |
from US $178.25 |
||
| replacements | |||||
|
01
|
01
5PW-21511-01-P1 Fender, FrontUr pour dpbmc |
5PW-21511-01-P1 |
from US $178.25 |
||
|
01
|
01
5PW-21511-02-P1 Ur pour dpbmc |
5PW-21511-02-P1 |
US $213.39 |
||
|
01
|
01
5PW-21511-00-PE Fender, FrontUr pour dnmg |
5PW-21511-00-PE |
from US $180.88 |
||
| replacements | |||||
|
01
|
01
5PW-21511-01-PE Fender, FrontUr pour dnmg |
5PW-21511-01-PE |
from US $205.86 |
||
|
01
|
01
5PW-21511-02-PE Ur pour dnmg |
5PW-21511-02-PE |
US $248.69 |
||
|
02
|
02
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
03
|
03
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
03
|
03
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
04
|
04
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $1.84 |
||
|
05
|
05
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
06
|
06
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
07
|
07
4C8-8212B-00-00 Box, Battery 1 |
4C8-8212B-00-00 |
from US $9.70 |
||
|
08
|
08
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
09
|
09
4C8-21649-00-00 Damper |
4C8-21649-00-00 |
US $1.40 |
||
|
10
|
10
90387-05021-00 Collar |
90387-05021-00 |
from US $2.70 |
||
|
11
|
11
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
11
|
11
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
12
|
12
4C8-82122-00-00 Seat, Battery |
4C8-82122-00-00 |
from US $49.48 |
||
|
13
|
13
90109-06043-00 Bolt |
90109-06043-00 |
from US $1.56 |
||
|
14
|
14
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.70 |
||
|
15
|
15
4C8-8212C-00-00 Box, Battery 2 |
4C8-8212C-00-00 |
from US $6.31 |
||
|
16
|
16
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.70 |
||
|
17
|
17
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
18
|
18
90464-34002-00 Clamp |
90464-34002-00 |
from US $1.70 |
||
|
19
|
19
4C8-2117T-00-00
Cover 5
|
4C8-2117T-00-00 |
— | ||
|
20
|
20
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
20
|
20
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
21
|
21
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.70 |
||
|
22
|
22
4XV-21376-00-00 Band, Tool |
4XV-21376-00-00 |
from US $5.10 |
||
|
23
|
23
4C8-21611-00-P2 Fender, RearUr pour bwc1 |
4C8-21611-00-P2 |
US $167.17 |
||
|
23
|
23
4C8-21611-00-P5
Fender, Rear
Ur pour dnmg |
4C8-21611-00-P5 |
— | ||
|
23
|
23
4C8-21611-00-P0 Fender, RearUr pour dpbmc |
4C8-21611-00-P0 |
from US $158.60 |
||
|
24
|
24
5VY-21669-00-00 Seal |
5VY-21669-00-00 |
from US $7.33 |
||
|
25
|
25
90465-04020-00 Clamp |
90465-04020-00 |
from US $1.98 |
||
|
26
|
26
4C8-21639-00-00 Damper 2 |
4C8-21639-00-00 |
from US $2.27 |
||
|
27
|
27
4C8-21735-00-00 Seal 2 |
4C8-21735-00-00 |
from US $1.70 |
||
|
28
|
28
5VY-21732-00-00 Seal 1 |
5VY-21732-00-00 |
from US $3.40 |
||
|
29
|
29
5PW-21732-00-00 Seal 1 |
5PW-21732-00-00 |
from US $3.26 |
||
|
30
|
30
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.70 |
||
|
31
|
31
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.70 |
||
|
32
|
32
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
33
|
33
90465-04020-00 Clamp |
90465-04020-00 |
from US $1.98 |
||
|
34
|
34
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
34
|
34
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
35
|
35
4C8-2163A-00-00 Cover, Rear Fender 1 |
4C8-2163A-00-00 |
from US $3.38 |
||
|
36
|
36
4C8-2163E-00-00 Cover, Rear Fender 2 |
4C8-2163E-00-00 |
from US $3.38 |
||
|
37
|
37
97702-50014-00 Screw, Truss Head Tapping |
97702-50014-00 |
from US $1.42 |
||
| replacement | |||||
|
37
|
37
97707-50014-00 Screw, Truss Head Tapping |
97707-50014-00 |
from US $1.42 |
||
|
38
|
38
4C8-21652-00-00 Protector |
4C8-21652-00-00 |
from US $15.57 |
||
|
39
|
39
90111-06052-00 Bolt,hex. Socket But |
90111-06052-00 |
from US $1.98 |
||
| replacement | |||||
|
39
|
39
901-11060-53-00 Bolt,hex. Socket Button |
901-11060-53-00 |
from US $1.98 |
||
|
40
|
40
90387-06071-00 Collar |
90387-06071-00 |
from US $5.53 |
||
|
41
|
41
4C8-2164K-00-00 Patch 5 |
4C8-2164K-00-00 |
from US $25.08 |
||
|
42
|
42
4C8-2164L-00-00 Patch 6 |
4C8-2164L-00-00 |
from US $25.08 |
||
|
43
|
43
4C8-2164F-00-00 Stay 1 |
4C8-2164F-00-00 |
from US $16.15 |
||
|
44
|
44
90119-05239-00 Bolt, With Washer |
90119-05239-00 |
from US $2.69 |
||
| replacement | |||||
|
44
|
44
901-19050-22-00 Bolt, With Washer |
901-19050-22-00 |
from US $2.69 |
||
|
45
|
45
90387-05017-00 Collar |
90387-05017-00 |
from US $2.69 |
||
|
46
|
46
90119-05193-00 Bolt, With Washer |
90119-05193-00 |
from US $1.28 |
||
|
47
|
47
4C8-27406-00-00 Cover Assy |
4C8-27406-00-00 |
from US $71.29 |
||
|
48
|
48
5VY-14757-00-00 Damper, Muffler 2 |
5VY-14757-00-00 |
from US $3.12 |
||
|
49
|
49
5GM-28379-00-00
Hook
|
5GM-28379-00-00 |
— | ||
| replacement | |||||
|
49
|
49
5GM-28379-01-00 Hook |
5GM-28379-01-00 |
from US $2.36 |
||
|
50
|
50
90560-05N33-00 Spacer |
90560-05N33-00 |
from US $3.83 |
||
|
51
|
51
4C8-27498-00-00 Seat 1 |
4C8-27498-00-00 |
from US $11.45 |
||
|
52
|
52
4C8-27499-00-00 Seat 2 |
4C8-27499-00-00 |
from US $7.19 |
||
|
53
|
53
92017-05012-00 Bolt, Button |
92017-05012-00 |
from US $1.56 |
||
|
54
|
54
90111-05011-00 Bolt, Hex. Socket Button |
90111-05011-00 |
from US $1.84 |
||
|
55
|
55
4C8-28100-00-00 Tool Kit |
4C8-28100-00-00 |
from US $85.63 |
||
|
56
|
56
4C8-28199-F1-00
Manual,owner`s
|
4C8-28199-F1-00 |
— | ||
