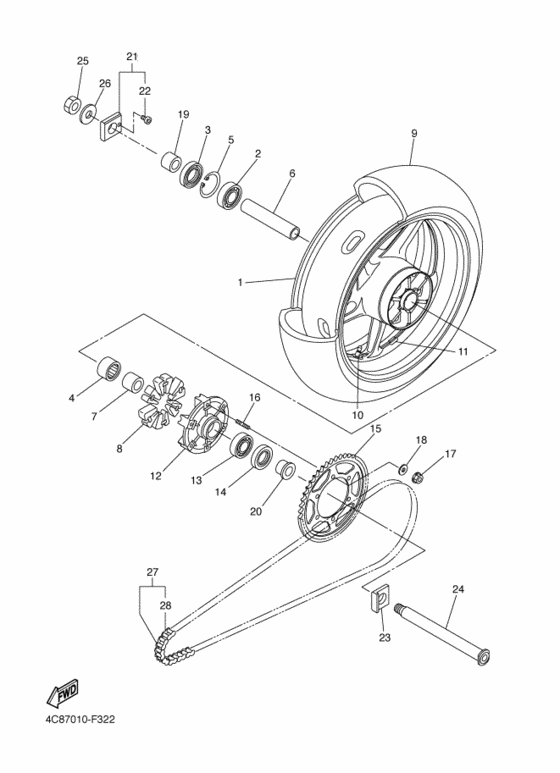

Rear Wheel Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 4C8E
- Sales region
- Japan (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VY-25338-00-98 Cast Wheel, Rearキヤストホイール，リヤ; ＬＧＢ |
5VY-25338-00-98 |
from US $926.64 |
||
|
2
|
2
933-06205-31-00 Bearing |
933-06205-31-00 |
from US $36.89 |
||
|
3
|
3
931-06400-13-00 Oil Sealオイルシール; |
931-06400-13-00 |
from US $8.08 |
||
|
4
|
4
933-17435-80-00 Bearing |
933-17435-80-00 |
from US $43.11 |
||
|
5
|
5
93420-61M07-00 Circlipサークリツプ; |
93420-61M07-00 |
from US $4.39 |
||
|
6
|
6
5PW-25317-00-00 Spacer, Bearingスペーサ，ベアリング; |
5PW-25317-00-00 |
from US $21.96 |
||
|
7
|
7
4XV-25383-00-00 Collar, Wheelカラー，ホイール; |
4XV-25383-00-00 |
from US $27.77 |
||
|
8
|
8
2C0-25364-00-00 Damper |
2C0-25364-00-00 |
from US $9.92 |
||
|
10
|
10
939-00000-30-00 Valve, Rim (Tr412)バルブ，リム ; ＴＲ４１２; ＴＡＩＨＥＩＹＯ |
939-00000-30-00 |
from US $7.65 |
||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイール ; １０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $7.65 |
||
|
11
|
11
5MT-25398-10-00 Balancer, Wheel (20G)バランサ，ホイール ; ２０Ｇ; ＵＮ |
5MT-25398-10-00 |
from US $7.65 |
||
|
11
|
11
5MT-25398-20-00 Balancer, Wheel (30G)バランサ，ホイール ; ３０Ｇ; ＵＮ |
5MT-25398-20-00 |
from US $7.65 |
||
|
12
|
12
5SL-25366-00-00 Clutch, Hub |
5SL-25366-00-00 |
from US $180.99 |
||
|
13
|
13
933-06205-31-00 Bearing |
933-06205-31-00 |
from US $36.89 |
||
|
14
|
14
931-06400-13-00 Oil Sealオイルシール; |
931-06400-13-00 |
from US $8.08 |
||
|
15
|
15
5VY-25445-20-00 Sprocket, Driven (45T)４５Ｔ |
5VY-25445-20-00 |
from US $69.36 |
||
|
16
|
16
90116-10485-00 Bolt, Stud |
90116-10485-00 |
from US $2.69 |
||
|
17
|
17
90185-10009-00 Nut, Self-Locking |
90185-10009-00 |
from US $7.65 |
||
|
18
|
18
90201-10021-00 Washer, Plateワツシヤ，プレート; |
90201-10021-00 |
from US $4.96 |
||
|
19
|
19
903-87280-16-00 Collarカラー; 参照 |
903-87280-16-00 |
from US $19.75 |
||
|
20
|
20
903-87280-19-00 Collarカラー; 参照 |
903-87280-19-00 |
from US $19.15 |
||
|
21
|
21
4C8-25388-00-00
Puller, Chain 1
|
4C8-25388-00-00 |
— | ||
|
22
|
22
90110-05030-00 Bolt．ボルト，ヘキサゴンソケツトヘツド; |
90110-05030-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
91312-05008-00 Bolt．ボルト，ヘキサゴンソケツトヘツド; |
91312-05008-00 |
from US $1.36 |
||
|
23
|
23
5VY-25389-00-00 Puller, Chain 2プラー，チエーン ２; |
5VY-25389-00-00 |
from US $21.39 |
||
| replacement | |||||
|
23
|
23
5VY-25389-01-00 Puller, Chain 2プラー，チエーン ２; |
5VY-25389-01-00 |
from US $21.39 |
||
|
24
|
24
4C8-25381-00-00 Axle, Wheelアクスル，ホイール; |
4C8-25381-00-00 |
from US $70.74 |
||
|
25
|
25
90185-24007-00 Nut, Self-Locking |
90185-24007-00 |
from US $33.72 |
||
|
26
|
26
90201-25020-00 Washer, Plateワツシヤ，プレート; |
90201-25020-00 |
from US $6.52 |
||
|
27
|
27
94582-10118-00 Chain (Did50Va8-118Ll)チエーン ; ＤＩＤ５０ＶＡ８−１１８ＬＬ |
94582-10118-00 |
from US $243.16 |
||
|
28
|
28
94682-05031-00 Joint, Chain (Did 50Va8-Zj)．ジヨイント，チエーン ; ＤＩＤ ５０ＶＡ８−ＺＪ |
94682-05031-00 |
from US $7.08 |
||
