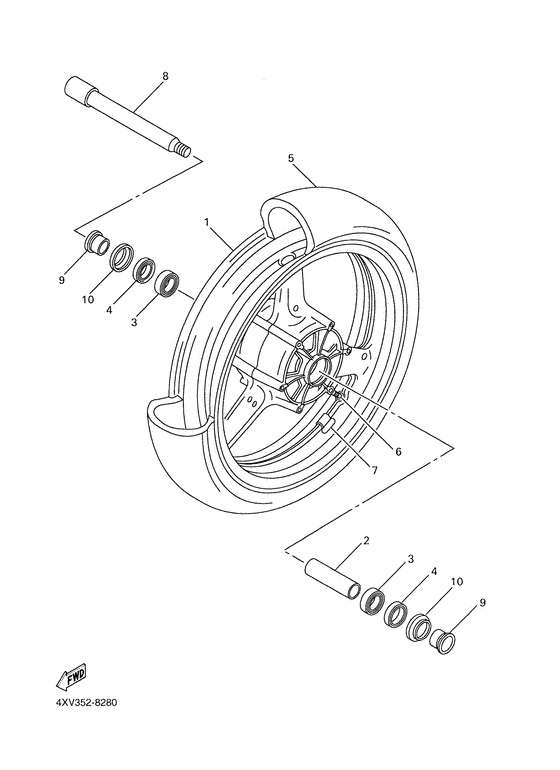

Front wheel Diagram Yamaha YZF-R1 R1
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5JJ8
- Sales region
- Switzerland (040)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4XV-25168-00-33 Cast Wheel, FrontYb |
4XV-25168-00-33 |
from US $806.78 |
||
| replacement | |||||
|
01
|
01
4XV-25168-01-33 Cast Wheel, FrontYb |
4XV-25168-01-33 |
from US $655.26 |
||
|
02
|
02
4XV-25117-00-00 Spacer, Bearing |
4XV-25117-00-00 |
from US $15.30 |
||
|
03
|
03
93306-00420-00 Bearing |
93306-00420-00 |
from US $20.12 |
||
|
04
|
04
93106-28043-00 Oil Seal |
93106-28043-00 |
from US $4.02 |
||
|
05
|
05
94112-17012-00
Tire (120/70 Zr17 D207F)
Dunlop |
94112-17012-00 |
— | ||
| replacements | |||||
|
05
|
05
94112-17086-00
Tire(120/70 Zr17 Mc 58W D218F
Dunlop |
94112-17086-00 |
— | ||
|
05
|
05
94112-17071-00
Tire(120/70 Zr17M/c 58W D218F)
Dunlop |
94112-17071-00 |
— | ||
|
06
|
06
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
07
|
07
29L-25398-00-00
Balancer, Wheel (10G)
Un |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
07
|
07
5MT-25398-00-00 Balancer, Wheel (10G)Un |
5MT-25398-00-00 |
from US $7.65 |
||
|
07
|
07
29L-25398-10-00
Balancer, Wheel (20G)
Un |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
07
|
07
5MT-25398-10-00 Balancer, Wheel (20G)Un |
5MT-25398-10-00 |
from US $7.65 |
||
|
07
|
07
29L-25398-20-00 Balancer, Wheel (30G)Un |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
07
|
07
5MT-25398-20-00 Balancer, Wheel (30G)Un |
5MT-25398-20-00 |
from US $7.65 |
||
|
08
|
08
4XV-25181-00-00
Axle, Wheel
|
4XV-25181-00-00 |
— | ||
| replacement | |||||
|
08
|
08
4XV-25181-10-00 Axle, Wheel |
4XV-25181-10-00 |
from US $55.40 |
||
|
09
|
09
4XV-25186-00-00 Collar, Wheel |
4XV-25186-00-00 |
from US $12.75 |
||
| replacement | |||||
|
09
|
09
903-87220-16-00 Collar, Wheel |
903-87220-16-00 |
from US $12.47 |
||
|
10
|
10
4XV-25118-00-00 Cover, Hub Dust |
4XV-25118-00-00 |
from US $3.68 |
||
