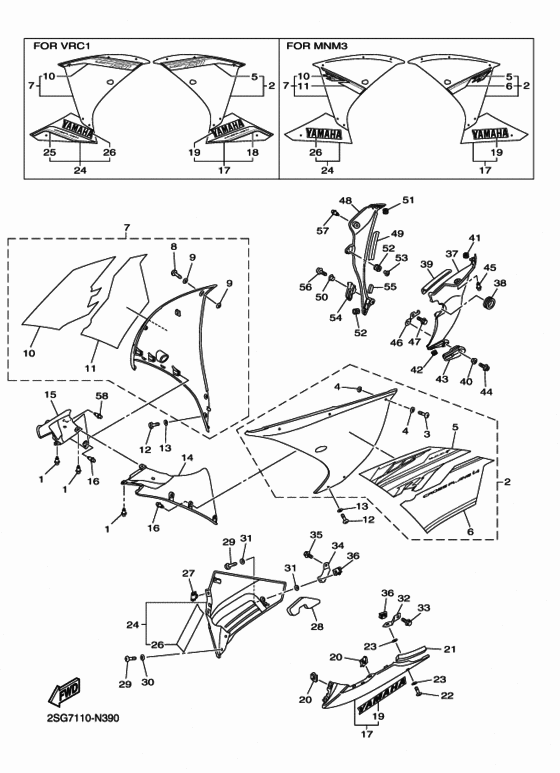

Cowling 2 Diagram Yamaha YZF-R1 R1
- Year
- 2014
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 2SG9
- Sales region
- Canada (010)
- Базовая модель
- YZF-R1
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
2
|
2
14B-W283U-2B-P1 Panel Assy 1UR BWC1 FOR DPBMC |
14B-W283U-2B-P1 |
from US $354.64 |
||
|
3
|
3
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
4
|
4
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
5
|
5
2SG-28391-00-00 Graphic 1UR FOR DPBMC |
2SG-28391-00-00 |
from US $104.59 |
||
|
6
|
6
2SG-28393-00-00 Graphic 3UR FOR DPBMC |
2SG-28393-00-00 |
from US $78.61 |
||
|
7
|
7
14B-W283V-2B-P1 Panel Assy 2UR BWC1 FOR DPBMC |
14B-W283V-2B-P1 |
from US $354.64 |
||
|
8
|
8
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
9
|
9
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
10
|
10
2SG-28392-00-00 Graphic 2UR FOR DPBMC |
2SG-28392-00-00 |
from US $104.59 |
||
|
11
|
11
2SG-28394-00-00 Graphic 4UR FOR DPBMC |
2SG-28394-00-00 |
from US $78.61 |
||
|
12
|
12
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
13
|
13
902-02060-05-00 Washer, Plate |
902-02060-05-00 |
from US $1.70 |
||
|
14
|
14
14B-2836K-00-00 Panel, Inner 1 |
14B-2836K-00-00 |
from US $53.88 |
||
|
15
|
15
14B-2836L-00-00 Panel, Inner 2 |
14B-2836L-00-00 |
from US $53.88 |
||
|
16
|
16
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
17
|
17
14B-W2838-L0-P3 Under Cover Comp. 1UR FOR DPBMC |
14B-W2838-L0-P3 |
from US $197.57 |
||
|
19
|
19
99241-00240-00 Emblem, YamahaUR FOR DPBMC |
99241-00240-00 |
from US $12.18 |
||
|
20
|
20
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
20
|
20
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
21
|
21
905-20300-04-00 Damper, Plate |
905-20300-04-00 |
from US $8.50 |
||
|
22
|
22
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
23
|
23
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
24
|
24
14B-W2839-L0-P3 Under Cover Comp. 2UR FOR DPBMC |
14B-W2839-L0-P3 |
from US $197.57 |
||
|
26
|
26
99241-00240-00 Emblem, YamahaUR FOR DPBMC |
99241-00240-00 |
from US $12.18 |
||
|
27
|
27
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
27
|
27
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
28
|
28
14B-28371-10-00 Damper |
14B-28371-10-00 |
from US $5.38 |
||
|
29
|
29
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
30
|
30
902-02060-05-00 Washer, Plate |
902-02060-05-00 |
from US $1.70 |
||
|
31
|
31
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
32
|
32
14B-2836A-00-00 Bracket 1 |
14B-2836A-00-00 |
from US $9.63 |
||
|
33
|
33
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
33
|
33
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
34
|
34
14B-2836E-00-00 Bracket 2 |
14B-2836E-00-00 |
from US $9.78 |
||
|
35
|
35
90105-06174-00 Bolt, Flange |
90105-06174-00 |
from US $1.07 |
||
| replacement | |||||
|
35
|
35
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
36
|
36
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
36
|
36
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
37
|
37
14B-2836M-10-P2 Panel, Inner 3UR FOR DPBMC |
14B-2836M-10-P2 |
from US $186.52 |
||
|
38
|
38
14B-2836T-00-00 Damper, Locating 1 |
14B-2836T-00-00 |
from US $3.26 |
||
|
39
|
39
905-20050-11-00 Damper, Plate |
905-20050-11-00 |
from US $3.83 |
||
|
40
|
40
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
40
|
40
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
41
|
41
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
42
|
42
904-80125-96-00 Grommet (rubber) |
904-80125-96-00 |
from US $1.84 |
||
|
43
|
43
14B-283C1-00-00 Stopper, Rubber 1 |
14B-283C1-00-00 |
from US $4.39 |
||
|
44
|
44
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
|
45
|
45
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
46
|
46
14B-28321-00-00 Stay 1 |
14B-28321-00-00 |
from US $12.04 |
||
|
47
|
47
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
47
|
47
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
47
|
47
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
48
|
48
14B-2836N-10-P2 Panel, Inner 4UR FOR DPBMC |
14B-2836N-10-P2 |
from US $147.83 |
||
|
49
|
49
3NU-21732-00-00 Seal 1 |
3NU-21732-00-00 |
from US $2.69 |
||
|
50
|
50
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
50
|
50
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
51
|
51
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
52
|
52
904-80125-96-00 Grommet (rubber) |
904-80125-96-00 |
from US $1.84 |
||
|
53
|
53
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
53
|
53
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
54
|
54
14B-283C2-00-00 Stopper, Rubber 2 |
14B-283C2-00-00 |
from US $4.39 |
||
|
55
|
55
4B5-2847F-00-00 Seal 5 |
4B5-2847F-00-00 |
from US $5.38 |
||
|
56
|
56
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
|
57
|
57
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
58
|
58
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
