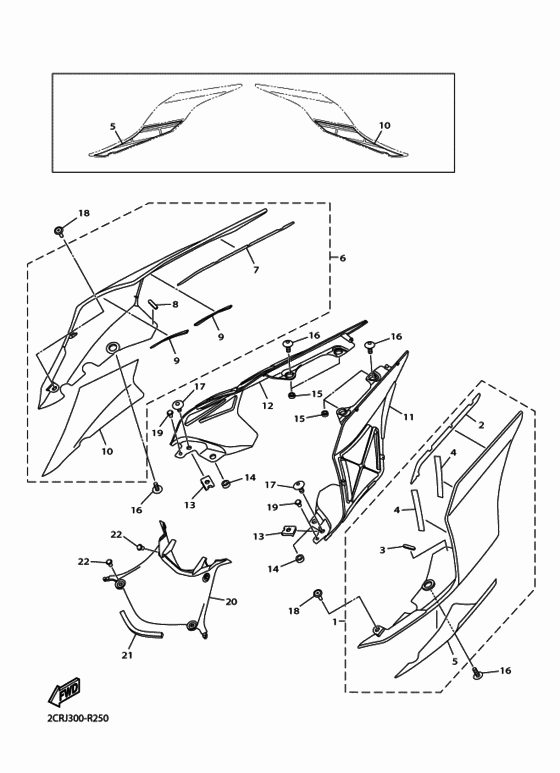

Side cover Diagram Yamaha YZF-R1 R1 60th Anniversary Edition
- Year
- 2016
- Colour
- Light Reddish Yellow Solid 1
- Model code
- 2CRJ
- Sales region
- Europe (050)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-W2171-80-P5
Cover, Side 1
LRYS1 |
2CR-W2171-80-P5 |
— | ||
| replacement | |||||
|
1
|
1
2CR-W2171-81-P5 Cover, Side 1LRYS1 |
2CR-W2171-81-P5 |
from US $145.07 |
||
|
2
|
2
2CR-2173T-00-00
Tape 1
|
2CR-2173T-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2CR-2173T-01-00 Tape 1 |
2CR-2173T-01-00 |
from US $7.79 |
||
|
3
|
3
2CR-2173R-00-00
Tape 3
|
2CR-2173R-00-00 |
— | ||
| replacement | |||||
|
3
|
3
2CR-2173R-01-00 Tape 3 |
2CR-2173R-01-00 |
from US $1.42 |
||
|
4
|
4
1RC-2111D-00-00 Seal 1 |
1RC-2111D-00-00 |
from US $1.70 |
||
|
5
|
5
2CR-2173E-40-00 Graphic 1 |
2CR-2173E-40-00 |
from US $33.72 |
||
|
6
|
6
2CR-W2172-80-P5
Side Cover 2
LRYS1 |
2CR-W2172-80-P5 |
— | ||
| replacement | |||||
|
6
|
6
2CR-W2172-81-P5 Side Cover 2LRYS1 |
2CR-W2172-81-P5 |
from US $149.21 |
||
|
7
|
7
2CR-2173U-00-00 Tape 2 |
2CR-2173U-00-00 |
from US $7.79 |
||
| replacement | |||||
|
7
|
7
2CR-2173U-01-00 Tape 2 |
2CR-2173U-01-00 |
from US $7.79 |
||
|
8
|
8
2CR-2173R-00-00
Tape 3
|
2CR-2173R-00-00 |
— | ||
| replacement | |||||
|
8
|
8
2CR-2173R-01-00 Tape 3 |
2CR-2173R-01-00 |
from US $1.42 |
||
|
9
|
9
1RC-2111D-00-00 Seal 1 |
1RC-2111D-00-00 |
from US $1.70 |
||
|
10
|
10
2CR-2173F-40-00 Graphic 2 |
2CR-2173F-40-00 |
from US $33.72 |
||
|
11
|
11
2CR-21731-00-00 Cover, Side 3 |
2CR-21731-00-00 |
from US $22.81 |
||
|
12
|
12
2CR-21741-00-00 Cover, Side 4 |
2CR-21741-00-00 |
from US $16.84 |
||
|
13
|
13
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
14
|
14
903-87060-22-00
Collar
|
903-87060-22-00 |
— | ||
| replacement | |||||
|
14
|
14
903-87061-06-00 Collar |
903-87061-06-00 |
from US $1.70 |
||
|
15
|
15
90387-06069-00 Collar |
90387-06069-00 |
from US $1.70 |
||
|
16
|
16
90111-06086-00 Bolt,hex. Socket Button |
90111-06086-00 |
from US $1.70 |
||
|
17
|
17
901-11061-36-00 Bolt,0Hex. Socket Button |
901-11061-36-00 |
from US $1.36 |
||
|
18
|
18
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
18
|
18
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.36 |
||
|
19
|
19
902-69050-05-00 Rivet |
902-69050-05-00 |
from US $1.70 |
||
|
20
|
20
2CR-2171E-00-00 Cover, Side 5 |
2CR-2171E-00-00 |
from US $10.63 |
||
| replacement | |||||
|
20
|
20
2CR-2171E-01-00 COVER SIDE 5 |
2CR-2171E-01-00 |
from US $10.63 |
||
|
21
|
21
4C8-21747-00-00 Damper |
4C8-21747-00-00 |
from US $3.12 |
||
|
22
|
22
90269-05001-00 Rivet |
90269-05001-00 |
from US $2.70 |
||
