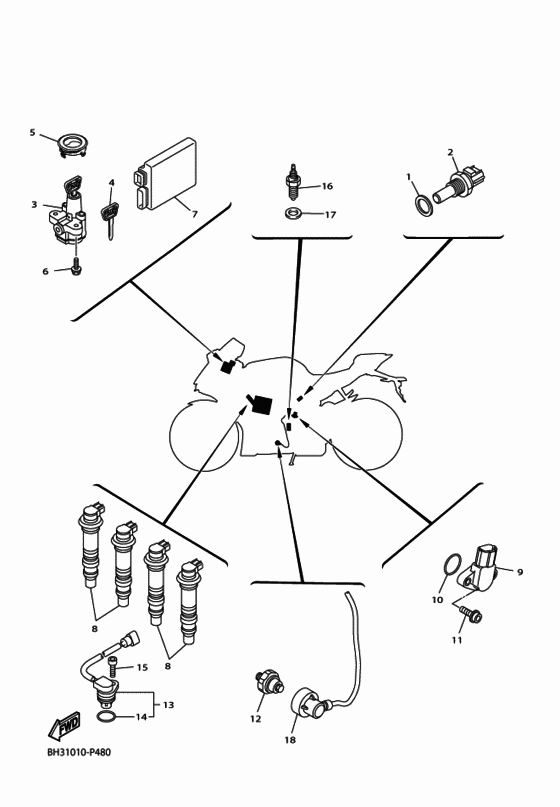

Electrical 1 Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2015
- Colour
- Black Metallic X
- Model code
- BH31
- Sales region
- Japan (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90430-10004-00 Gasket |
90430-10004-00 |
from US $1.70 |
||
|
2
|
2
4P9-83591-00-00
Thermo Unit
|
4P9-83591-00-00 |
— | ||
| replacements | |||||
|
2
|
2
54P-H3591-00-00 Thermo Unit |
54P-H3591-00-00 |
from US $20.12 |
||
|
2
|
2
52B-H3591-00-00 Thermo Unit |
52B-H3591-00-00 |
from US $19.18 |
||
|
3
|
3
2CR-82501-10-00 Main Switch Steering Lock |
2CR-82501-10-00 |
from US $201.17 |
||
|
4
|
4
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $11.19 |
||
|
5
|
5
36P-82552-00-00 Cap, Switch |
36P-82552-00-00 |
from US $2.13 |
||
|
6
|
6
90109-08195-00 Bolt |
90109-08195-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.70 |
||
|
7
|
7
2CR-8591A-20-00 Engine Control Unit Assy |
2CR-8591A-20-00 |
from US $1,675.31 |
||
|
8
|
8
2CR-82310-00-00 Ignition Coil Assy |
2CR-82310-00-00 |
from US $126.14 |
||
|
9
|
9
2CR-85899-00-00 Sensor, Gear Position |
2CR-85899-00-00 |
from US $79.44 |
||
|
10
|
10
932-10170-08-00 O-Ring |
932-10170-08-00 |
from US $1.42 |
||
|
11
|
11
901-10050-67-00 Bolt, Hexagon Socket Head |
901-10050-67-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90110-05038-00 Bolt, Hexagon Socket Head |
90110-05038-00 |
from US $1.70 |
||
|
12
|
12
1WS-82504-00-00 Oil Pressure Switch Assy |
1WS-82504-00-00 |
from US $42.83 |
||
|
13
|
13
5VY-85896-01-00 Sensor, Cam Position |
5VY-85896-01-00 |
from US $112.80 |
||
| replacement | |||||
|
13
|
13
5VY-85896-02-00 Sensor, Cam Position |
5VY-85896-02-00 |
from US $137.61 |
||
|
14
|
14
4D9-81168-00-00 O-Ring |
4D9-81168-00-00 |
from US $3.40 |
||
|
15
|
15
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
15
|
15
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
15
|
15
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
16
|
16
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
17
|
17
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
18
|
18
2CR-82509-10-00 Wire, Sub Lead |
2CR-82509-10-00 |
from US $16.15 |
||
