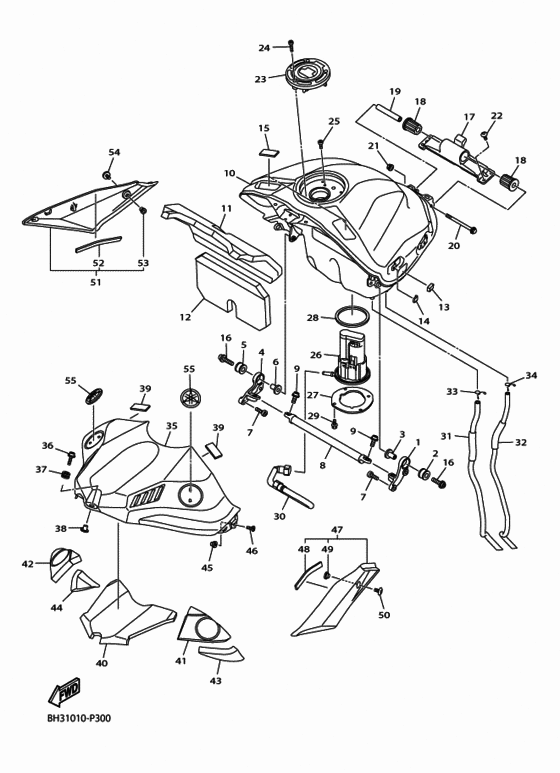

Fuel tank Diagram Yamaha YZF-R1 R1 RaceBase
- Year
- 2015
- Colour
- Black Metallic X
- Model code
- BH31
- Sales region
- Japan (010)
- Engine Capacity
- 1000
- Color Variant
- A
- Model
- YZF-R1R ( RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-24191-00-00 Bracket, Fuel Tank 1 |
2CR-24191-00-00 |
from US $17.85 |
||
|
2
|
2
904-80180-08-00 Grommet |
904-80180-08-00 |
from US $1.98 |
||
|
3
|
3
90387-06091-00 Collar |
90387-06091-00 |
from US $5.67 |
||
|
4
|
4
2CR-24192-00-00 Bracket, Fuel Tank 2 |
2CR-24192-00-00 |
from US $15.58 |
||
|
5
|
5
904-80180-08-00 Grommet |
904-80180-08-00 |
from US $1.98 |
||
|
6
|
6
90387-06091-00 Collar |
90387-06091-00 |
from US $5.67 |
||
|
7
|
7
913-12060-25-00
Bolt
|
913-12060-25-00 |
— | ||
| replacement | |||||
|
7
|
7
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
8
|
8
2CR-2142V-00-00 Cross Bar |
2CR-2142V-00-00 |
from US $97.54 |
||
|
9
|
9
90110-08097-00 Bolt, Hexagon Socket Head |
90110-08097-00 |
from US $1.70 |
||
|
10
|
10
2CR-YK241-00-P2 Fuel Tank CompSMX |
2CR-YK241-00-P2 |
from US $1,504.80 |
||
| replacement | |||||
|
10
|
10
2CR-YK241-10-P2 Fuel Tank Comp.SMX |
2CR-YK241-10-P2 |
from US $1,504.80 |
||
|
11
|
11
2CR-2414H-00-00 Damper, Plate 1 |
2CR-2414H-00-00 |
from US $6.09 |
||
|
12
|
12
2CR-2414J-00-00 Damper, Plate 2 |
2CR-2414J-00-00 |
from US $3.40 |
||
|
13
|
13
13S-21639-00-00 Damper 2 |
13S-21639-00-00 |
from US $1.70 |
||
|
14
|
14
5PW-2411J-01-00 Damper, Side Cover |
5PW-2411J-01-00 |
from US $2.02 |
||
|
15
|
15
5XT-2411G-00-00 Hook, Side Cover 1 |
5XT-2411G-00-00 |
from US $9.92 |
||
|
16
|
16
901-10063-46-00 Bolt, Hexagon Socket Head |
901-10063-46-00 |
from US $1.28 |
||
|
17
|
17
2CR-2413Y-00-00 Bracket, Tank Fitting |
2CR-2413Y-00-00 |
from US $30.18 |
||
|
18
|
18
5SL-24183-00-00 Damper, Locating 3 |
5SL-24183-00-00 |
from US $3.68 |
||
|
19
|
19
903-87060-55-00 Collar |
903-87060-55-00 |
from US $4.39 |
||
|
20
|
20
95812-06090-00 Bolt, Flange |
95812-06090-00 |
from US $1.56 |
||
|
21
|
21
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
22
|
22
90111-06071-00 Bolt, Hex. Socket Button |
90111-06071-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
23
|
23
2CR-24602-00-00 Cap Assy |
2CR-24602-00-00 |
from US $197.57 |
||
|
24
|
24
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
25
|
25
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
26
|
26
2CR-13907-00-00 Fuel Pump Comp |
2CR-13907-00-00 |
from US $520.33 |
||
| replacement | |||||
|
26
|
26
2CR-13907-01-00 Fuel Pump Comp. |
2CR-13907-01-00 |
from US $436.26 |
||
|
27
|
27
2CR-24491-00-00 Bracket, Fuel Pump |
2CR-24491-00-00 |
from US $15.87 |
||
|
28
|
28
1RC-24486-00-00 O-Ring |
1RC-24486-00-00 |
from US $14.59 |
||
|
29
|
29
901-19050-15-00 Bolt, With Washer |
901-19050-15-00 |
from US $1.56 |
||
|
30
|
30
2CR-13971-00-00 Pipe, Fuel 1 |
2CR-13971-00-00 |
from US $61.20 |
||
|
31
|
31
2CR-24312-00-00 Pipe 2 |
2CR-24312-00-00 |
from US $12.33 |
||
|
32
|
32
2CR-24313-00-00 Pipe 3 |
2CR-24313-00-00 |
from US $7.65 |
||
|
33
|
33
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
34
|
34
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
35
|
35
2CR-2171A-00-P2 Cover, TopSMX |
2CR-2171A-00-P2 |
from US $131.11 |
||
|
36
|
36
90110-06233-00 Bolt, Hexagon Socket Head |
90110-06233-00 |
from US $3.40 |
||
|
37
|
37
90480-12023-00 Grommet |
90480-12023-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
38
|
38
90387-06203-00 Collar |
90387-06203-00 |
from US $7.79 |
||
|
39
|
39
5XT-2411G-00-00 Hook, Side Cover 1 |
5XT-2411G-00-00 |
from US $9.92 |
||
|
40
|
40
2CR-24181-02-00 Damper, Locating 1 |
2CR-24181-02-00 |
from US $7.51 |
||
|
41
|
41
2CR-2414K-00-00 Damper, Plate 3 |
2CR-2414K-00-00 |
from US $2.27 |
||
|
42
|
42
2CR-2414N-00-00 Damper, Plate 4 |
2CR-2414N-00-00 |
from US $2.27 |
||
|
43
|
43
2CR-2414P-00-00 Damper, Plate 5 |
2CR-2414P-00-00 |
from US $1.70 |
||
|
44
|
44
2CR-2414R-00-00 Damper, Plate 6 |
2CR-2414R-00-00 |
from US $1.70 |
||
|
45
|
45
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
46
|
46
98902-05014-00 Screw, Bind |
98902-05014-00 |
from US $1.56 |
||
|
47
|
47
2CR-24106-00-00 Tank Side Cover Assy 1 |
2CR-24106-00-00 |
from US $21.25 |
||
|
48
|
48
90520-03016-00 Damper, Plate |
90520-03016-00 |
from US $1.36 |
||
|
49
|
49
90387-05035-00 Collar |
90387-05035-00 |
from US $3.54 |
||
|
50
|
50
90111-05019-00 Bolt, Hex. Socket Button |
90111-05019-00 |
from US $1.84 |
||
|
51
|
51
2CR-24108-00-00 Tank Side Cover Assy 2 |
2CR-24108-00-00 |
from US $21.25 |
||
|
52
|
52
90520-03016-00 Damper, Plate |
90520-03016-00 |
from US $1.36 |
||
|
53
|
53
90387-05035-00 Collar |
90387-05035-00 |
from US $3.54 |
||
|
54
|
54
90111-05019-00 Bolt, Hex. Socket Button |
90111-05019-00 |
from US $1.84 |
||
|
55
|
55
1RC-2413B-00-00 Emblem |
1RC-2413B-00-00 |
from US $17.28 |
||
