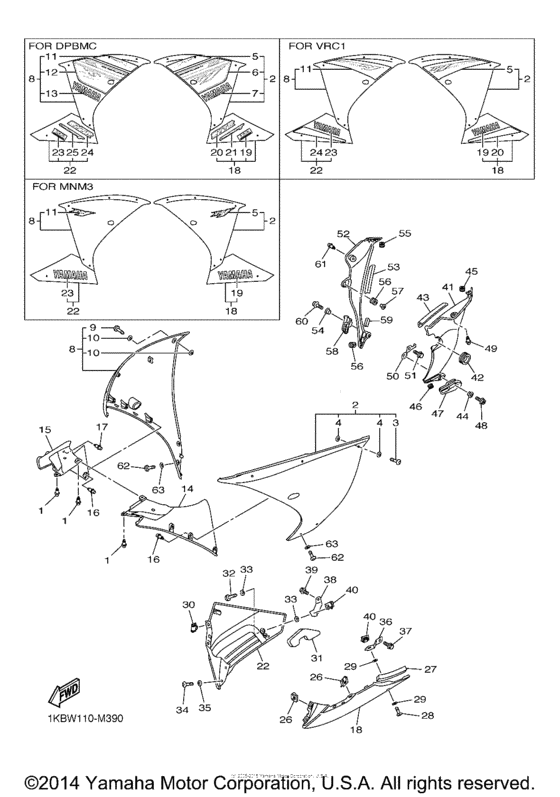

Cowling (2) Diagram Yamaha YZF-R1 R1
- Year
- 2013
- Model code
- 1KBX
- Sales region
- United States (California)
- Базовая модель
- YZFR1DCR
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
2
|
2
14B-W283U-1B-P3 Panel Assy 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-W283U-1B-P3 |
from US $386.73 |
||
|
2
|
2
14B-W283U-1C-P3 Panel Assy 1Use for Color Black Metallic X SMX / 0903 |
14B-W283U-1C-P3 |
from US $450.72 |
||
|
2
|
2
14B-W283U-D0-P0
Panel Assy 1
UR FOR MNM3 |
14B-W283U-D0-P0 |
— | ||
| replacement | |||||
|
2
|
2
14B-W283U-D1-P0 Panel Assy 1UR FOR MNM3 |
14B-W283U-D1-P0 |
from US $418 |
||
|
3
|
3
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
4
|
4
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
5
|
5
1KB-28391-70-00 Graphic 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-28391-70-00 |
from US $51.95 |
||
|
5
|
5
1KB-2839B-00-00
Emblem 3D
3D UR FOR MNM3 |
1KB-2839B-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1KB-2839B-01-00 Emblem R1 (3D)3D UR FOR MNM3 |
1KB-2839B-01-00 |
from US $68.94 |
||
|
5
|
5
1KB-28391-80-00 Graphic 1Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
1KB-28391-80-00 |
from US $104.31 |
||
|
6
|
6
1KB-28393-40-00 Graphic 3Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-28393-40-00 |
from US $113.36 |
||
|
7
|
7
1KB-2153B-10-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-2153B-10-00 |
from US $7.51 |
||
|
8
|
8
14B-W283V-1C-P3 Panel Assy 2Use for Color Black Metallic X SMX / 0903 |
14B-W283V-1C-P3 |
from US $450.67 |
||
|
8
|
8
14B-W283V-1B-P3 Panel Assy 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-W283V-1B-P3 |
from US $538.09 |
||
|
8
|
8
14B-W283V-D0-P0
Panel Assy 2
UR FOR MNM3 |
14B-W283V-D0-P0 |
— | ||
| replacement | |||||
|
8
|
8
14B-W283V-D1-P0 Panel Assy 2UR FOR MNM3 |
14B-W283V-D1-P0 |
from US $305.33 |
||
|
9
|
9
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
10
|
10
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
11
|
11
1KB-2839B-00-00
Emblem 3D
3D UR FOR MNM3 |
1KB-2839B-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1KB-2839B-01-00 Emblem R1 (3D)3D UR FOR MNM3 |
1KB-2839B-01-00 |
from US $68.94 |
||
|
11
|
11
1KB-28392-70-00 Graphic 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-28392-70-00 |
from US $51.95 |
||
|
11
|
11
1KB-28392-80-00 Graphic 2Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
1KB-28392-80-00 |
from US $104.31 |
||
|
12
|
12
1KB-28394-40-00 Graphic 4Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-28394-40-00 |
from US $128.35 |
||
|
13
|
13
1KB-2153B-10-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-2153B-10-00 |
from US $7.51 |
||
|
14
|
14
14B-2836K-00-00 Panel, Inner 1 |
14B-2836K-00-00 |
from US $53.88 |
||
|
15
|
15
14B-2836L-00-00 Panel, Inner 2 |
14B-2836L-00-00 |
from US $53.88 |
||
|
16
|
16
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
17
|
17
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
18
|
18
14B-W2838-X0-P2 Under Cover Comp. 1for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2838-X0-P2 |
from US $198.45 |
||
|
18
|
18
14B-W2838-Y0-P4 Under Cover Comp. 1for Color Black Metallic X SMX / 0903 |
14B-W2838-Y0-P4 |
from US $111.76 |
||
|
18
|
18
14B-W2838-V0-P0 Under Cover Comp. 1UR FOR MNM3 |
14B-W2838-V0-P0 |
from US $198.95 |
||
|
19
|
19
99244-00200-00 Emblem, YamahaUR FOR MNM3 |
99244-00200-00 |
from US $25.36 |
||
|
19
|
19
99247-00240-00 Emblem, Yamahafor Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
99247-00240-00 |
from US $10.91 |
||
|
19
|
19
1KB-28328-20-00 Emblemfor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-28328-20-00 |
from US $10.17 |
||
|
20
|
20
1KB-2834C-10-00 Emblem, 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-2834C-10-00 |
from US $16.88 |
||
|
20
|
20
1KB-283A1-20-00 Graphic, Under Cover 1Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
1KB-283A1-20-00 |
from US $41.86 |
||
|
21
|
21
1KB-2835C-10-00 Emblem 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-2835C-10-00 |
from US $16.88 |
||
|
22
|
22
14B-W2839-X0-P2 Under Cover Comp. 2for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-W2839-X0-P2 |
from US $198.45 |
||
|
22
|
22
14B-W2839-Y0-P4 Under Cover Comp. 2for Color Black Metallic X SMX / 0903 |
14B-W2839-Y0-P4 |
from US $198.95 |
||
|
22
|
22
14B-W2839-V0-P0 Under Cover Comp. 2UR FOR MNM3 |
14B-W2839-V0-P0 |
from US $198.95 |
||
|
23
|
23
99244-00200-00 Emblem, YamahaUR FOR MNM3 |
99244-00200-00 |
from US $25.36 |
||
|
23
|
23
99247-00240-00 Emblem, Yamahafor Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
99247-00240-00 |
from US $10.91 |
||
|
23
|
23
1KB-28328-20-00 Emblemfor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-28328-20-00 |
from US $10.17 |
||
|
24
|
24
1KB-2834C-10-00 Emblem, 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-2834C-10-00 |
from US $16.88 |
||
|
24
|
24
1KB-283A2-20-00 Graphic, Under Cover 2Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
1KB-283A2-20-00 |
from US $41.86 |
||
|
25
|
25
1KB-2835C-10-00 Emblem 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
1KB-2835C-10-00 |
from US $16.88 |
||
|
26
|
26
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
26
|
26
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
27
|
27
905-20300-04-00 Damper, Plate |
905-20300-04-00 |
from US $8.50 |
||
|
28
|
28
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
29
|
29
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
30
|
30
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
30
|
30
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
31
|
31
14B-28371-10-00 Damper |
14B-28371-10-00 |
from US $5.38 |
||
|
32
|
32
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
33
|
33
2TK-21757-00-00 Washer, Special 1 |
2TK-21757-00-00 |
from US $1.36 |
||
|
34
|
34
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
35
|
35
902-02060-05-00 Washer, Plate |
902-02060-05-00 |
from US $1.70 |
||
|
36
|
36
14B-2836A-00-00 Bracket 1 |
14B-2836A-00-00 |
from US $9.63 |
||
|
37
|
37
95802-06016-00 Bolt, Flange |
95802-06016-00 |
US $1.07 |
||
| replacement | |||||
|
37
|
37
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
38
|
38
14B-2836E-00-00 Bracket 2 |
14B-2836E-00-00 |
from US $9.78 |
||
|
39
|
39
90105-06174-00 Bolt, Flange |
90105-06174-00 |
from US $1.07 |
||
| replacement | |||||
|
39
|
39
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
40
|
40
5PW-2177L-00-00
Plate, Spring
|
5PW-2177L-00-00 |
— | ||
| replacement | |||||
|
40
|
40
5PW-2177L-01-00 Plate, Spring |
5PW-2177L-01-00 |
from US $7.23 |
||
|
41
|
41
14B-2836M-10-P0 Panel, Inner 3Use for Color MAT BLACK 2 MBL2 / 0582 |
14B-2836M-10-P0 |
from US $186.52 |
||
|
41
|
41
14B-2836M-10-P1 Panel, Inner 3Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2836M-10-P1 |
from US $186.52 |
||
|
41
|
41
14B-2836M-10-P7 Panel, Inner 3Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
14B-2836M-10-P7 |
from US $186.52 |
||
|
42
|
42
14B-2836T-00-00 Damper, Locating 1 |
14B-2836T-00-00 |
from US $3.26 |
||
|
43
|
43
905-20050-11-00 Damper, Plate |
905-20050-11-00 |
from US $3.83 |
||
|
44
|
44
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
44
|
44
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
45
|
45
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
46
|
46
904-80125-96-00 Grommet (rubber) |
904-80125-96-00 |
from US $1.84 |
||
|
47
|
47
14B-283C1-00-00 Stopper, Rubber 1 |
14B-283C1-00-00 |
from US $4.39 |
||
|
48
|
48
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
|
49
|
49
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
50
|
50
14B-28321-00-00 Stay 1 |
14B-28321-00-00 |
from US $12.04 |
||
|
51
|
51
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
51
|
51
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
51
|
51
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
52
|
52
14B-2836N-10-P0 Panel, Inner 4Use for Color MAT BLACK 2 MBL2 / 0582 |
14B-2836N-10-P0 |
from US $147.83 |
||
|
52
|
52
14B-2836N-10-P1 Panel, Inner 4Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-2836N-10-P1 |
from US $147.83 |
||
|
52
|
52
14B-2836N-10-P7 Panel, Inner 4Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
14B-2836N-10-P7 |
from US $147.83 |
||
|
53
|
53
3NU-21732-00-00 Seal 1 |
3NU-21732-00-00 |
from US $2.69 |
||
|
54
|
54
90560-08251-00 Collar |
90560-08251-00 |
from US $2.69 |
||
| replacement | |||||
|
54
|
54
90387-08079-00 Collar |
90387-08079-00 |
from US $2.69 |
||
|
55
|
55
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
56
|
56
904-80125-96-00 Grommet (rubber) |
904-80125-96-00 |
from US $1.84 |
||
|
57
|
57
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
57
|
57
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
58
|
58
14B-283C2-00-00 Stopper, Rubber 2 |
14B-283C2-00-00 |
from US $4.39 |
||
|
59
|
59
4B5-2847F-00-00 Seal 5 |
4B5-2847F-00-00 |
from US $5.38 |
||
|
60
|
60
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
|
61
|
61
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
62
|
62
14B-28386-00-00 Head |
14B-28386-00-00 |
from US $8.76 |
||
|
63
|
63
902-02060-05-00 Washer, Plate |
902-02060-05-00 |
from US $1.70 |
||
