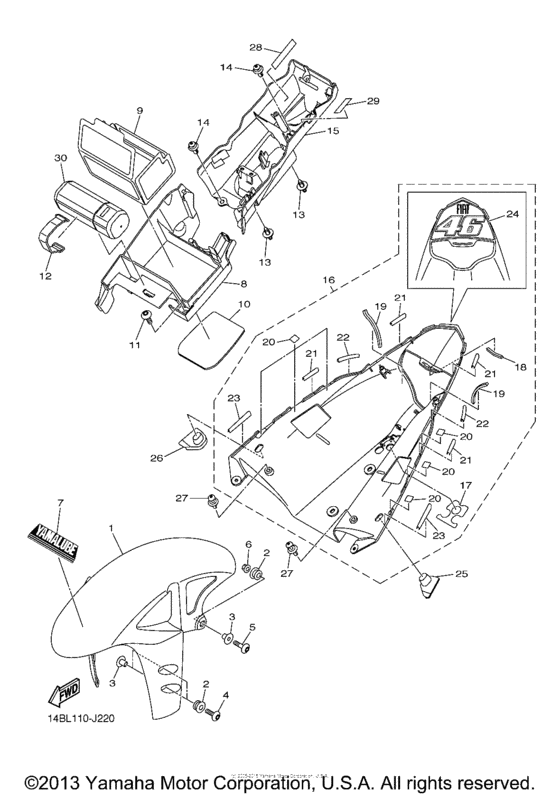

Fender Diagram Yamaha YZF-R1 R1LE Valentino Rossi Edition
- Year
- 2010
- Model code
- 14BL
- Sales region
- USA
- Базовая модель
- YZFR1LEZ
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14B-21511-00-P2 Fender, Frontfor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
14B-21511-00-P2 |
from US $174.08 |
||
|
2
|
2
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
3
|
3
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
3
|
3
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
4
|
4
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $1.84 |
||
|
5
|
5
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
6
|
6
957-02065-00-00
Nut, Flange
|
957-02065-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
7
|
7
14B-21578-00-00
Emblem
|
14B-21578-00-00 |
— | ||
|
8
|
8
14B-8212B-00-00 Box, Battery 1 |
14B-8212B-00-00 |
from US $38.96 |
||
|
9
|
9
14B-82122-00-00 Seat, Battery |
14B-82122-00-00 |
US $66.35 |
||
|
10
|
10
14B-82176-00-00 Damper |
14B-82176-00-00 |
from US $13.32 |
||
|
11
|
11
90149-06302-00 Screw |
90149-06302-00 |
from US $3.83 |
||
|
12
|
12
5JJ-82131-00-00 Band, Battery |
5JJ-82131-00-00 |
from US $6.38 |
||
|
13
|
13
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
14
|
14
90269-07012-00 Rivet |
90269-07012-00 |
from US $1.36 |
||
|
15
|
15
14B-8212C-00-00 Box, Battery 2 |
14B-8212C-00-00 |
from US $17.57 |
||
|
16
|
16
14B-Y2161-00-P1 Rear Fender Compfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-Y2161-00-P1 |
from US $226.58 |
||
| replacement | |||||
|
16
|
16
14B-21600-00-P1 Rear Fender Assyfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
14B-21600-00-P1 |
from US $239.57 |
||
|
17
|
17
14B-21669-00-00 Seal |
14B-21669-00-00 |
from US $6.38 |
||
|
18
|
18
4GY-2174X-00-00 Damper |
4GY-2174X-00-00 |
from US $2.55 |
||
|
19
|
19
3CV-28372-00-00 Damper |
3CV-28372-00-00 |
from US $3.54 |
||
|
20
|
20
4C8-21735-00-00 Seal 2 |
4C8-21735-00-00 |
from US $1.70 |
||
|
21
|
21
5VY-21732-00-00 Seal 1 |
5VY-21732-00-00 |
from US $3.40 |
||
|
22
|
22
5PW-21732-00-00 Seal 1 |
5PW-21732-00-00 |
from US $3.26 |
||
|
23
|
23
14B-21732-00-00 Seal 1 |
14B-21732-00-00 |
from US $3.40 |
||
|
24
|
24
14B-21737-00-00
Emblem
|
14B-21737-00-00 |
— | ||
|
25
|
25
14B-21639-00-00 Damper 2 |
14B-21639-00-00 |
from US $51.81 |
||
|
26
|
26
14B-21649-00-00 Damper |
14B-21649-00-00 |
from US $51.81 |
||
|
27
|
27
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.70 |
||
|
28
|
28
3JJ-28446-A1-00 Label, Caution |
3JJ-28446-A1-00 |
from US $4.39 |
||
|
29
|
29
4BR-24877-A0-00 Label, Caution |
4BR-24877-A0-00 |
from US $3.26 |
||
|
30
|
30
14B-28100-00-00 Tool Kit |
14B-28100-00-00 |
from US $105.14 |
||
