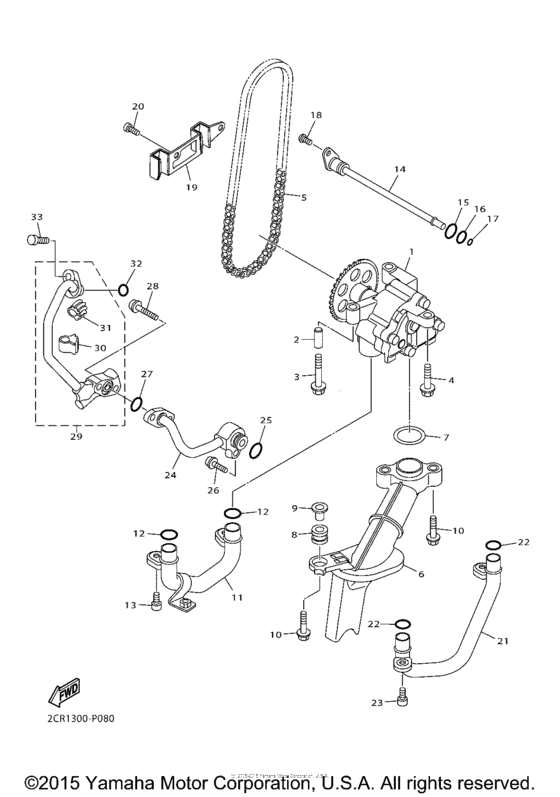

Oil pump Diagram Yamaha YZF-R1 R1M
- Year
- 2015
- Colour
- Bluish White Metallic 2
- Model code
- 2KS4
- Sales region
- United States (California)
- Базовая модель
- YZFR1MFC
- Engine Capacity
- 1000
- Model
- YZF-R1M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-13300-00-00 Oil Pump Assy |
2CR-13300-00-00 |
from US $180.99 |
||
|
2
|
2
91808-22019-00 Pin, Dowel(8Ah) |
91808-22019-00 |
from US $1.13 |
||
|
3
|
3
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.07 |
||
|
4
|
4
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
5
|
5
945-80310-80-00 Chain |
945-80310-80-00 |
from US $25.26 |
||
|
6
|
6
2CR-13410-00-00 Strainer Housing Assy |
2CR-13410-00-00 |
from US $20.97 |
||
| replacement | |||||
|
6
|
6
2CR-13410-01-00 Strainer Housing Ass |
2CR-13410-01-00 |
from US $20.97 |
||
|
7
|
7
93210-22M93-00 O-Ring |
93210-22M93-00 |
from US $6.52 |
||
|
8
|
8
90480-13010-00 Grommet |
90480-13010-00 |
from US $4.19 |
||
|
9
|
9
5VY-13117-10-00 Collar, Distance |
5VY-13117-10-00 |
from US $2.41 |
||
|
10
|
10
901-10061-73-00
Bolt, Hexagon Socket Head
|
901-10061-73-00 |
— | ||
| replacement | |||||
|
10
|
10
90110-06172-00 Bolt, Hexagon Socket Head |
90110-06172-00 |
from US $1.56 |
||
|
11
|
11
2CR-13416-00-00 Pipe, Oil 1 |
2CR-13416-00-00 |
from US $41.03 |
||
|
12
|
12
93210-14003-00 O-Ring |
93210-14003-00 |
from US $1.70 |
||
|
13
|
13
90110-06182-00 Bolt |
90110-06182-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
14
|
14
2CR-1316E-00-00 Pipe, Delivery 5 |
2CR-1316E-00-00 |
from US $37.17 |
||
|
15
|
15
93210-12010-00 O-Ring |
93210-12010-00 |
from US $1.84 |
||
|
16
|
16
93210-09525-00 O-Ring |
93210-09525-00 |
from US $1.70 |
||
|
17
|
17
932-10066-67-00 O-Ring |
932-10066-67-00 |
from US $1.84 |
||
|
18
|
18
90149-06158-00 Screw |
90149-06158-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
90149-06156-00 Screw |
90149-06156-00 |
from US $1.42 |
||
|
19
|
19
2CR-13898-00-00 Holder |
2CR-13898-00-00 |
from US $16.15 |
||
|
20
|
20
90110-06182-00 Bolt |
90110-06182-00 |
from US $1.07 |
||
| replacement | |||||
|
20
|
20
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
21
|
21
2CR-13171-00-00 Pipe, Delivery 2 |
2CR-13171-00-00 |
from US $30.04 |
||
|
22
|
22
93210-13361-00 O-Ring |
93210-13361-00 |
from US $1.28 |
||
|
23
|
23
90110-06182-00 Bolt |
90110-06182-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
24
|
24
2CR-13405-00-00 Oil Pipe Comp. 1 |
2CR-13405-00-00 |
from US $75.85 |
||
|
25
|
25
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.36 |
||
|
26
|
26
901-10063-95-00 Bolt, Hexagon Socket Head |
901-10063-95-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
901-10063-96-00 Bolt, Hexagon Socket Head |
901-10063-96-00 |
from US $1.28 |
||
|
27
|
27
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.36 |
||
|
28
|
28
901-10063-89-00
Bolt, Hexagon Socket Head
|
901-10063-89-00 |
— | ||
| replacement | |||||
|
28
|
28
901-10063-88-00 Bolt, hexagon socket head |
901-10063-88-00 |
from US $1.42 |
||
|
29
|
29
2CR-13170-00-00 Delivery Pipe Assy 2 |
2CR-13170-00-00 |
from US $163.03 |
||
|
30
|
30
2CR-13159-00-00 Damper |
2CR-13159-00-00 |
from US $3.54 |
||
|
31
|
31
2CR-13593-00-00 Damper |
2CR-13593-00-00 |
from US $4.53 |
||
|
32
|
32
93210-09754-00 O-Ring |
93210-09754-00 |
from US $1.42 |
||
| replacements | |||||
|
32
|
32
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
|
32
|
32
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
|
33
|
33
90110-06295-00 Bolt, Hexagon Socket Head |
90110-06295-00 |
US $1.56 |
||
| replacement | |||||
|
33
|
33
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
