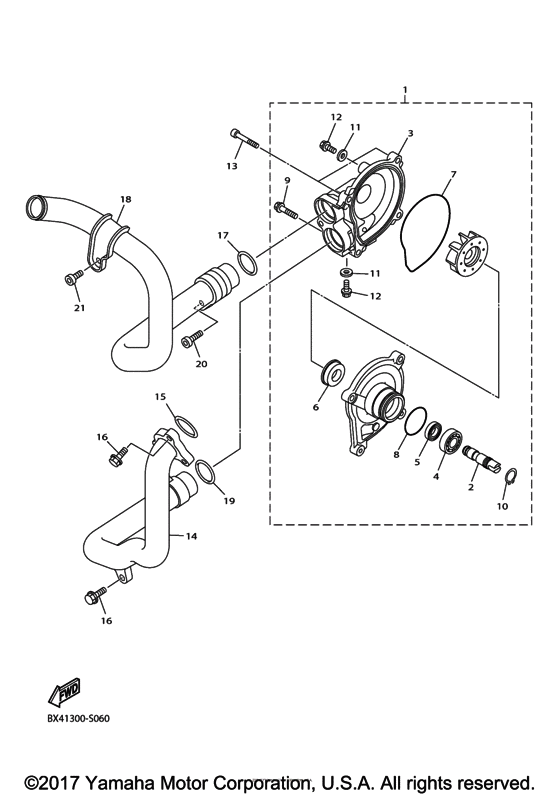

Water pump Diagram Yamaha YZF-R1 R1M
- Year
- 2017
- Colour
- Bluish White Metallic 2
- Model code
- 2KSH
- Sales region
- United States (California)
- Базовая модель
- YZFR1MHC
- Engine Capacity
- 1000
- Model
- YZF-R1M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B67-12420-00-00 WATER PUMP ASSY |
B67-12420-00-00 |
from US $212.77 |
||
|
2
|
2
2CR-12450-01-00 Impeller Shaft Assy |
2CR-12450-01-00 |
from US $42.69 |
||
|
3
|
3
B67-12422-00-00 COVER, HOUSING |
B67-12422-00-00 |
from US $80.27 |
||
|
4
|
4
933-06001-06-00
Bearing
|
933-06001-06-00 |
— | ||
| replacement | |||||
|
4
|
4
93306-00105-00 Bearing |
93306-00105-00 |
from US $10.48 |
||
|
5
|
5
2CR-13338-00-00 Seal |
2CR-13338-00-00 |
from US $8.93 |
||
|
6
|
6
5VK-12438-00-00 Seal, Mechanical |
5VK-12438-00-00 |
from US $31.45 |
||
|
7
|
7
4XV-12439-00-00 O-Ring |
4XV-12439-00-00 |
from US $7.79 |
||
|
8
|
8
932-10331-33-00 O-Ring |
932-10331-33-00 |
from US $1.70 |
||
|
9
|
9
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.36 |
||
|
10
|
10
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
11
|
11
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
|
12
|
12
958-24060-10-00 Bolt, Flange |
958-24060-10-00 |
from US $1.28 |
||
|
13
|
13
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.42 |
||
|
14
|
14
2CR-12481-00-00 Pipe 1 |
2CR-12481-00-00 |
from US $76.26 |
||
|
15
|
15
932-10271-94-00
O-Ring
|
932-10271-94-00 |
— | ||
| replacement | |||||
|
15
|
15
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.72 |
||
|
16
|
16
90105-06127-00 Bolt, Flange |
90105-06127-00 |
from US $1.70 |
||
|
17
|
17
93210-26006-00 O-Ring |
93210-26006-00 |
from US $1.70 |
||
|
18
|
18
B67-12484-00-00 PIPE 4 |
B67-12484-00-00 |
from US $145.07 |
||
|
19
|
19
93210-26006-00 O-Ring |
93210-26006-00 |
from US $1.70 |
||
|
20
|
20
90110-06246-00 Bolt |
90110-06246-00 |
from US $1.84 |
||
| replacement | |||||
|
20
|
20
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
21
|
21
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
