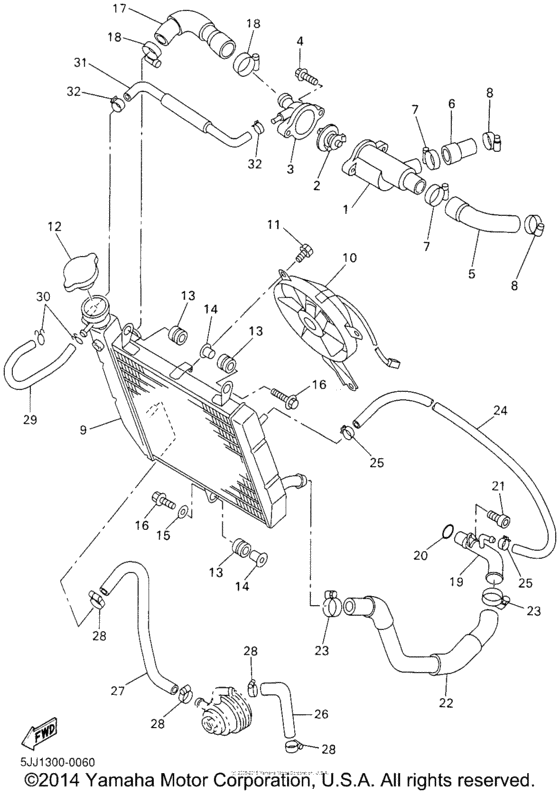

Radiator & hose Diagram Yamaha YZF-R1 R1
- Year
- 2001
- Model code
- 5JJD
- Sales region
- United States (California)
- Базовая модель
- YZFR1NC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-12417-00-00
Housing, Thermostat
|
4XV-12417-00-00 |
— | ||
|
2
|
2
4FM-12410-00-00 Thermostat Assy |
4FM-12410-00-00 |
from US $40.48 |
||
| replacement | |||||
|
2
|
2
4FM-12410-01-00 THERMOSTAT ASSY |
4FM-12410-01-00 |
from US $40.48 |
||
|
3
|
3
4XV-12413-00-00
Cover, Thermostat
|
4XV-12413-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
5
|
5
4XV-12577-00-00 Hose 2 |
4XV-12577-00-00 |
from US $19.41 |
||
|
6
|
6
4XV-12578-00-00 Hose 3 |
4XV-12578-00-00 |
from US $14.45 |
||
|
7
|
7
90450-32015-00 Hose Clamp Assy |
90450-32015-00 |
from US $4.39 |
||
|
8
|
8
904-50280-14-00
Hose Clamp Assy
|
904-50280-14-00 |
— | ||
| replacement | |||||
|
8
|
8
90450-28001-00 Hose Clamp Assy |
90450-28001-00 |
from US $4.68 |
||
|
9
|
9
5JJ-12461-00-00
Radiator Assy
|
5JJ-12461-00-00 |
— | ||
|
10
|
10
4XV-12405-00-00 Blower Assy |
4XV-12405-00-00 |
from US $345.72 |
||
|
11
|
11
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
12
|
12
4JH-12462-00-00 Cap, Radiator |
4JH-12462-00-00 |
from US $35.28 |
||
| replacement | |||||
|
12
|
12
5SL-12462-00-00 Cap, Radiator |
5SL-12462-00-00 |
from US $17.20 |
||
|
13
|
13
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.56 |
||
|
14
|
14
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
15
|
15
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
16
|
16
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
| replacement | |||||
|
16
|
16
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
17
|
17
4XV-12579-00-00 Hose 4 |
4XV-12579-00-00 |
from US $30.46 |
||
|
18
|
18
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.68 |
||
|
19
|
19
4XV-12484-00-00
Pipe 4
|
4XV-12484-00-00 |
— | ||
|
20
|
20
932-10237-87-00 O-Ring |
932-10237-87-00 |
from US $1.42 |
||
|
21
|
21
903-17060-12-00
Bolt
|
903-17060-12-00 |
— | ||
|
22
|
22
4XV-12551-00-00 Hose 7 |
4XV-12551-00-00 |
from US $54.71 |
||
|
23
|
23
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.68 |
||
|
24
|
24
4XV-1243A-00-00 Hose 1 |
4XV-1243A-00-00 |
US $26.91 |
||
|
25
|
25
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
26
|
26
5JJ-12588-00-00
Hose 5
|
5JJ-12588-00-00 |
— | ||
|
27
|
27
5JJ-12589-00-00
Hose 6
|
5JJ-12589-00-00 |
— | ||
|
28
|
28
904-50250-37-00
Hose Clamp Assy(3Et)
|
904-50250-37-00 |
— | ||
| replacement | |||||
|
28
|
28
90450-22M14-00 Hose Clamp Assy(64X) |
90450-22M14-00 |
from US $7.65 |
||
|
29
|
29
90445-09M25-00 Hose (L420) |
90445-09M25-00 |
from US $6.52 |
||
| replacements | |||||
|
29
|
29
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
29
|
29
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
30
|
30
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
31
|
31
4XV-12552-00-00
Hose 8
|
4XV-12552-00-00 |
— | ||
|
32
|
32
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
32
|
32
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
