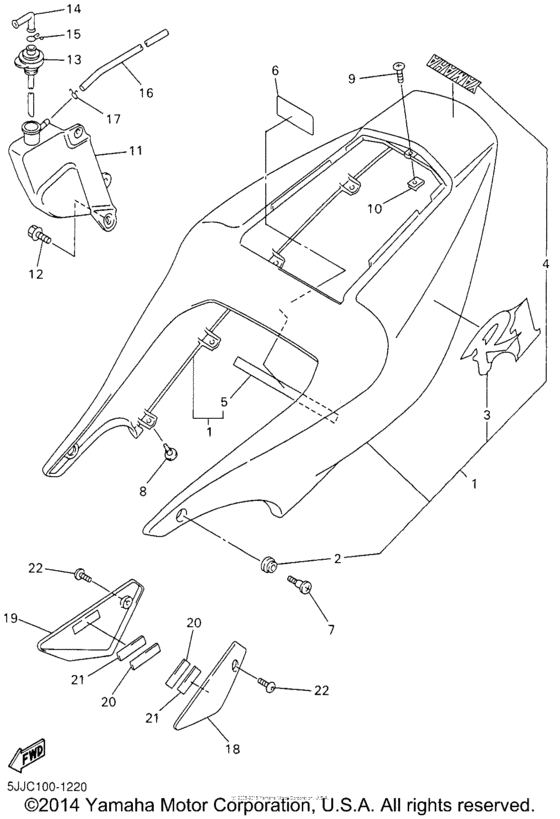

Side cover Diagram Yamaha YZF-R1 R1
- Year
- 2001
- Model code
- 5JJD
- Sales region
- United States (California)
- Базовая модель
- YZFR1NC
- Engine Capacity
- 1000
- Model
- YZF-R1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5JJ-Y2171-91-P1 Cover, Side 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5JJ-Y2171-91-P1 |
US $519.46 |
||
|
1
|
1
5JJ-Y2171-81-P0
Cover, Side 1
Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
5JJ-Y2171-81-P0 |
— | ||
|
2
|
2
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
2
|
2
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
3
|
3
4XV-21781-50-00 Emblem 1Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
4XV-21781-50-00 |
US $65.30 |
||
|
3
|
3
4XV-21781-60-00 Emblem 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4XV-21781-60-00 |
US $65.30 |
||
|
4
|
4
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
|
5
|
5
5JJ-21746-00-00
Damper
|
5JJ-21746-00-00 |
— | ||
|
6
|
6
5JJ-2179R-10-00
Plate, Epa 2(California)
2CALIFORNIA 5JJD |
5JJ-2179R-10-00 |
— | ||
|
6
|
6
5JJ-2179V-10-00
Plate, Epa 1(Non California)
1NON CALIFORNIA 5JJC |
5JJ-2179V-10-00 |
— | ||
|
7
|
7
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
8
|
8
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
9
|
9
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
10
|
10
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
11
|
11
4XV-21871-00-00 Tank, Recovery |
4XV-21871-00-00 |
from US $50.70 |
||
|
12
|
12
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
13
|
13
4XV-21875-00-00 Cap |
4XV-21875-00-00 |
from US $9.63 |
||
| replacement | |||||
|
13
|
13
1B7-21875-00-00 Cap |
1B7-21875-00-00 |
from US $9.63 |
||
|
14
|
14
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $4.04 |
||
|
15
|
15
90467-11019-00 Clip |
90467-11019-00 |
US $1.70 |
||
| replacements | |||||
|
15
|
15
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
15
|
15
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
16
|
16
90445-086J6-00 Hose (L1040) |
90445-086J6-00 |
US $16 |
||
|
17
|
17
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
18
|
18
5JJ-24129-00-00
Cover, Side 1
|
5JJ-24129-00-00 |
— | ||
|
19
|
19
5JJ-24139-00-00
Cover, Side 2
|
5JJ-24139-00-00 |
— | ||
|
20
|
20
4XV-2411G-00-00 Hook, Side CoverHook, side cover |
4XV-2411G-00-00 |
from US $6.66 |
||
|
21
|
21
4XV-2411H-00-00
Hook, Side Cover 2
|
4XV-2411H-00-00 |
— | ||
|
22
|
22
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
22
|
22
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
